14.2 Configuring the IP Routing Table
The IP Routing Table page allows you to define up to 30 static IP routing rules for the
device. These rules can be associated with a network interface (defined in the Multiple
Interface table) and therefore, the routing decision is based on the source subnet/VLAN. If
not associated with an IP interface, the static IP rule is based on destination IP address.
Traffic destined to the subnet specified in the routing rule is re-directed to the defined
gateway, reachable through the specified interface.
To configure static IP routing:
1. Open the IP Routing Table page (Configuration tab > VoIP menu > Network
submenu > IP Routing Table).

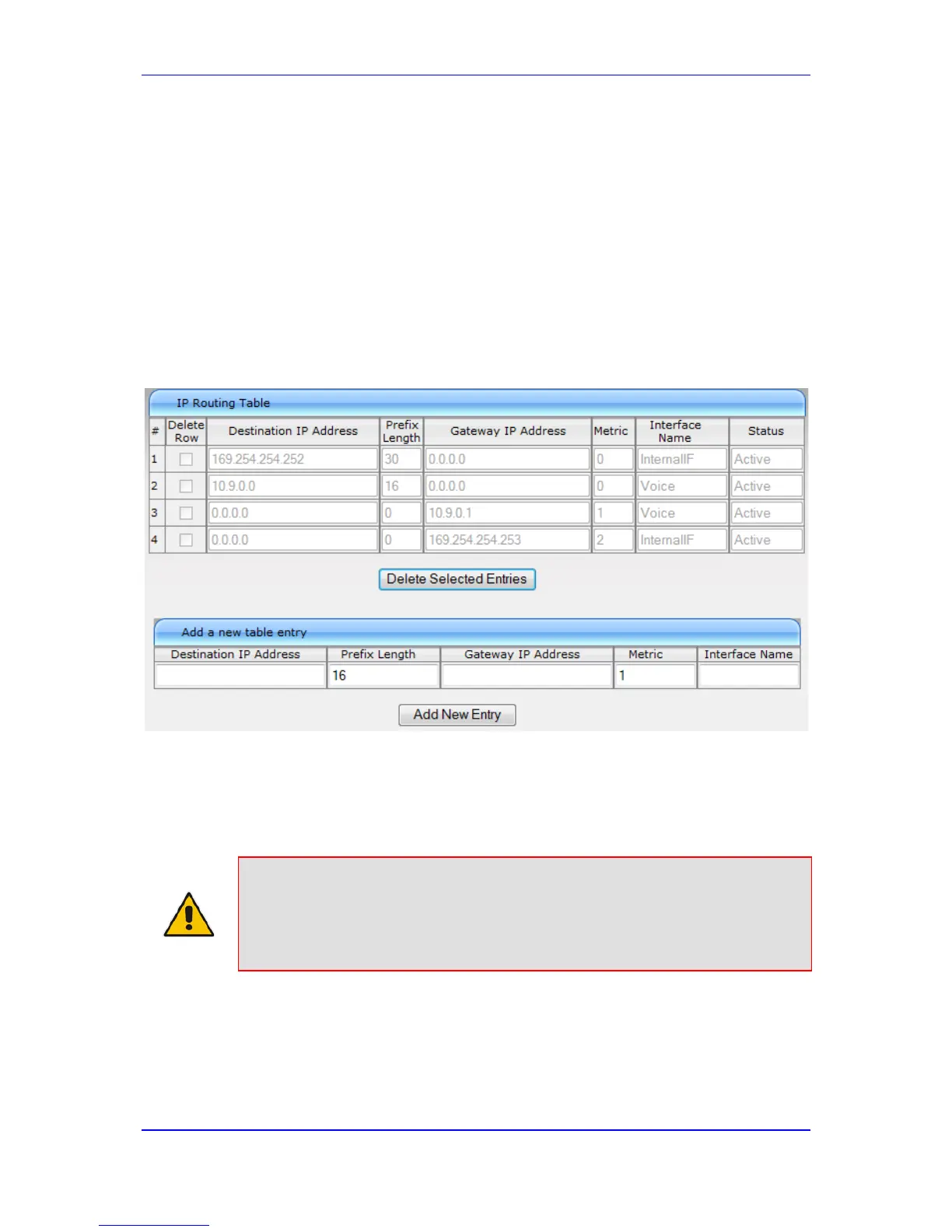

Figure 14-3: IP Routing Table Page
2. In the Add a new table entry table, add a new static routing rule according to the
parameters described in the table below.
3. Click Add New Entry; the new routing rule is added to the IP routing table.
To delete a routing rule from the table, select the 'Delete Row' check box corresponding to
the required routing rule, and then click Delete Selected Entries.
Notes:
• You can delete only inactive routing rules.
• The IP Routing table can also be configured using the table ini file
parameter, StaticRouteTable or the CLI command, configure voip/routing
static.
