The status of the channels is depicted by color-coded icons, as described in the table
below:

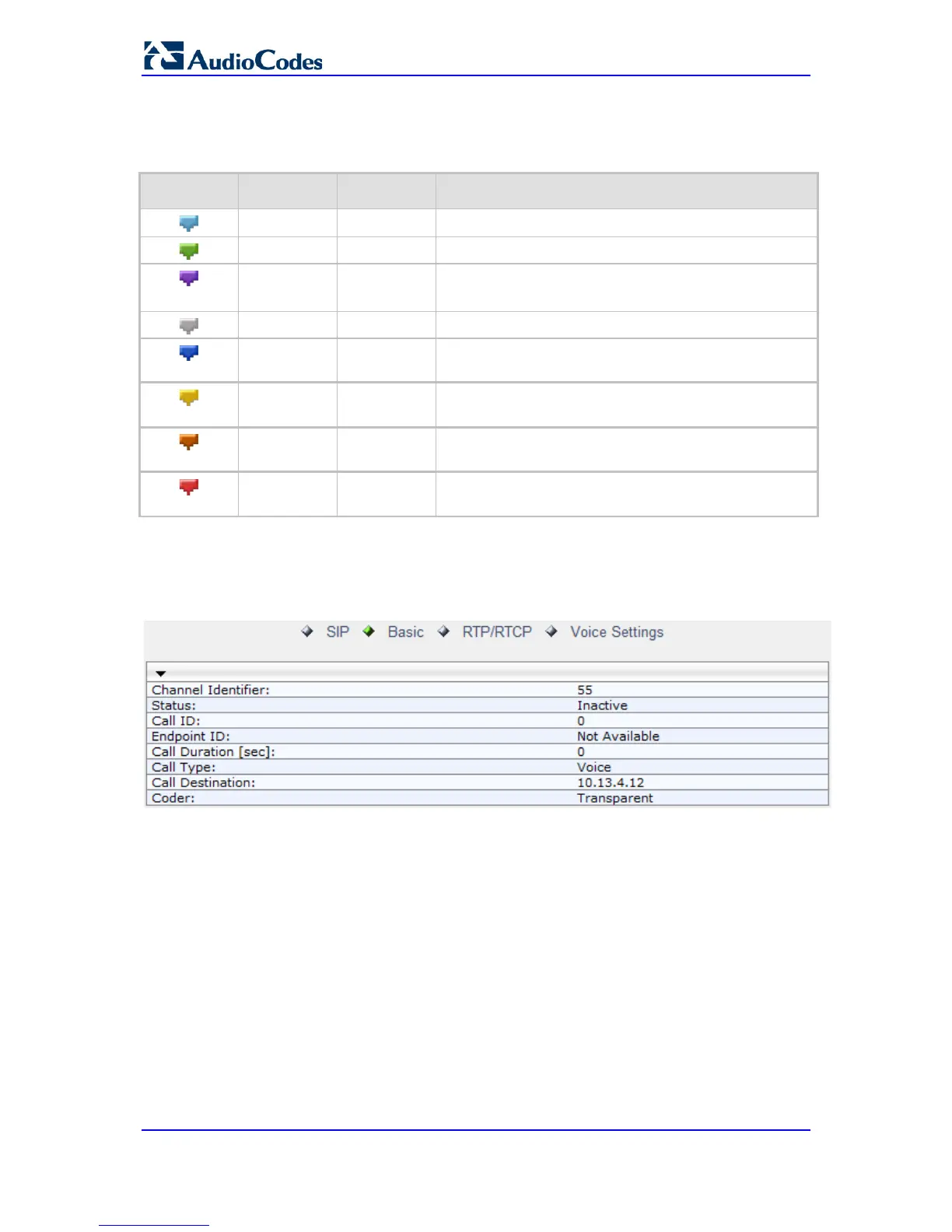

Description of Color-Coded Icons for Channel Status
Icon Color Label Description
Light blue
Inactive
Channel is configured, but currently has no calls
Green
Active
Call in progress (RTP traffic) and no alarms
Purple
SS7
Channel is configured for SS7
Note: Currently, SS7 is not supported.
Gray
Non Voice
Channel is not configured
Blue
ISDN
Signaling
Channel is configured as a D-channel
Yellow
CAS
Blocked
-
Dark Orange
Maintenance
B-channel has been intentionally taken out of service
due to maintenance
Red
Out Of
Service
B-channel is out of service
3. To view detailed information on a specific trunk's channel, click the required channel
icon; the Basic Channel Information page appears, displaying information under the
Basic tab (displayed in green):
Figure 57-2: Basic Channel Information Page
To view additional channel information, click the required tab (SIP, RTP/RTCP, and
Voice Settings).
4. To view the settings of a specific trunk, click the required trunk icon, and then from the
shortcut menu, choose Port Settings; the Trunk Settings page opens, displaying the
trunk's settings. If needed, you can modify the settings (see 'Configuring Trunk
Settings' on page 277).
57.2 Viewing Analog Port Information
The Home page allows you to view detailed information on selected FXS and FXO analog
ports such as RTP/RTCP and voice settings.
To view information on an analog port:
1. Open the Home page.
2. On the graphical display of the device, click the required analog port; a shortcut menu
