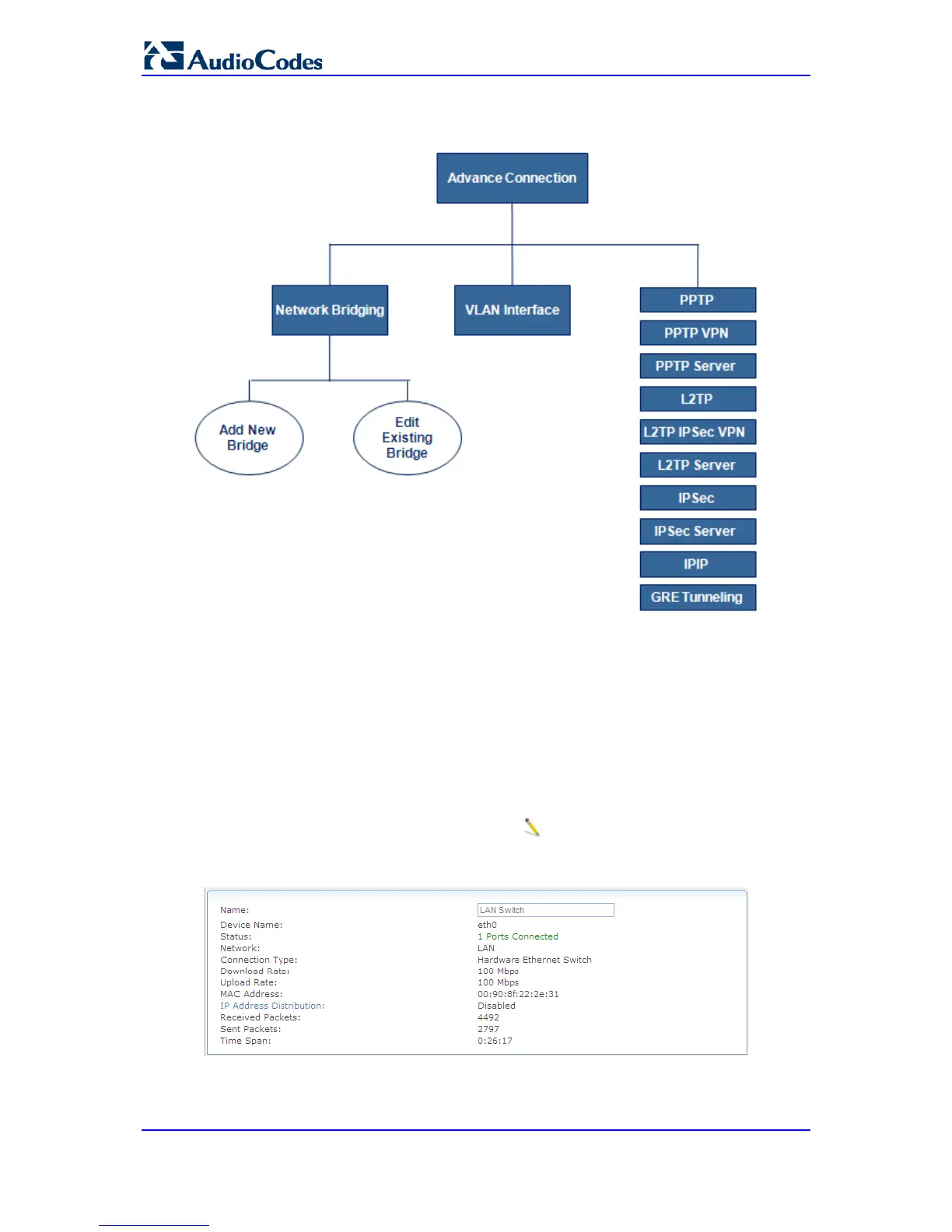

The Advanced Connection wizard tree is illustrated below:
Figure 47-7: Advanced Connection Wizard Tree
3. When the wizard completes the initial configuration (by clicking Finish), the new
connection type appears listed in the Network Connections page.
47.2 LAN Switch
The LAN Switch interface represents all the device's ports. The switch ports are physical
sockets on the device to which different cables connect. You can assign VLAN's to each
port.
To view and edit LAN switch ports:
1. In the Connections page, click the Edit icon corresponding to the LAN switch
connection; the General tab page is displayed.
Figure 47-8: General Tab - LAN Switch
2. Select the Switch tab; the displayed table lists all available ports, their status, and the
VLANs of which they are members. Untagged packets (packets with no VLAN tag)
