that arrive at a port are tagged with the VLAN number that appears under the PVID
(Port VLAN Identifier) column.

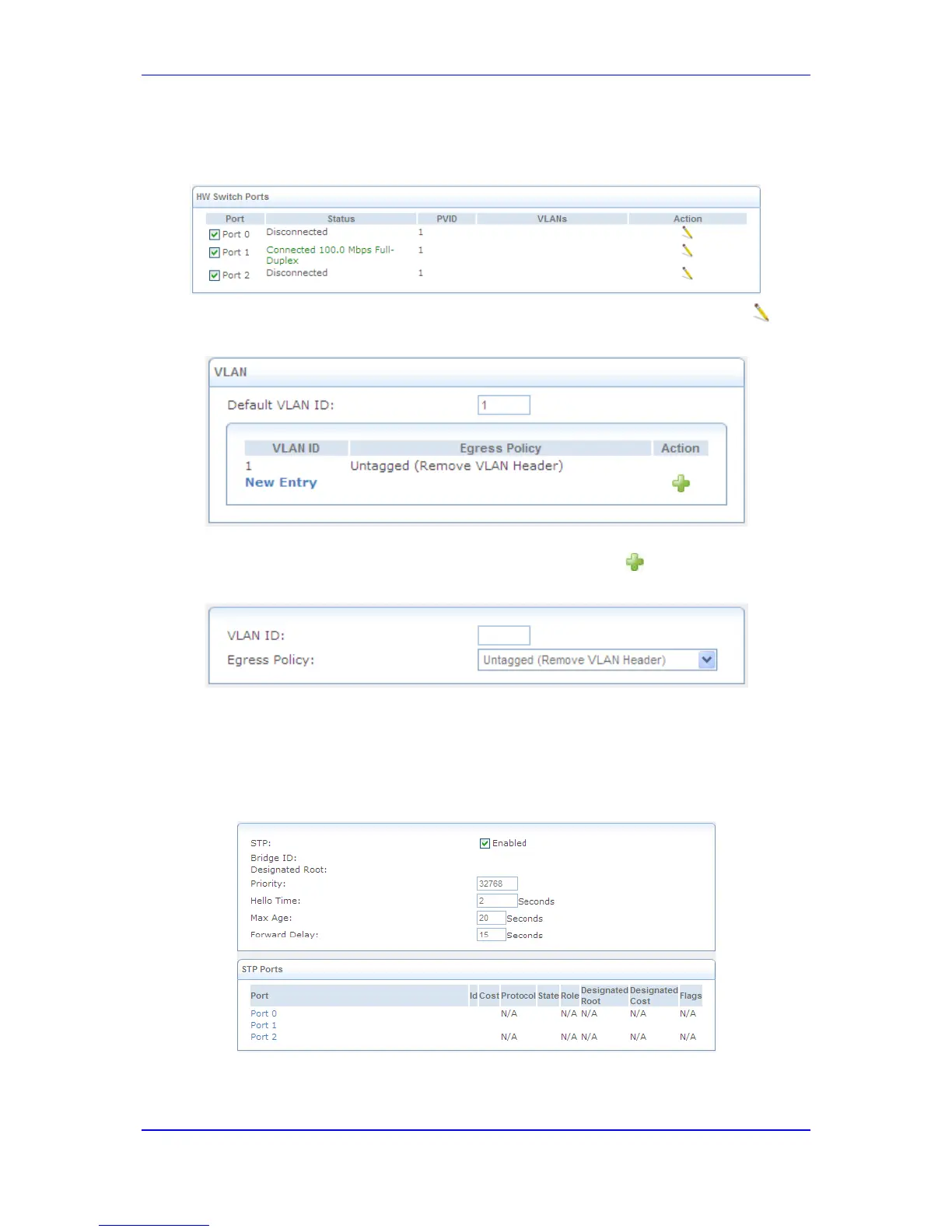

Figure 47-9: Switch Tab
You can edit the configuration of each port by clicking the corresponding Edit icon.
Figure 47-10: Assigning VLAN to Port
a. In the 'Default VLAN ID' field, enter the port's VLAN identifier. You may add
additional identifiers to the VLAN by clicking the New icon.
Figure 47-11: Defining VLANs
b. In the 'VLAN ID' field, enter the new VLAN ID.
c. From the 'Egress Policy' drop-down list, select whether or not to tag incoming
packets with the port's VLAN header.
d. Click OK.
3. Select the STP tab.
Figure 47-12: STP Tab
