To view Quality of Experience:
1. Open the Quality Of Experience page (Status & Diagnostics tab > Performance
Monitoring menu > Quality Of Experience).

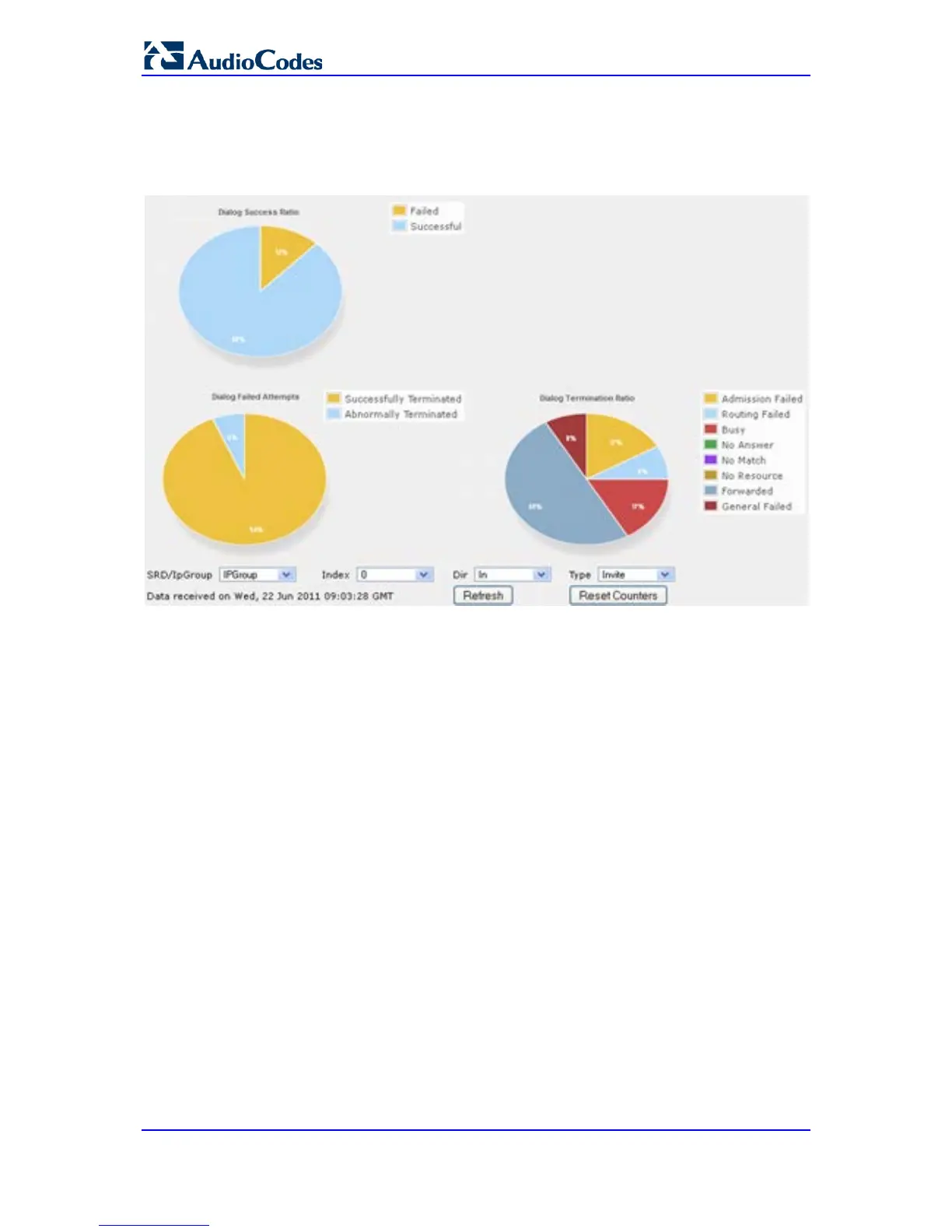

Figure 56-3: Quality Of Experience Graph
2. From the 'SRD/IpGroup' drop-down list, select whether you want to view QoE for an
SRD or IP Group.
3. From the 'Index' drop-down list, select the SRD or IP Group index.
4. From the 'Dir' drop-down list, select the call direction:
• In - incoming calls
• Out - outgoing calls
• Both - incoming and outgoing calls
5. From the 'Type' drop-down list, select the SIP message type:
• Invite - INVITE
• Subscribe - SUBSCRIBE
• Other - all SIP messages
To refresh the charts, click Refresh. To reset the counters, click Reset Counters.
56.4 Viewing Average Call Duration
The Average Call Duration page displays information about a specific SRD or IP Group.
This page includes two graphs:
