IP address and FQDN (if exists) of the Proxy server with which the
device currently operates.
State
 N/A = Proxy server isn't defined.
 OK = Communication with the Proxy server is in order.
 Fail = No response from any of the defined Proxies.
57.10 Viewing IP Connectivity
The IP Connectivity page displays on-line, read-only network diagnostic connectivity
information on all destination IP addresses configured in the Outbound IP Routing Table
page (see 'Configuring Outbound IP Routing Table' on page 327).
Note: The information in columns 'Quality Status' and 'Quality Info' (per IP address)
is reset if two minutes elapse without a call to that destination.
 To view IP connectivity information:
1. In the Routing General Parameters page, set the 'Enable Alt Routing Tel to IP'
parameter (AltRoutingTel2IPMode) to Enable or Status Only (see 'Configuring
General Routing Parameters' on page 327).
2. Open the IP Connectivity page (Status & Diagnostics tab > VoIP Status menu > IP
Connectivity).

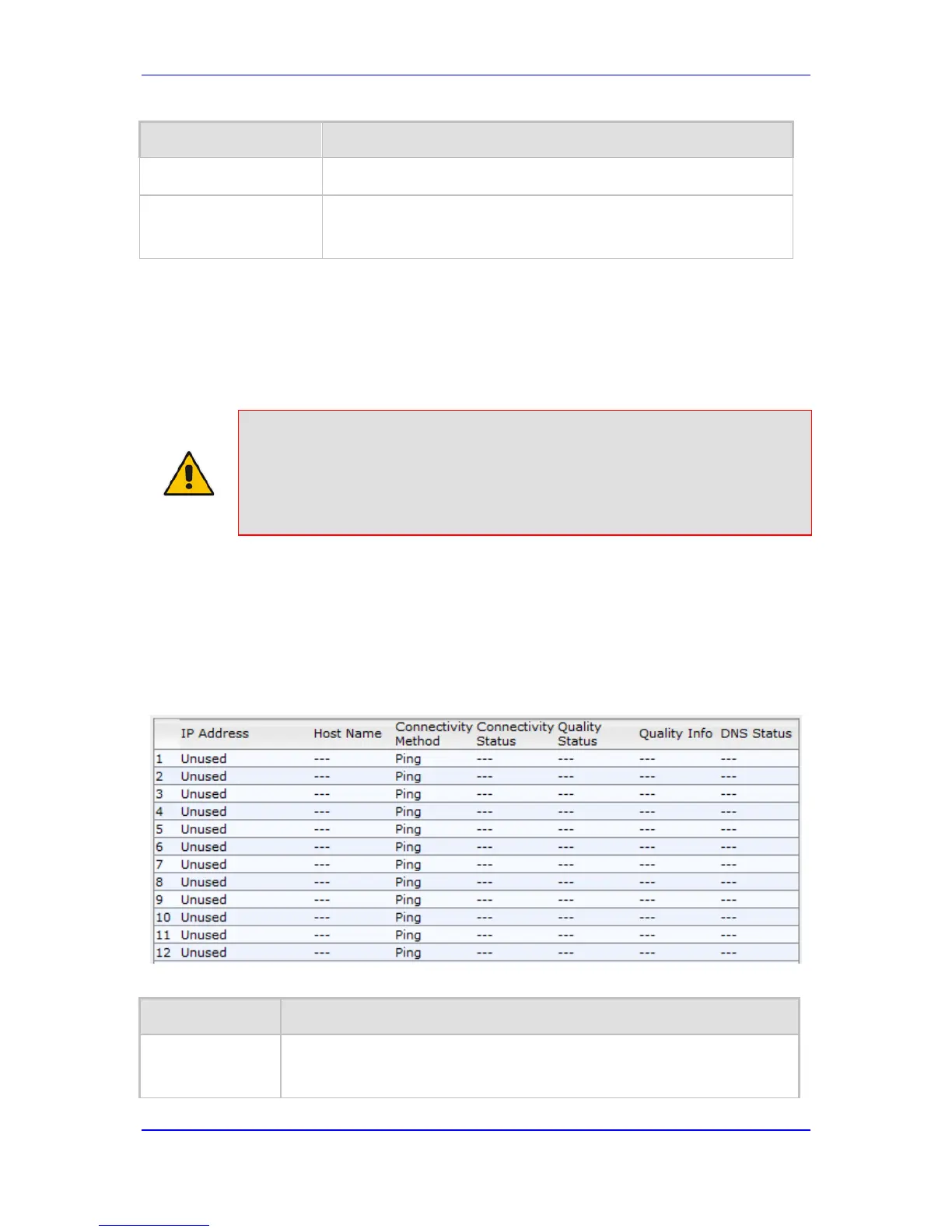

Figure 57-9: IP Connectivity Page
IP Connectivity Parameters
Column Name Description
IP Address
The IP address can be one of the following:
 IP address defined as the destination IP address in the Outbound IP
Routing Table.
