Version 6.6 587 Mediant 800 MSBR

User's Manual 47. Configuring Network Connections

• For manually configuring a new connection:

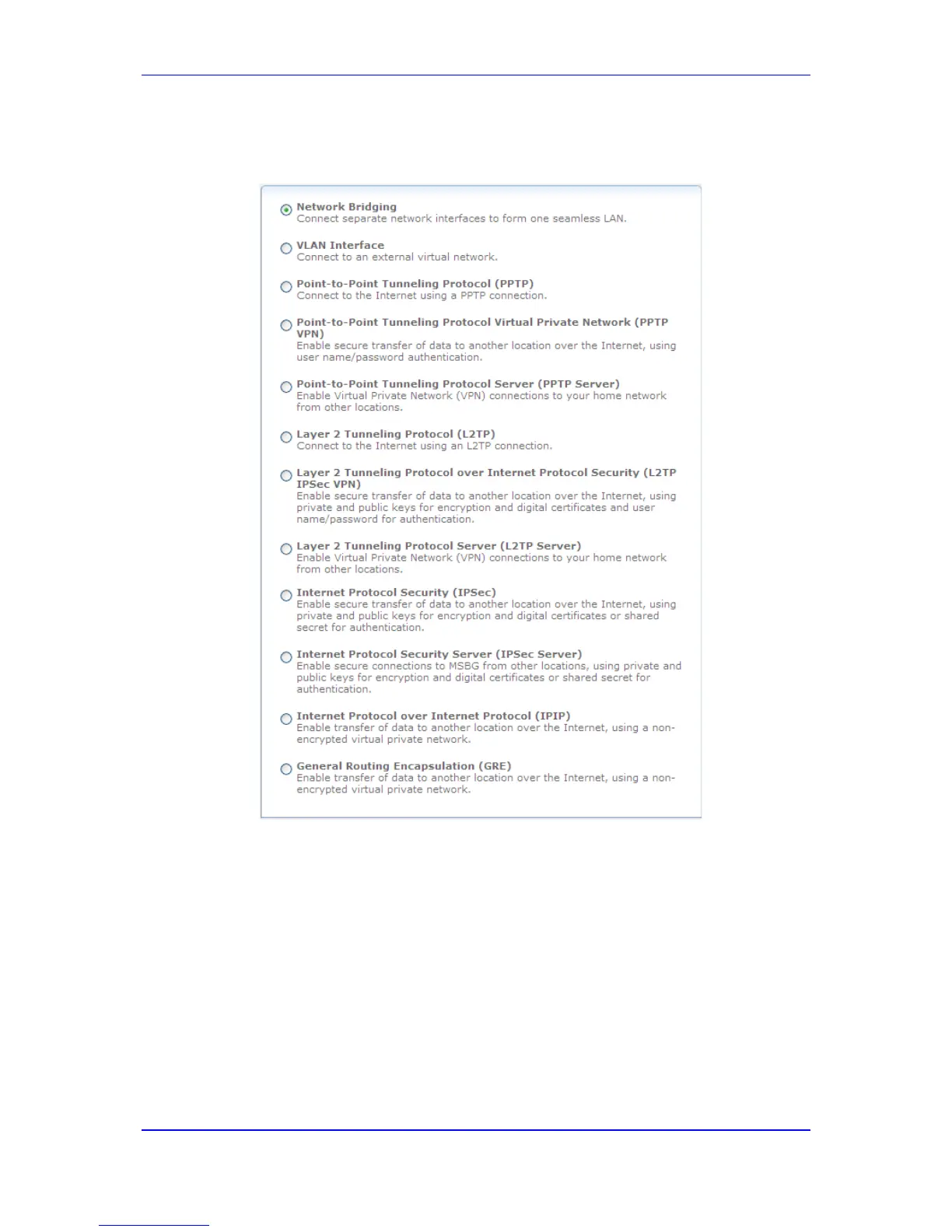

a. Select the Advanced Connection option, and then click Next; the following

wizard page appears:

b. Select the required connection type, click Next, and then follow the

instructions provided by the wizard.
