Version 6.6 39 Mediant 800 MSBR

User's Manual 3. Assigning Data-Router LAN and WAN IP Addresses

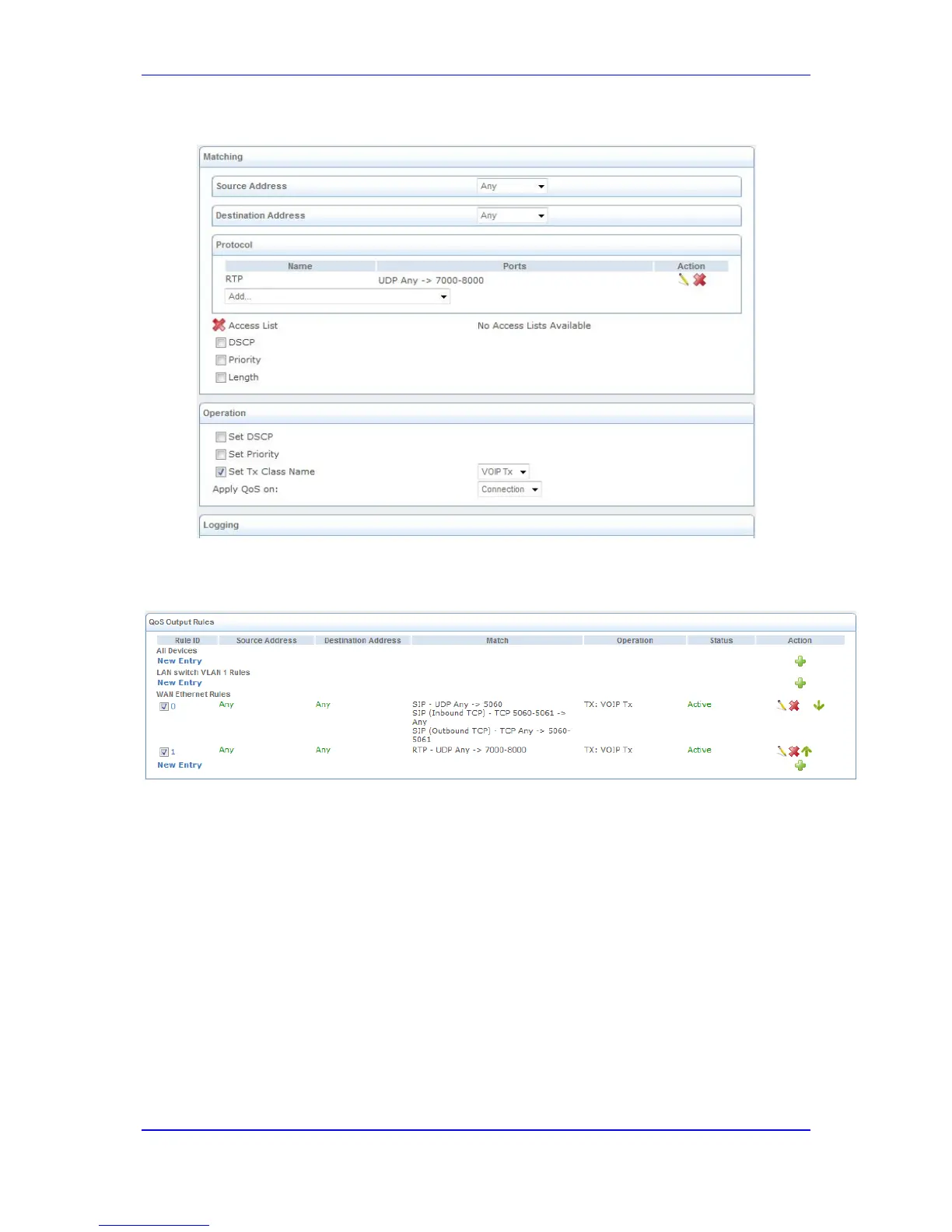

Figure 3-19: Matching Rule for Received RTP Traffic

The final traffic matching rule configuration for WAN Tx RTP and SIP signaling is shown

below.

Figure 3-20: Traffic Matching Rule for WAN Tx/Rx RTP and SIP Signaling
