To configure distinctive ringing and call waiting per FXS port:
1. Open the Tone Index Table page (Configuration tab > VoIP menu > GW and IP to IP
> Analog Gateway > Tone Index).
2. Click the Add button; the following dialog box appears:

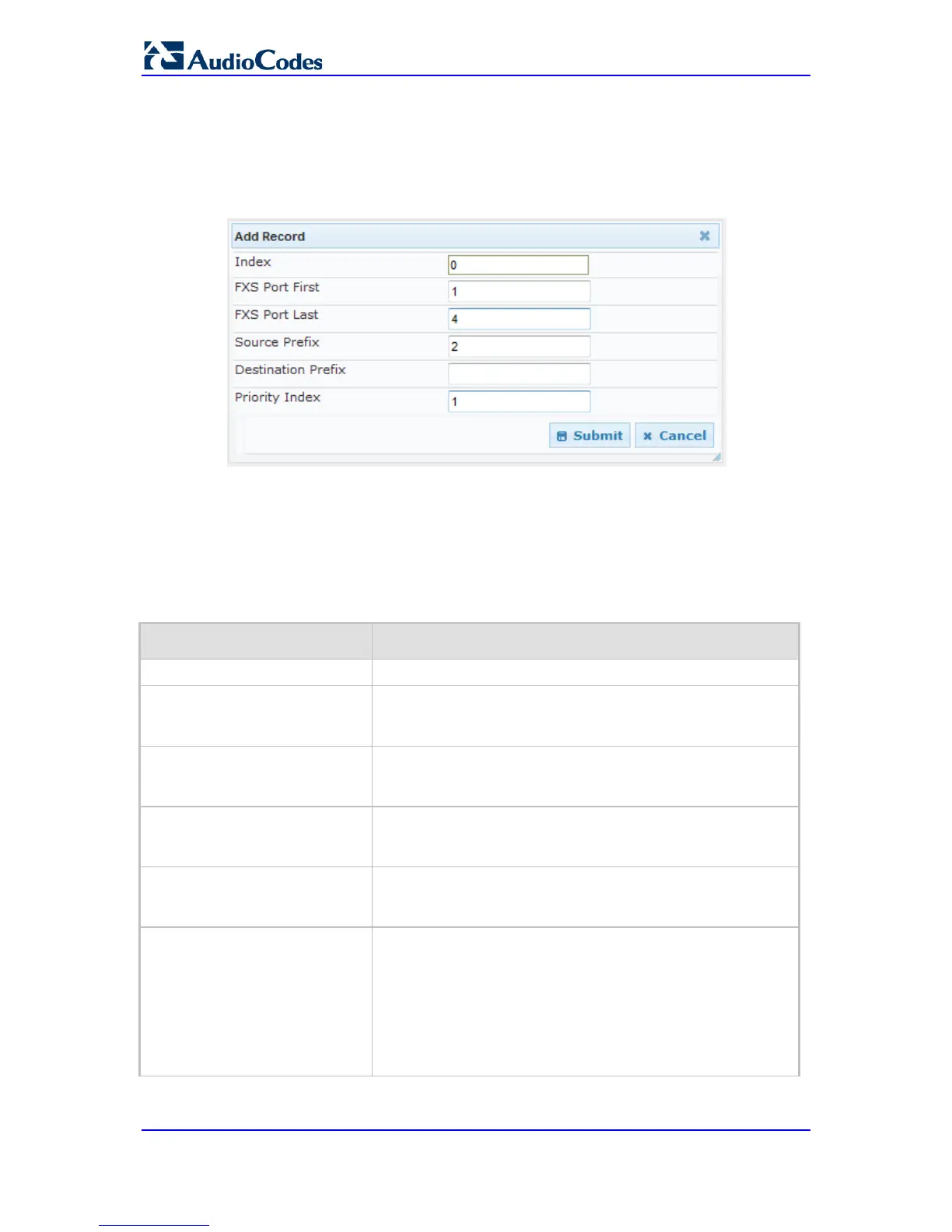

Figure 29-11: Tone Index Table Page
The figure above shows a configuration example for using distinctive ringing and call
waiting tones of Index #9 ('Priority Index' 1) in the CPT file for FXS endpoints 1 to 4
when a call is received from a source number with prefix 2.
3. Configure the table as required. For a description of the parameters, see the table
below.
4. Click Submit to apply your changes.
Tone index Table Parameter Description
Parameter Description
Index Defines the table index entry. Up to 50 entries can be defined.
FXS Port First
CLI: fxs-port-first
[ToneIndex_FXSPort_First]
Defines the first port in the FXS port range.
FXS Port Last
CLI: fxs-port-last
[ToneIndex_FXSPort_Last]
Defines the last port in the FXS port range.
Source Prefix
CLI: src-prefix
[ToneIndex_SourcePrefix]
Defines the prefix of the calling number.
Destination Prefix
CLI: dst-prefix
[ToneIndex_DestinationPrefix]
Defines the prefix of the called number.
Priority Index
CLI: priority
[ToneIndex_PriorityIndex]
Defines the index of the distinctive ringing and call waiting
tones. The call waiting tone index equals to the Priority Index
plus the value of the FirstCallWaitingToneID parameter. For
example, if you want to use the call waiting tone in the CPT file
at Index #9, you need to enter "1" as the Priority Index value
and set the FirstCallWaitingToneID parameter to "8". The
summation of these values is 9, i.e., index #9.
The default is 0.
