Most of the tables in the Web interface are designed in the enhanced table format. The
figure below displays a typical table in the enhanced design format and the subsequent
table describes its command buttons and areas.

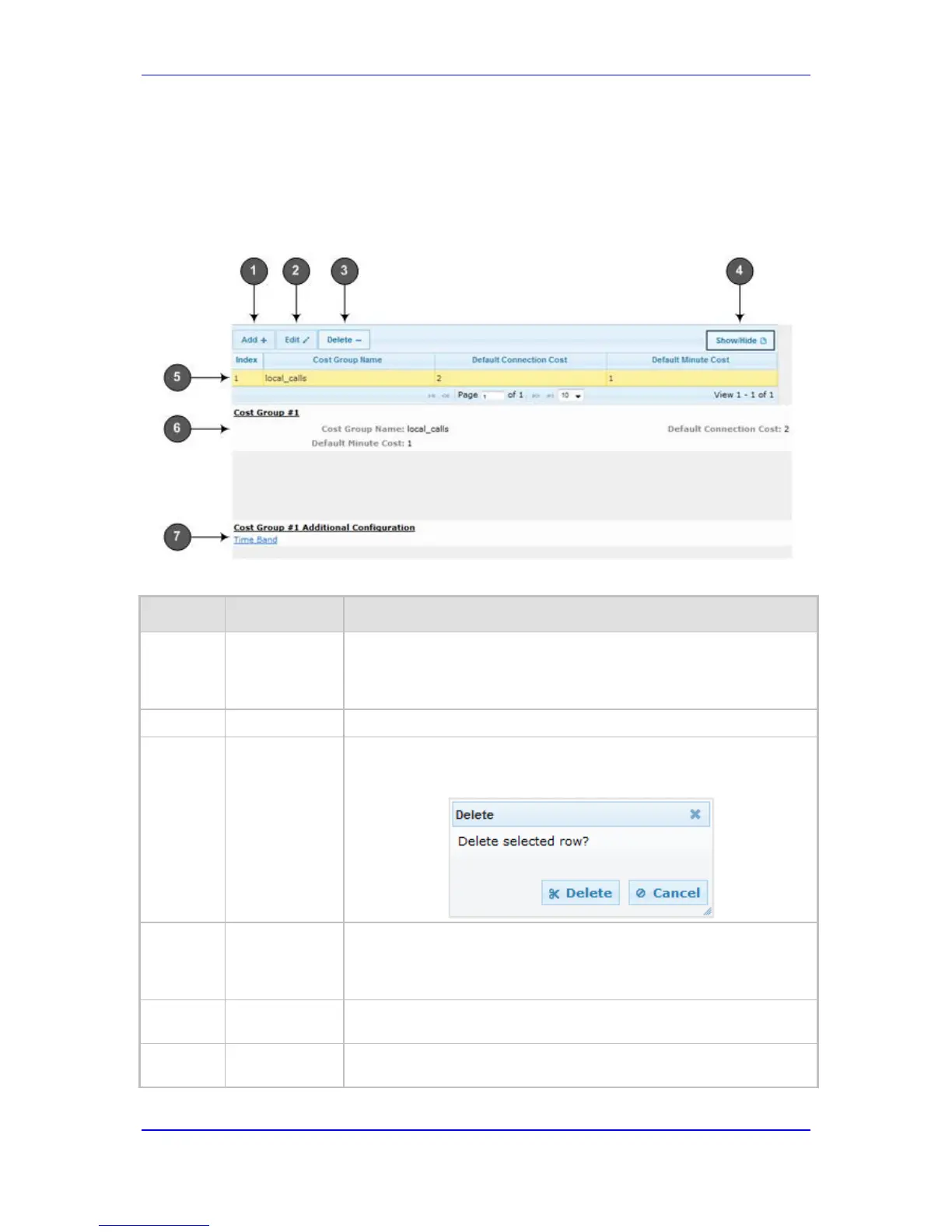

Figure 5-12: Displayed Details Pane
Enhanced Table Design Description
Item # Button
1 Add
Adds a new index entry row to the table. When you click this button, a
dialog box appears with parameters for configuring the new entry.
When you have completed configuration, click the Submit button in the
dialog box to add it to the table.
2 Edit
Edits the selected row.
3 Delete
Removes the selected row from the table. When you click this button, a
confirmation box appears requesting you to confirm deletion. Click
Delete to accept deletion.
4 Show/Hide
Toggles between displaying and hiding the full configuration of a
selected row. This configuration is displayed below the table (see Item
#6) and is useful for large tables that cannot display all its columns in
the work pane.
5
- Selected index row entry for editing, deleting and showing
configuration.
6
- Displays the full configuration of the selected row when you click the
Show/Hide button.
