♦ Destination Address: "10.30.40.01"
♦ Call Party: Caller
♦ Test Mode: Once (default)
Alternatively, if you want to route the test call using the Outbound IP Routing table for
the Gateway / IP-to-IP application, configure the following:
• Test Call table configuration:
♦ Endpoint URI: 101@10.0.0.1
♦ Route By: GW Tel2IP
♦ Called URI: 201@10.30.40.1
♦ Call Party: Caller
• Outbound IP Routing table configuration:
♦ Dest. Phone Prefix: 201 (i.e., the Called URI user-part)
♦ Source Phone Prefix: 101 (i.e., the Endpoint URI user-part)
♦ Dest. IP Address: 10.30.40.1
Batch Test Call Scenario: This example describes the configuration of a batch test
call setup for scheduled and continuous call testing of multiple endpoints. The test call
is done between two AudioCodes devices - Device A and Device B - with simulated
test endpoints. This eliminates the need for phone users, who would otherwise need
to answer and end calls many times for batch testing. The calls are initiated from
Device A, where Device B serves as the remote answering endpoint.

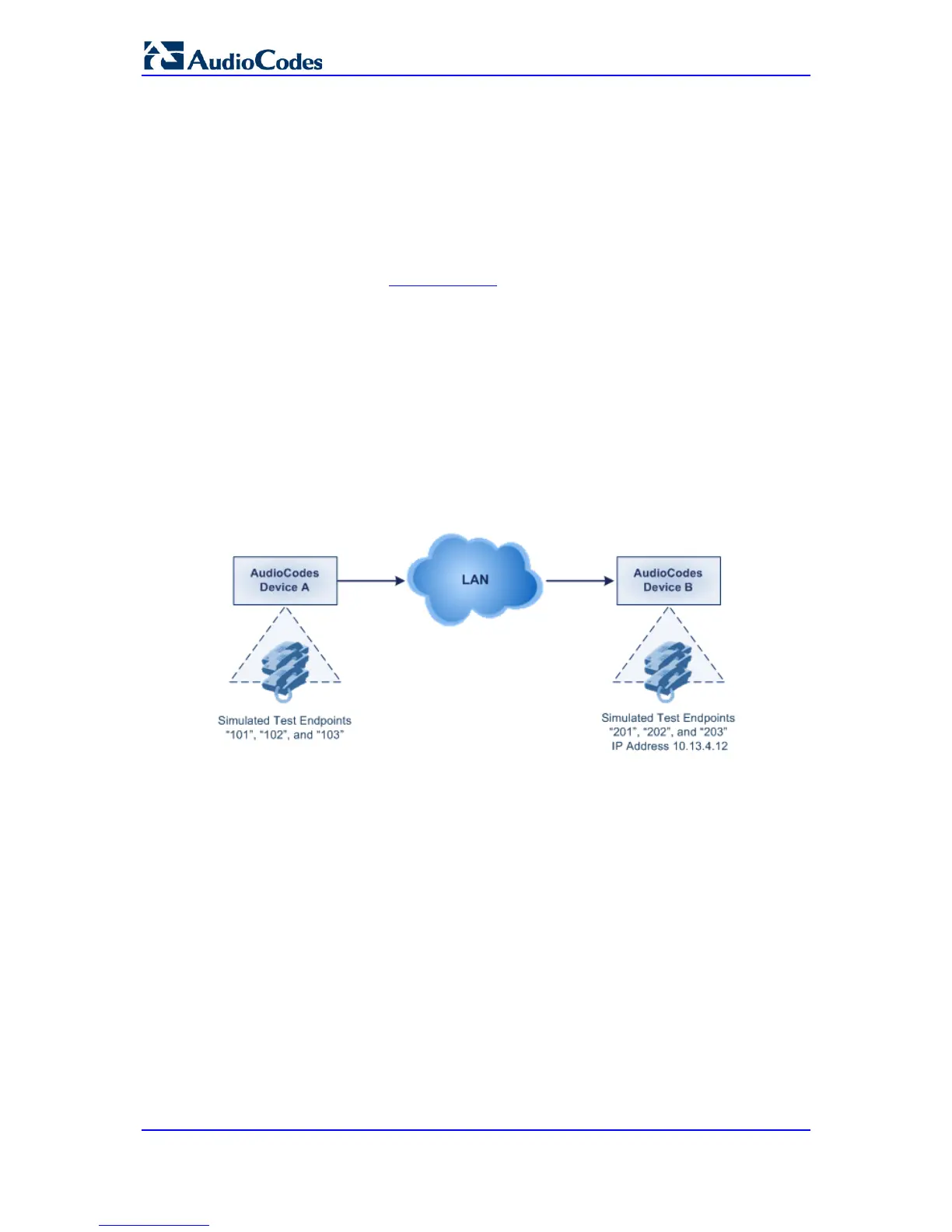

Figure 63-9: Batch Test Call Example
• Test Call table configuration at Device A:
♦ Endpoint URI: "101"
♦ Called URI: "201"
♦ Route By: Dest Address
♦ Destination Address: "10.13.4.12"
♦ Call Party: Caller
♦ Maximum Channels for Session: "3" (this setting configures three endpoints -
"101", "102" and "103)
♦ Call Duration: "5" (seconds)
♦ Calls per Sec: "1"
♦ Test Mode: Continuous
♦ Test Duration: "3" (minutes)
♦ Schedule Interval: "180" (minutes)
