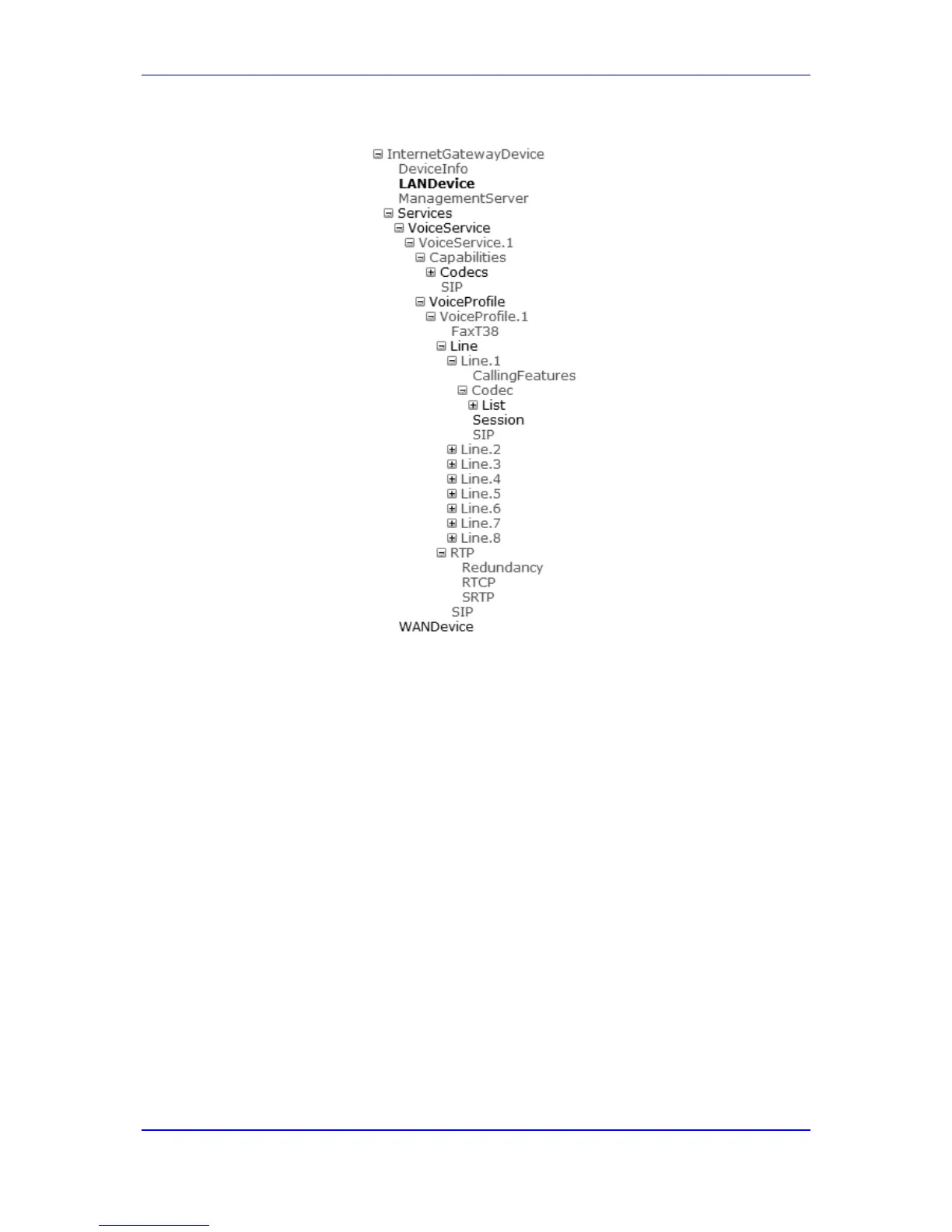

Figure 9-4: Hierarchical Tree Structure of TR-104 Objects

InternetGatewayDevice.Services.VoiceService: Top-level object.

InternetGatewayDevice.Services.VoiceService.1.Capabilities: (Read-Only) Displays
the overall capabilities of the device.
• InternetGatewayDevice.Services.VoiceService.1.Capabilities.Codecs: (Read-
Only) Lists supported codecs (according to devices installed Software Feature
Key).
• InternetGatewayDevice.Services.VoiceService.1.Capabilities.SIP: (Read-Only)
Displays various SIP settings such as SIP transport type.

InternetGatewayDevice.Services.VoiceService.1.VoiceProfile.1: Corresponds to one
or more FXS lines that share the same basic configuration:
• InternetGatewayDevice.Services.VoiceService.1.VoiceProfile.1.FaxT38:
Configures fax T.38 relay.
• InternetGatewayDevice.Services.VoiceService.1.VoiceProfile.1.Line:
Corresponds to an FXS line (as configured in the Trunk Group table). It enables
and configures each FXS line (number).
♦ InternetGatewayDevice.Services.VoiceService.1.VoiceProfile.1.Line.{i}.Code
c.List.{i}: Configures voice coder used by specific FXS line.
♦ InternetGatewayDevice.Services.VoiceService.1.VoiceProfile.1.Line.{i}.Callin
gFeatures: Configures voice parameters per FXS line such as caller ID.
♦ InternetGatewayDevice.Services.VoiceService.1.VoiceProfile.1.Line.{i}.SIP:
Configures username/password per FXS line. AudioCodes maps this object
to the corresponding entry in the Authentication table
