128
Nyquist C4000 User Guide
Manually Controlling Output Contacts
If you are using the Nyquist I/O Controller to recognize third-party contact closures, you can manually
control output contacts.
Prerequisites for using manual controls are (1) adding an I/O Controller as a station and (2) configuring
a controller rule for at least one output contact with the Action set as Manual.
To manually control an output contact:
1 If not already on your dashboard, select Dashboard from the navigation bar.
2 In the Output Contact Control section, select the desired contact.
Note: If you have set up a rule with a duration of zero (0), then selecting the contact displays two but-
tons—one for opening and one for closing the circuit. If duration is set to a number other than zero (0),
you can only close the circuit.
3 Select the button for the action that you want. The button labels are set in the rule for the output
contact.
Tone Identifies the name of the tone used for this event.
Scheduled Audio Identifies a playlist, Matrix Mixer Pre-Amp channel, amplifier, or Airable/
SoundMachine source to use if the Scheduled Audio feature is used for
this event. Otherwise, the option appears as None.

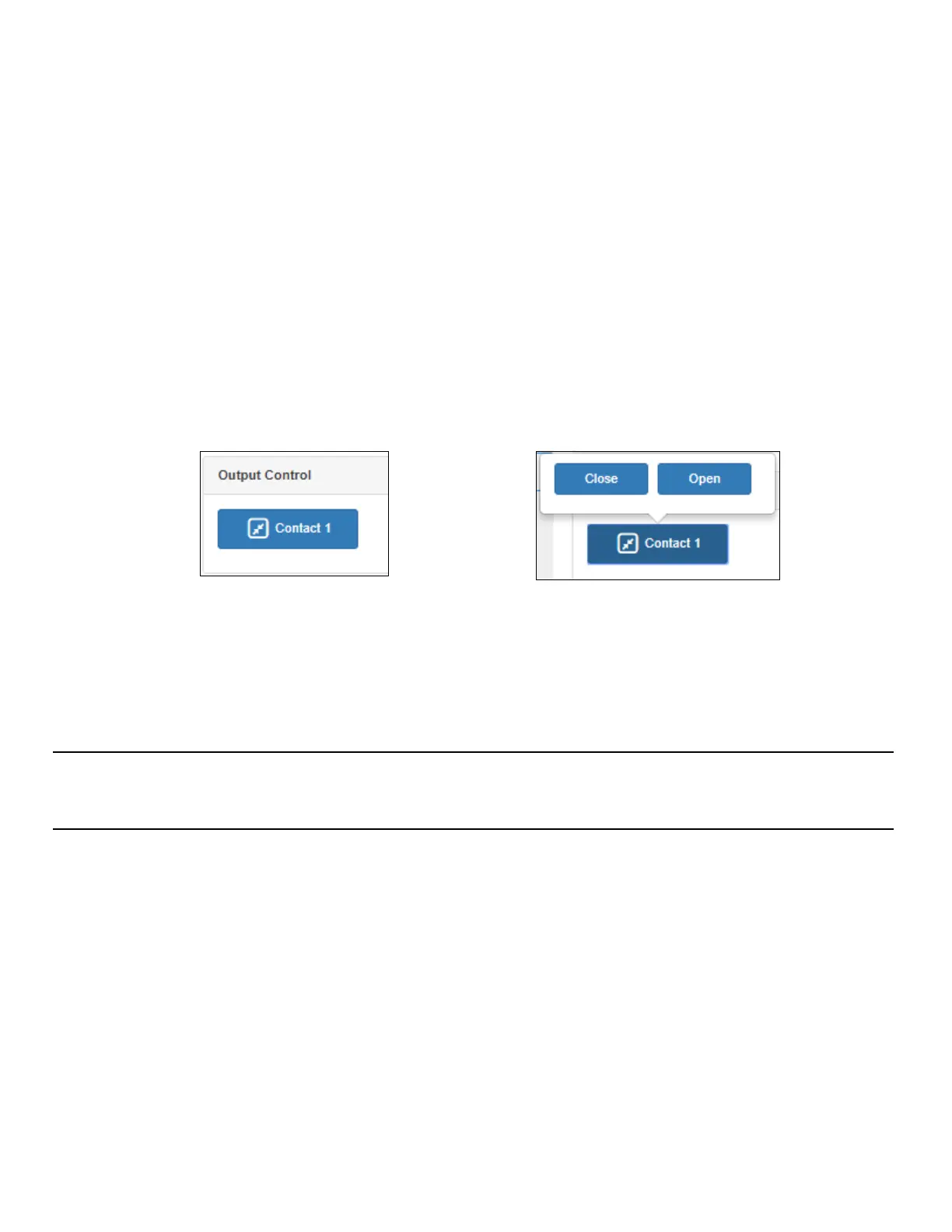

Figure 104. Output Control Section Figure 105. Manual Control Buttons
Table 29. Schedule Popup Window Parameters (Continued)
