54
Nyquist C4
000 User Guide
Uploading T
ones

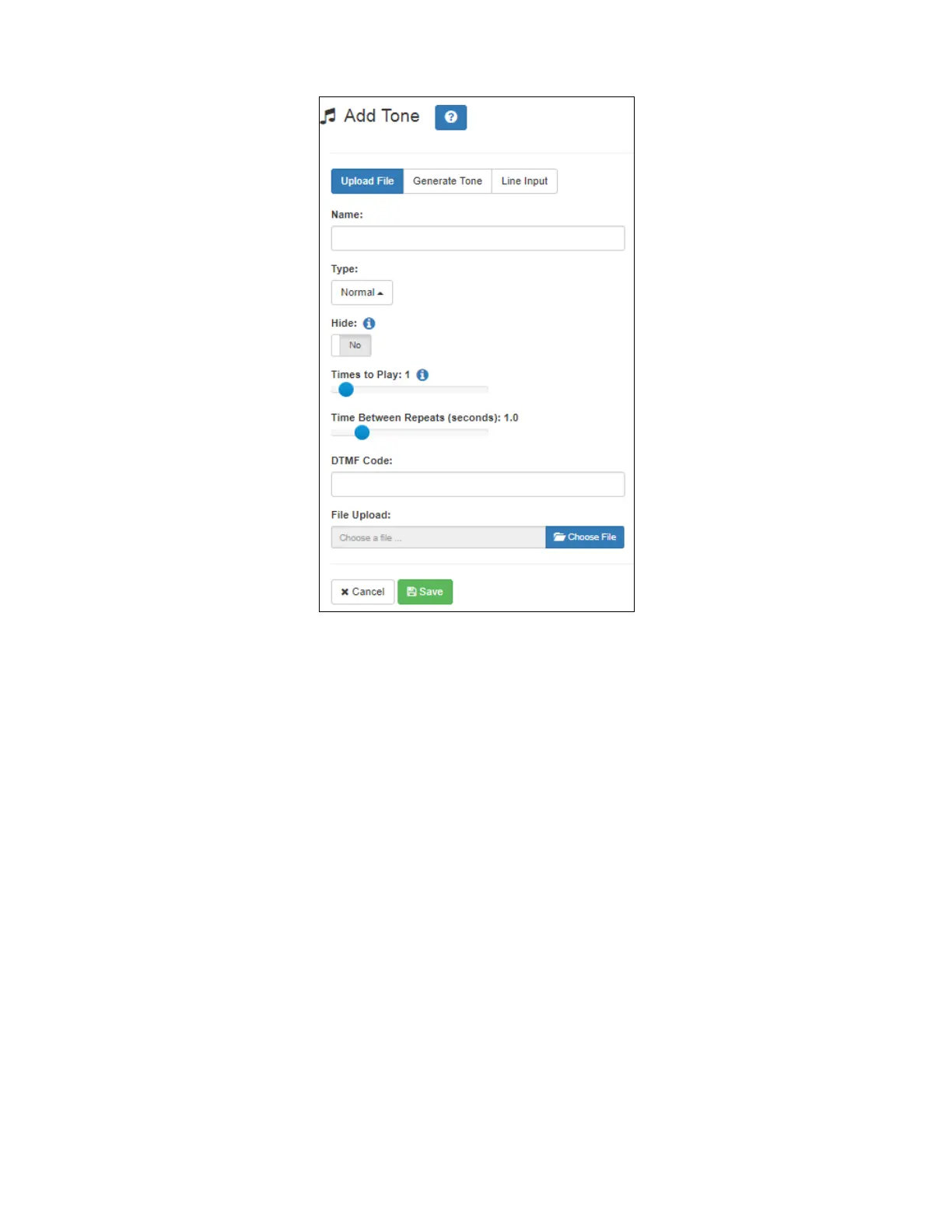

Figure 45. Add T
on
e – Uplo
ad File
To upload a tone:
1
On the navigation bar, expand
Audio
.
2
Select
T
ones
.
3
On the T
o
nes page, select the
Add
icon.
4
On the Add T
one page, ensure
Uplo
ad
File
is selected.
5
Complete the parameters (see
Table
16
).
6
Select
Save
.
62
64
