Nyquist C4000 User Guide

Managing Line-Input Sources

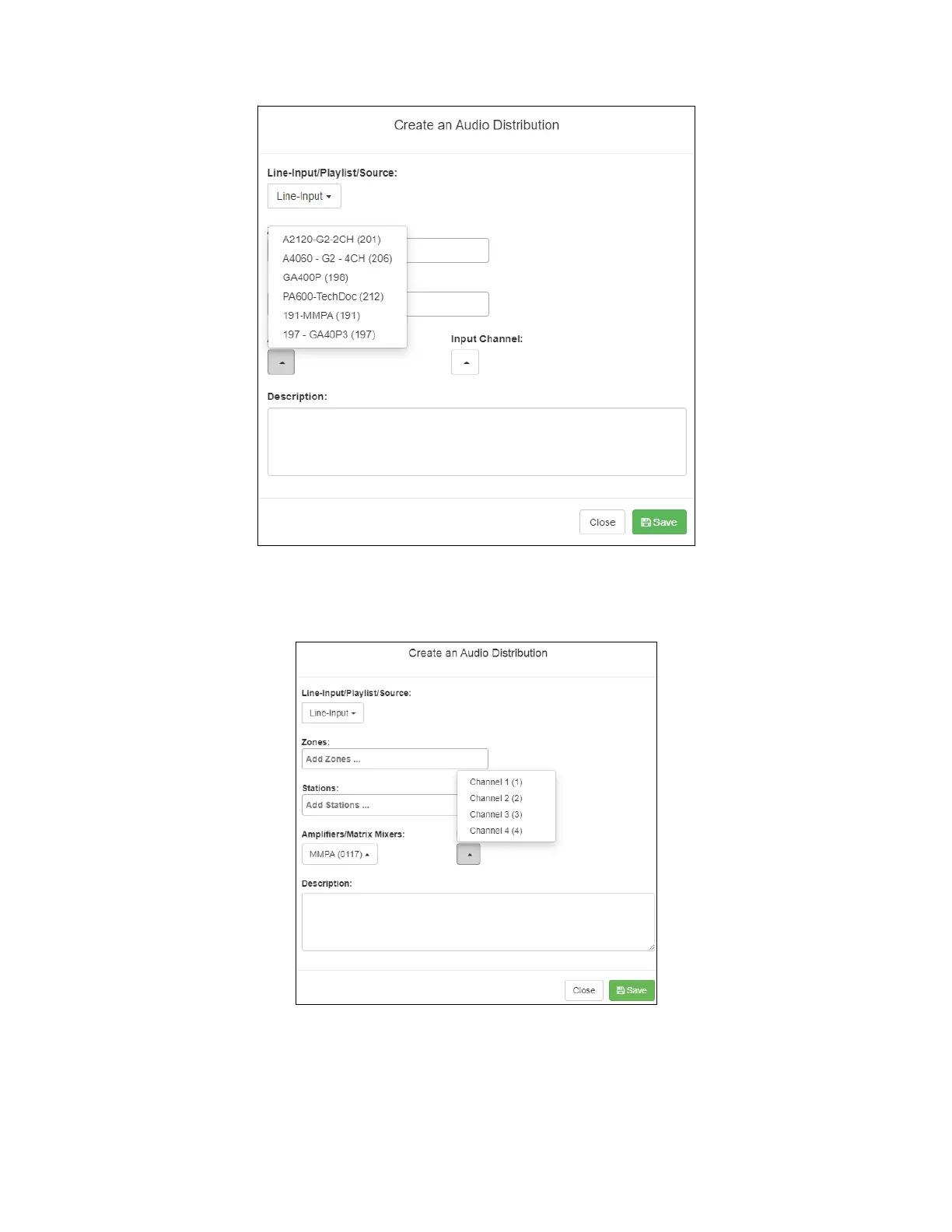

Figure 9. Line-Input Sources

If your Nyquist system uses two-channel or four-channel audio power amplifiers or MMPAs, these sta-

tions will appear as sources for Line-Input when creating Audio Distribution.

Figure 10. Available Channels for an MMPA

The available Line Input/Playlist/Source selections include all device inputs for all amplifiers on your

Nyquist network, as well as all configured Playlists and Internet Radio Services sources.
