To Next Page

To Previous Page

3-64

Confidential

(2) Disconnect all harnesses and flat cables from the main PCB ASSY.

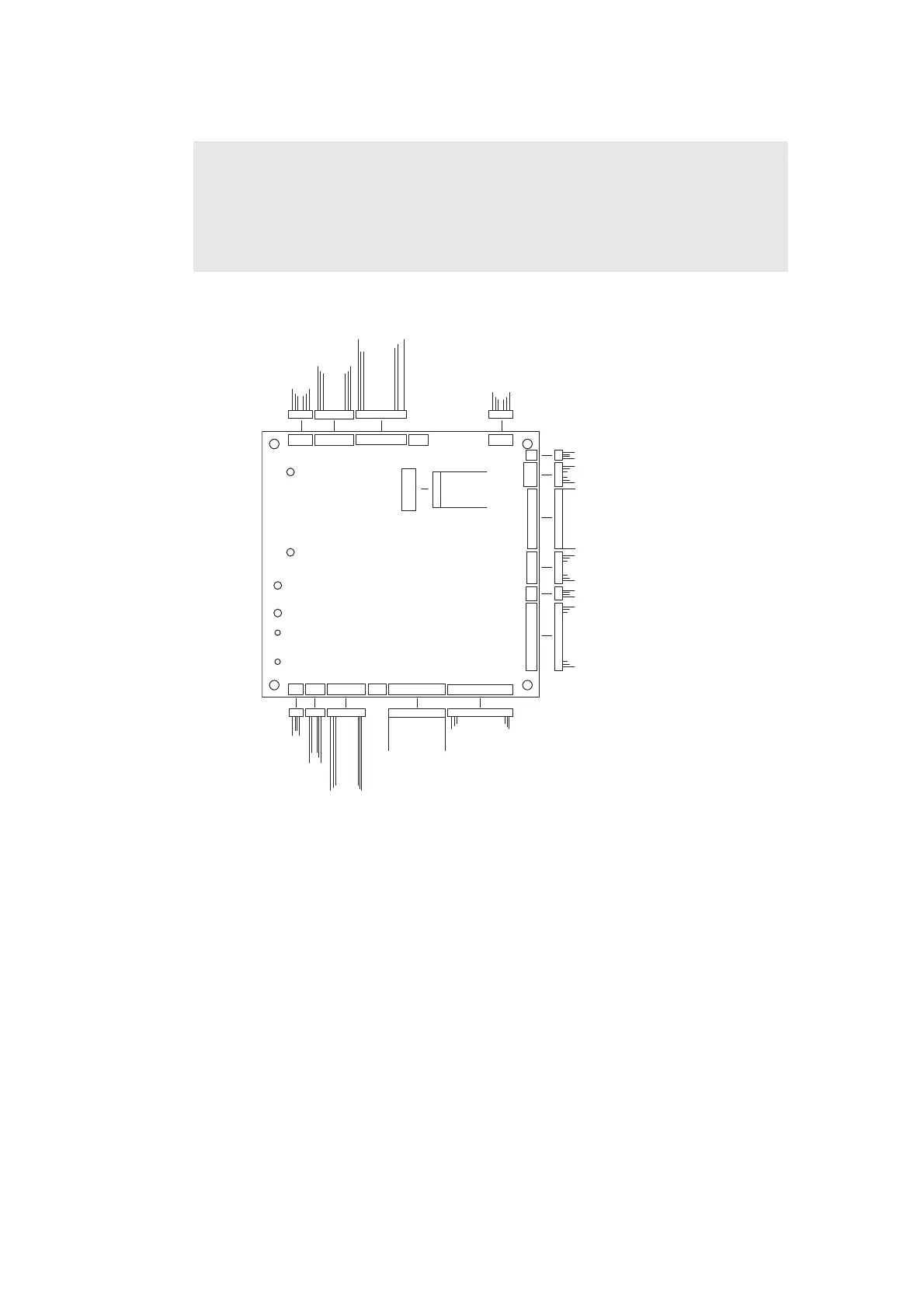

Fig. 3-51

Note:

• After disconnecting flat cables, check that each cable is not damaged at its end or

shortcircuited.

• When connecting flat cables, do not insert them at an angle. After insertion, check

that the cable is not at an angle.

Eject motor harness

Relay front harness

Toner amount detection sensor PCB harness (light emission)

Internal temperature sensor harness

Paper empty sensor harness

Laser unit flat cable

Low-voltage power supply harness

Paper feed motor harness

HVPS flat cable

LT/TT connector harness

External temperature/humidity

sensor harness

Back cover/duplex

tray sensor harness

MX connector harness

Erase lamp harness

Eject sensor harness

Touch panel models only

Models with 520-sheet T1 only

Models with 520-sheet T1 and

HL-5580D/5585D only

Panel flat cable

Default Chapter4
- Table of Contents4
