3-169

Confidential

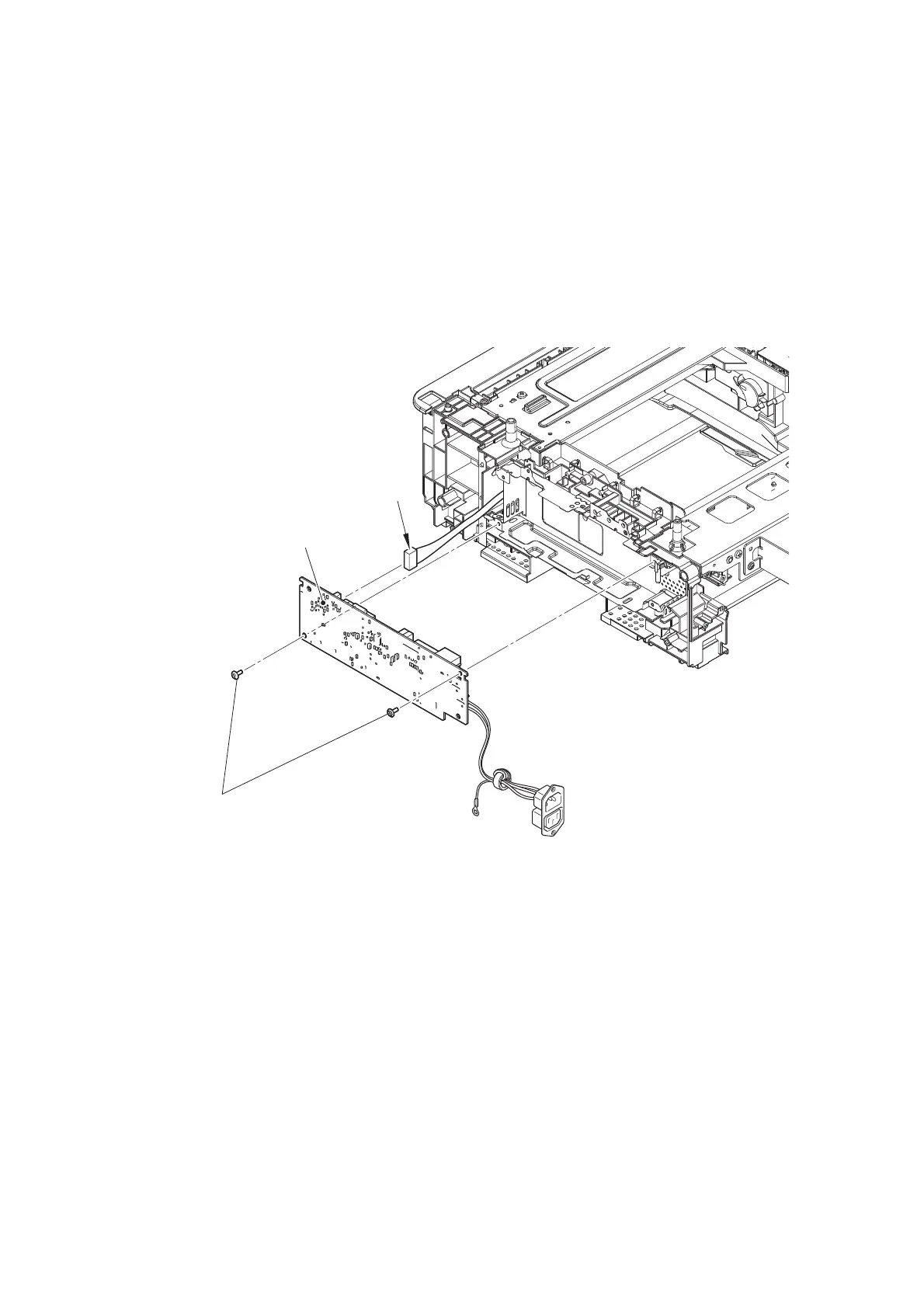

(7) Remove the two screw cup M3x8 (black) screws to remove the low-voltage power

supply PCB ASSY. Disconnect the low-voltage power supply harness from the low-

voltage power supply PCB ASSY.

Fig. 3-166

Screw cup M3x8 (black)

Low-voltage power supply harness

Low-voltage power supply PCB ASSY
