7-10

Confidential

(12) Disconnect the stack sensor harness from the main PCB ASSY, and release it from the

securing fixtures.

(13) Remove the four taptite bind B M4x12 screws.

(14) Release the hook A first, and then release the hook B. Remove the top cover ASSY.

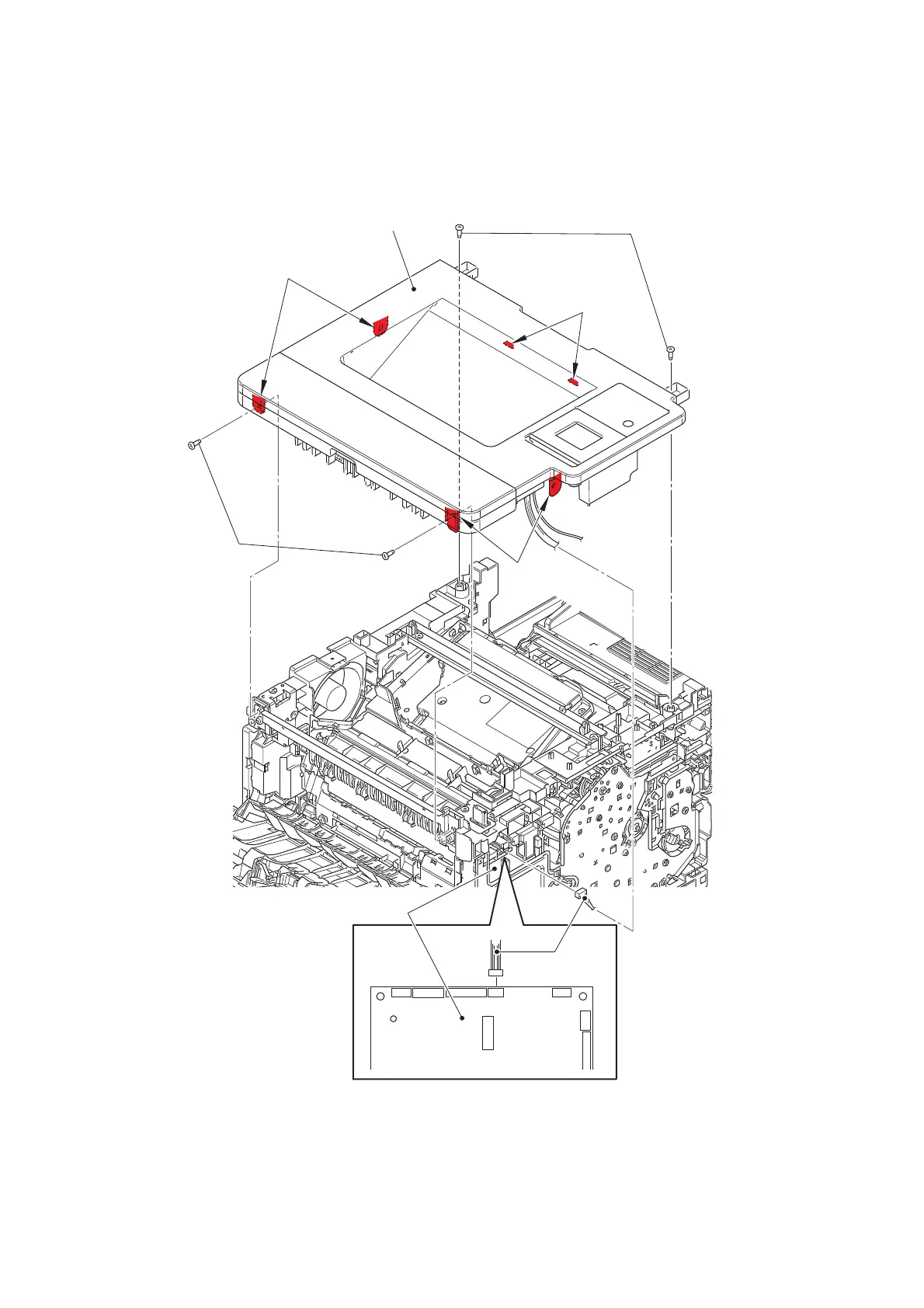

Fig. 7-15

Harness routing: Refer to “1. Left side of the machine (Touch panel models)”.

Top cover ASSY

Taptite bind B M4x12 (black)

Taptite bind

B M4x12

Hooks B

Hooks A

Stack sensor

harness

Main PCB ASSY
