■ Non touch panel models

(15) Disconnect the panel harness ASSY from the main PCB ASSY, and release it from the

securing fixtures.

(16) Remove the four taptite bind B M4x12 screws.

(17) Release the hook A first, and then release the hook B. Remove the top cover ASSY.

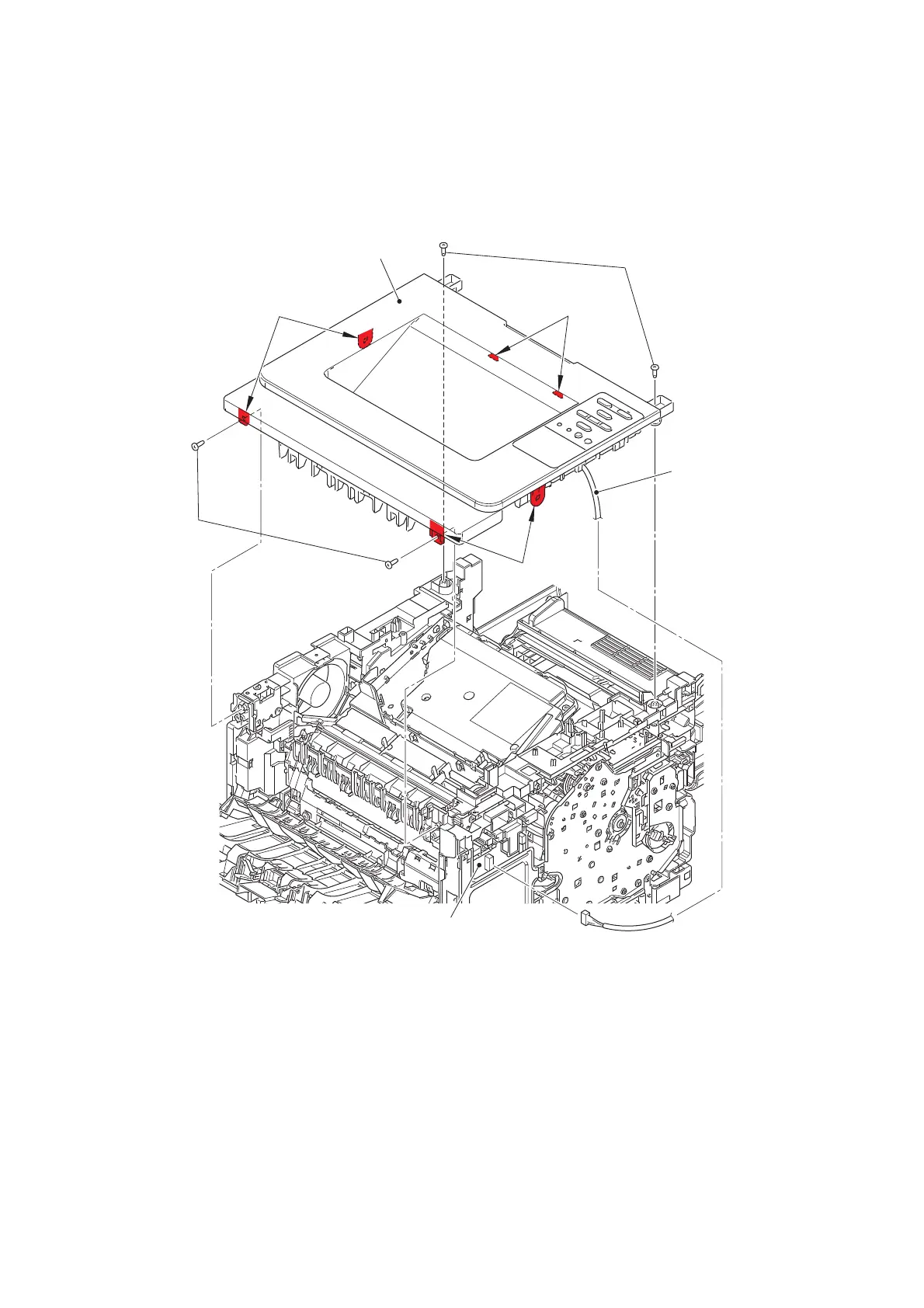

Fig. 7-16

Harness routing: Refer to “2. Left side of the machine (Non touch panel models)”.

Top cover ASSY

Hooks B

Taptite bind

B M4x12

(black)

Hooks B

Taptite bind B M4x12

Main PCB ASSY

Panel harness ASSY

Hooks A

Default Chapter4
