2-102
CHAPTER 2 NEW FUNCTIONS
COPYRIGHT © 2001 CANON INC. 2000 2000 2000 2000 CANON CLC5000 REV.0 JAN. 2001

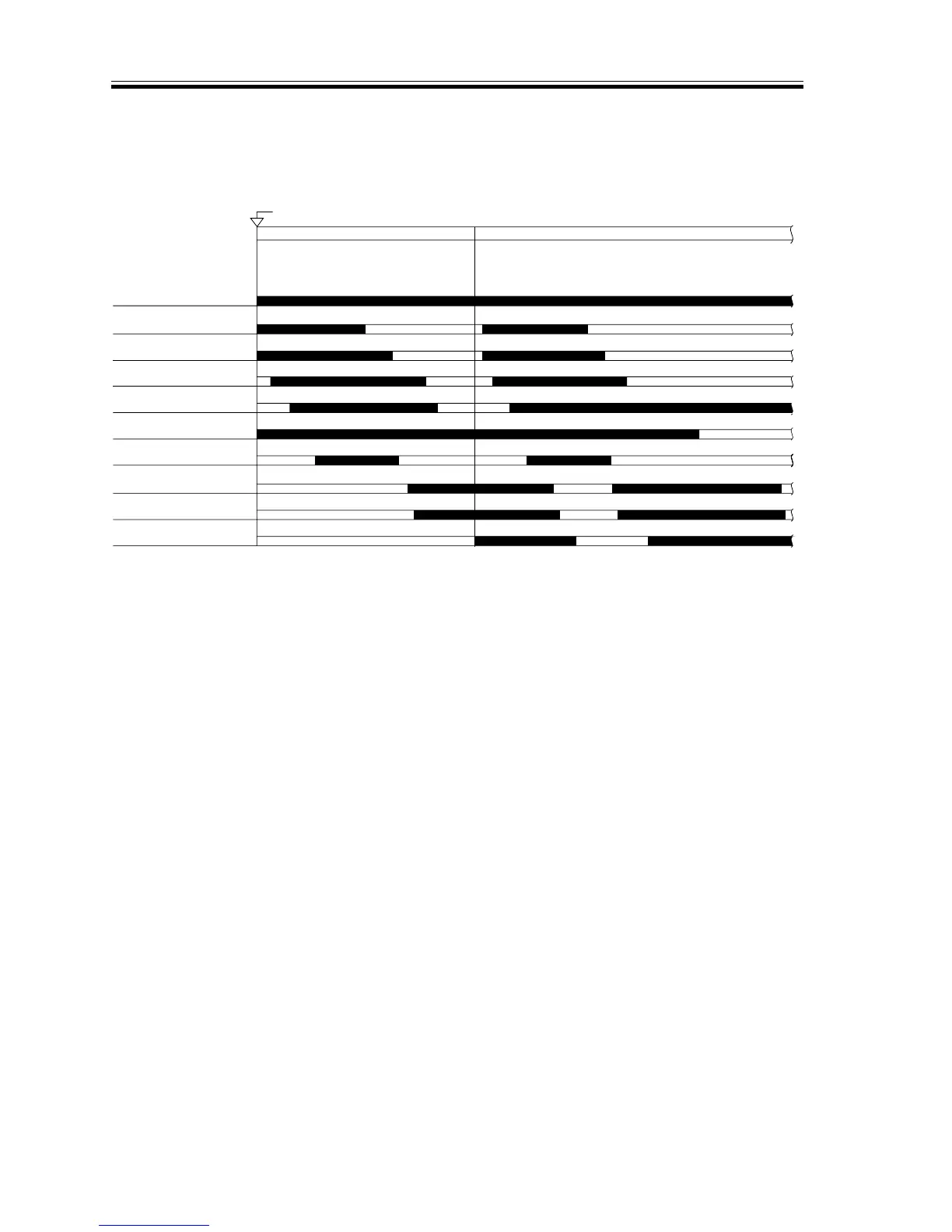

2) Sequence of Operations
Duplex Unit (2nd side), A4/LTR, 2 Copies, Continuous, 4-Color, Direct
F02-505-07
Start key ON
(second page)
CNTR COPY
Photopositive drum motor
(M21)
Duplex paper sensor
2 (PS31)
Pickup vertical path 1
sensor (PS21)
Registration paper sensor
(PS1)
Transparency sensor
(OHPS)
Re-pickup motor (M37)
Re-pickup clutch (CL10)
Feeding roller solenoid
(SL13)
Re-pickup shutter
solenoid (SL8)
Registration motor
(M35)
