CHAPTER 2 NEW FUNCTIONS

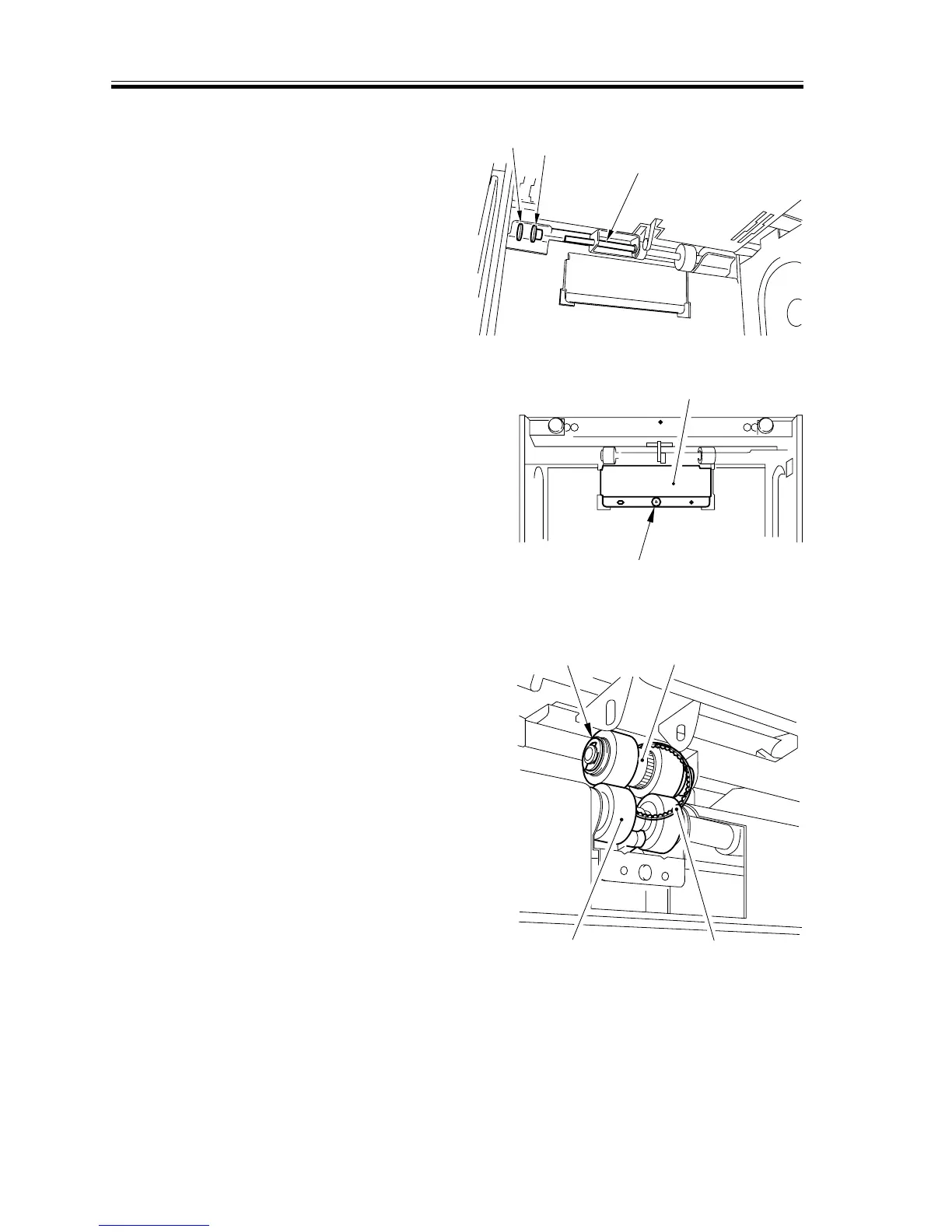

5) Remove the resinic E-ring [3] and bear-
ing [4]; then, pull out the pickup roller
shaft [5] to the rear.
F02-804-05
6) Remove the mounting screw [6], and
detach the separation roller assembly
cover [7].
F02-804-06
7) Remove the resinic E-ring [8]; then,
while pushing down the separation
roller assembly [9], detach the timing
belt [10], and detach the pickup/feed
roller assembly [11].
F02-804-07
[3]
[4]
[5]
[7]
[6]
[8]
[9]
[11]
[10]
