CHAPTER 2 NEW FUNCTIONS
COPYRIGHT © 2001 CANON INC. 2000 2000 2000 2000 CANON CLC5000 REV.0 JAN. 2001

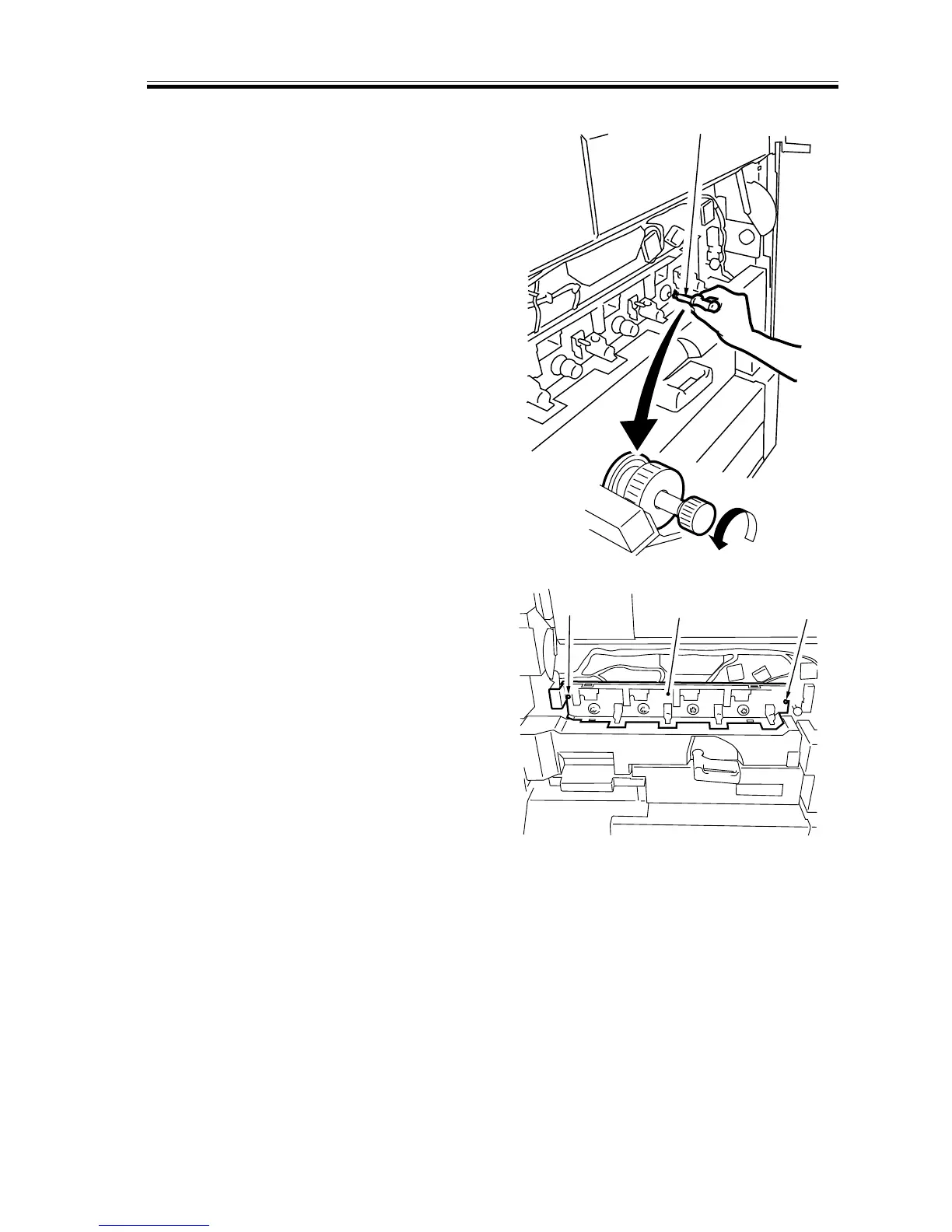

4) Remove the four positioning knobs [3]
of the photosensitive drum. (Turn the
smaller knob in the middle counter-
clockwise.)
[3]
F02-405-14
5) Remove the two screws [5] of the process
unit case [4].
[5][5]
[4]
F02-405-15
