Removing the Through Path Unit
■ Preparation
1. Remove the Right Connection Unit.“Removing the Right Connection Unit” on page 91
2. Remove the Deck Rear Middle Cover.“Removing the Deck Rear Middle Cover” on page 79
■ Procedure

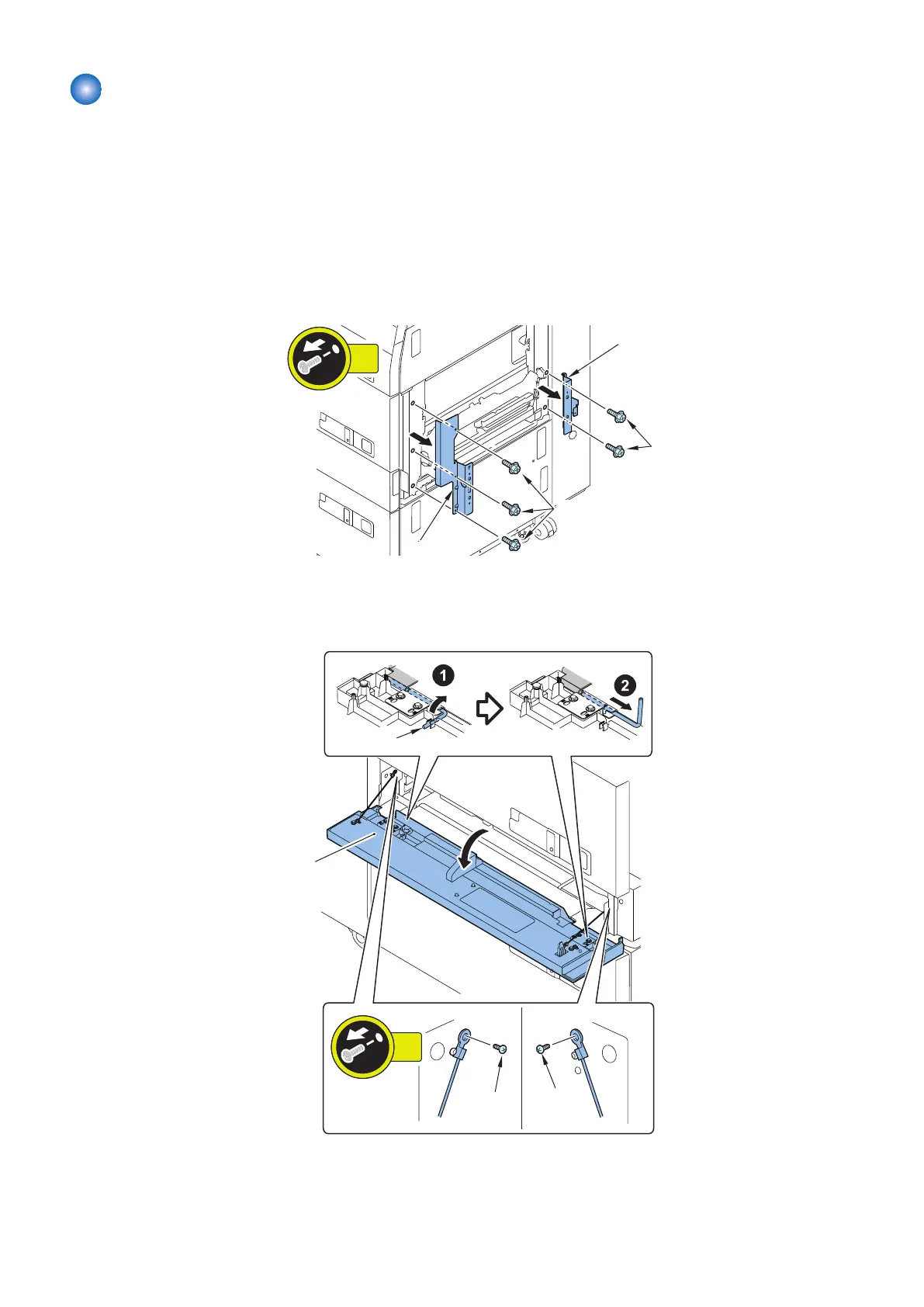

1. Remove the Brackets (Front/Rear) [1].
• 5 Screws [2]
5x
[1]
[1]
[2]
[2]
2. Open the Through Pass Front Cover [1] and remove it.
• 2 Screws [2]
• 2 Hinge Pins [3]
[1]
2x
[2]
[2]
[3]
4. Parts Replacement and Cleaning
93
