Canon E1 - Removing the through Path Unit PCB (PCB401)

■ Procedure

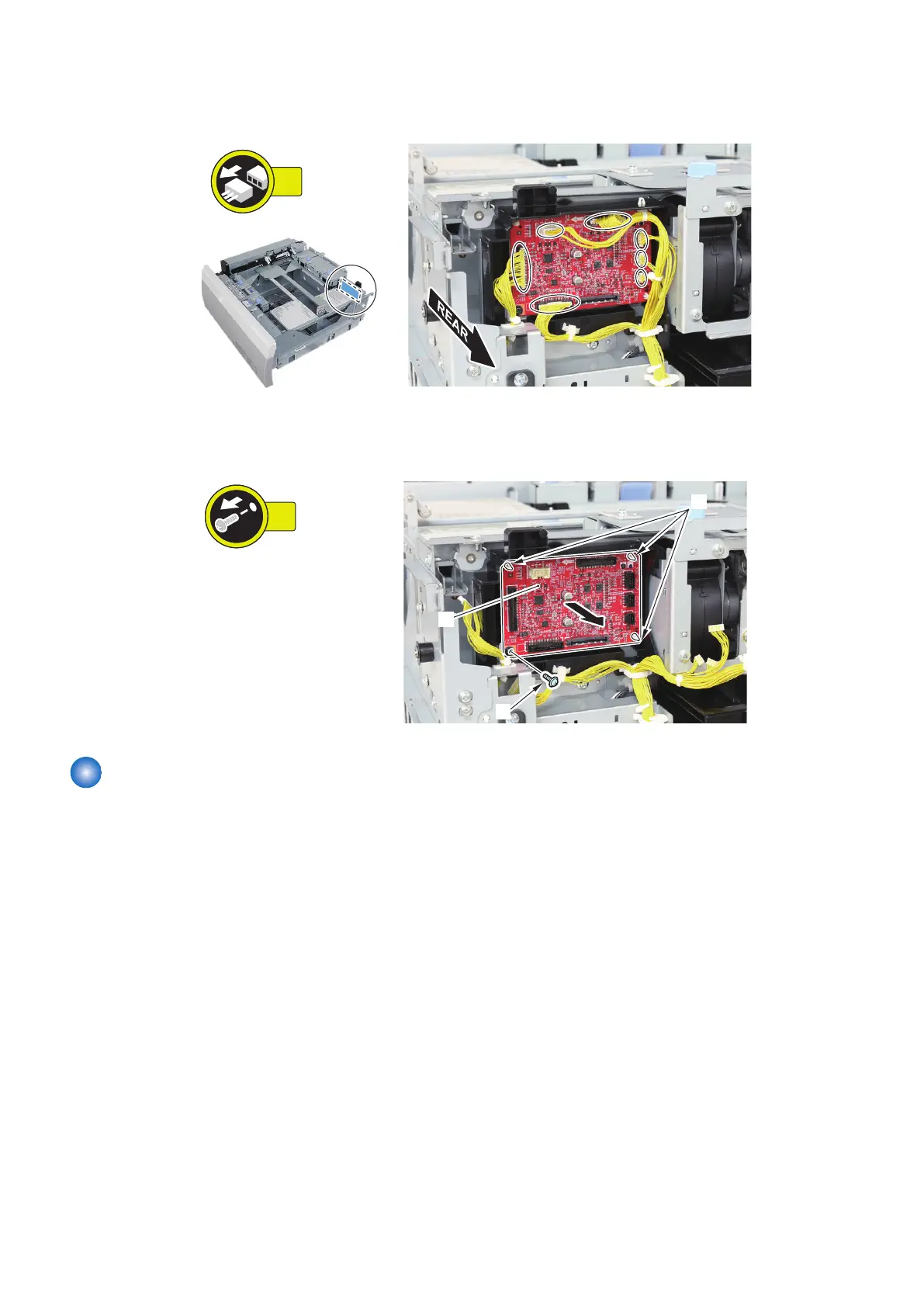

1. Remove all connectors on the Deck Swing Unit PCB.
7x
2. Remove the Deck Swing PCB [1].
• 1 Screw [2]
• 3 Locking Supports [3]
[3]
1x
[1]
[2]
Removing the Through Path Unit PCB (PCB401)
■ Preparation
1. Remove the Right Connection Unit. “Removing the Right Connection Unit” on page 91
2. Remove the Deck Rear Middle Cover.“Removing the Deck Rear Middle Cover” on page 79
3. Remove the Through Path Unit.“Removing the Through Path Unit” on page 93
4. Parts Replacement and Cleaning
144
