Canon E1 - Component Configuration

Component Configuration

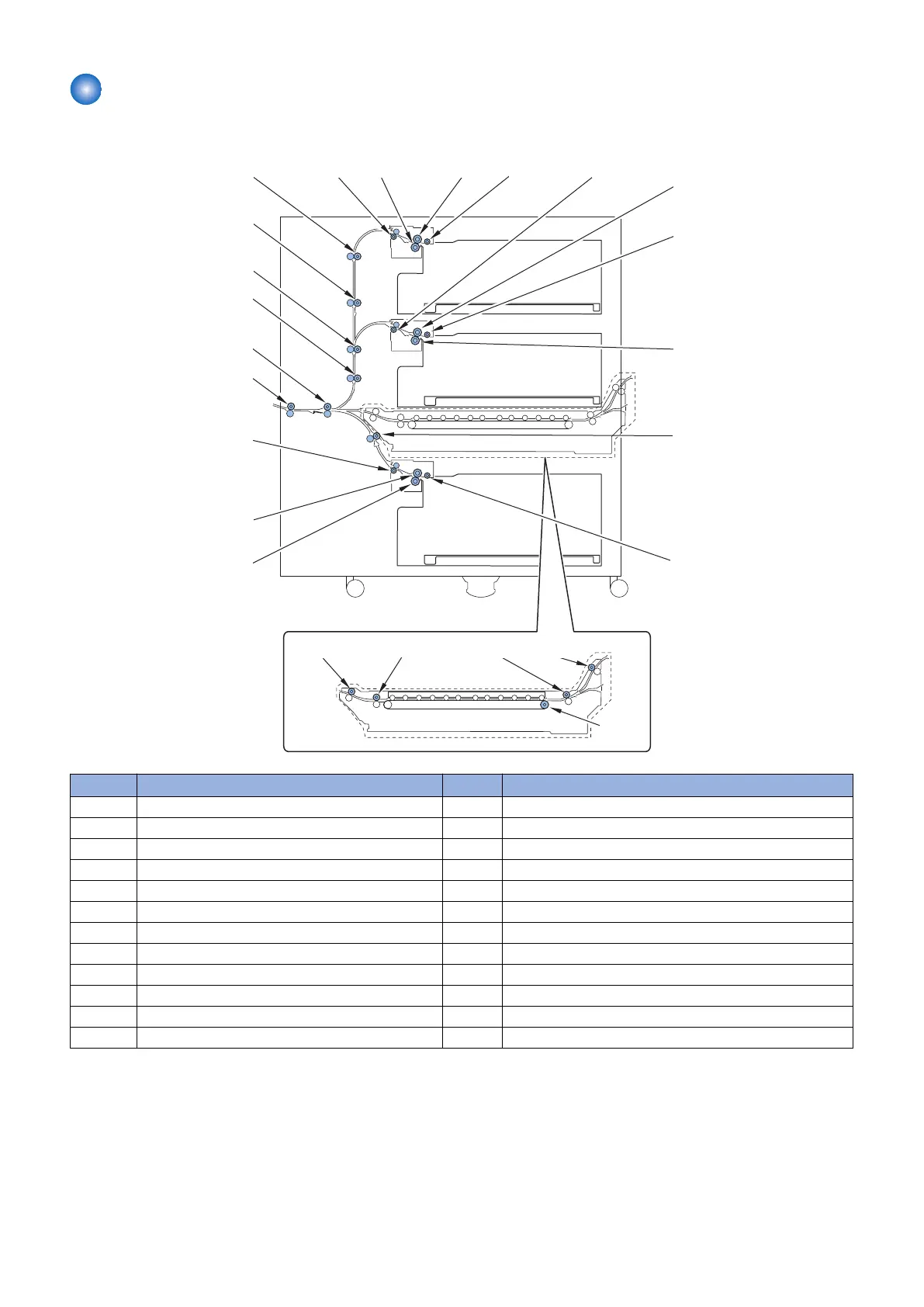

■ Component Configuration
[2]
[3]
[4]
[1]
[6]
[14]
[15]
[16]
[9]
[5]
[7]
[8]
[11]
[12]
[13]
[17]
[18]
[19]
[10]
[20]
[21]
[22] [23]
[24]
No. Part Name No. Part Name
[1] Upper Deck Pull-out Roller [13] Lower Deck Pull-out Roller
[2] Upper Deck Separation Roller [14] Horizontal Path Feed Roller 2
[3] Upper Deck Pickup/Feed Roller [15] Horizontal Path Feed Roller 1
[4] Upper Deck Pickup Roller [16] Vertical Path Lower Feed Roller 2
[5] Middle Deck Pull-out Roller [17] Vertical Path Lower Feed Roller 1
[6] Middle Deck Pickup/Feed Roller [18] Vertical Path Upper Feed Roller 2
[7] Middle Deck Pickup Roller [19] Vertical Path Upper Feed Roller 1
[8] Middle Deck Separation Roller [20] Through Path Outlet Roller 2
[9] Lower Path Feed Roller [21] Through Path Outlet Roller 1
[10] Lower Deck Pickup Roller [22] Connect Deck Inlet Roller
[11] Lower Deck Separation Roller [23] Multi Tray Inlet Roller
[12] Lower Deck Pickup/Feed Roller [24] Feed Belt Drive Roller
