Canon E1 - Removing the Deck Pickup Solenoid (SOL101;201;301)

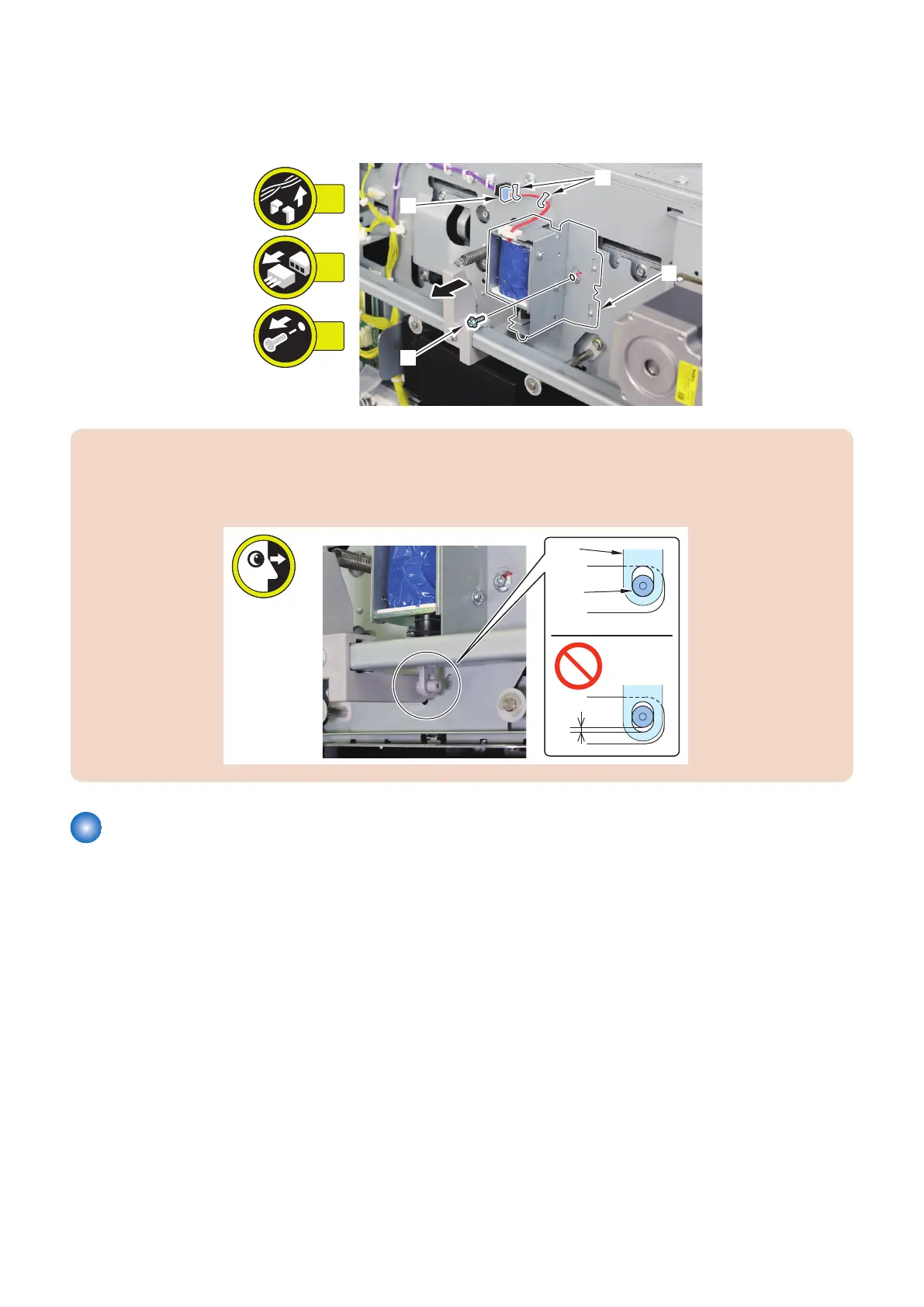

2. Remove the Deck Open/Close Solenoid [1].
• 2 Wire Saddles [2]
• 1 Connector [3]
• 1 Screw [4]
1x
2x
1x
[1]
[2]
[4]
[3]
CAUTION:
When installing the Deck Open/Close Solenoid, align it with the position previously noted in Step 2.
In the no-load state, make sure that the actuator [1] and the link shaft [2] are snugly engaged with no gap [A], as shown in
the figure.
[A]
[1]
[2]
Removing the Deck Pickup Solenoid (SOL101/201/301)
■ Preparation
1. Release the lock to open the target Deck.“Releasing the Deck” on page 77
2. Remove the Pickup Unit.“Removing the Pickup Unit” on page 87
