Item Explanation of operation Refer
5. Through Path
Block (Option)
Skew correction control The Alignment Plates (front and rear) align paper edges to correct
skew during feeding.
“Skew Correction
Control” on page
38
6. Other Fan control The Fan improves separating performance of the paper, also cools
parts.
“Fan” on page
44
Jam detection The signal from the sensor is read at the check timing recorded in
the host machine to judge whether paper is present and fed nor-
mally.
“Jam Detection”
on page 39

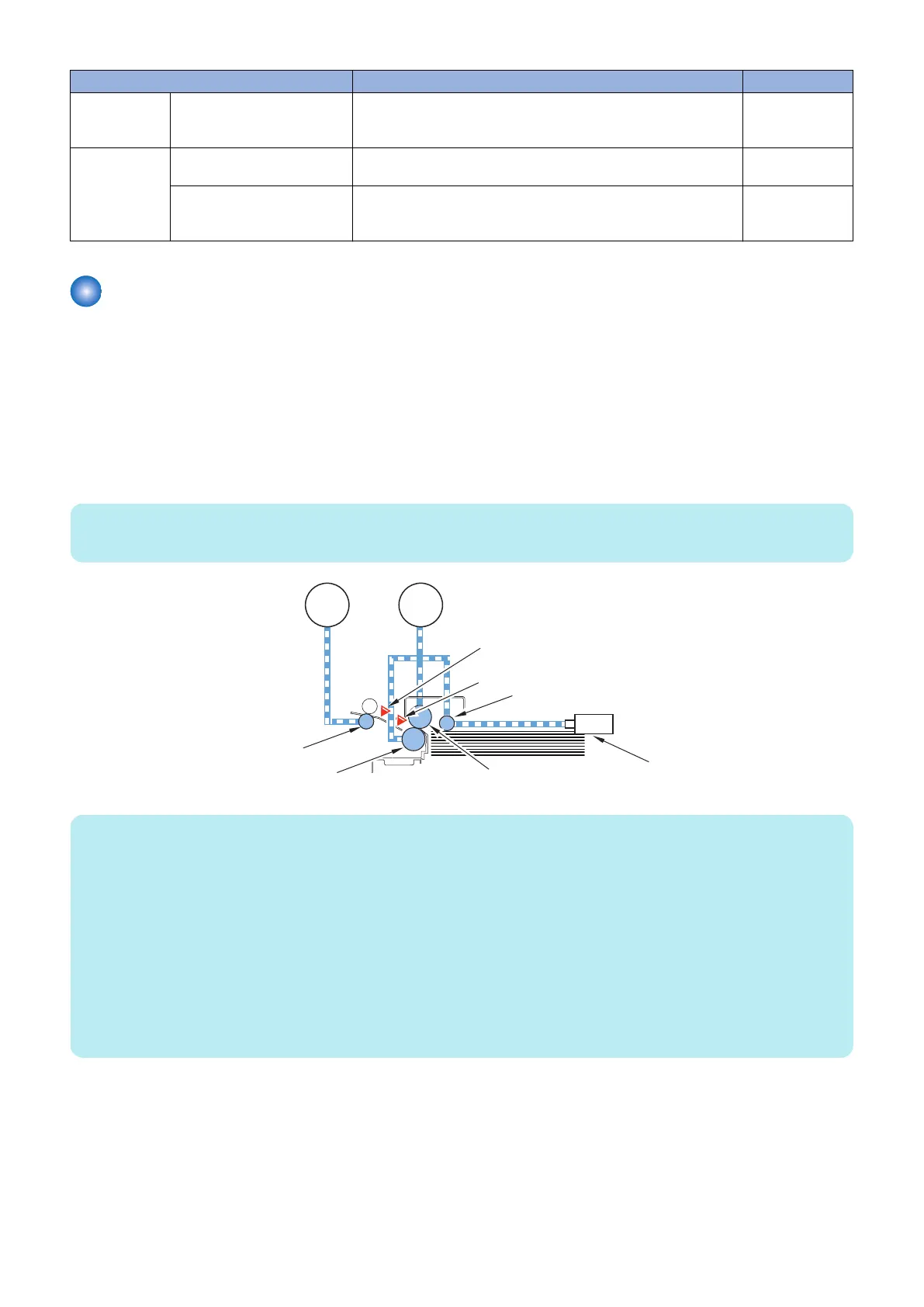

Pickup Block
■ Pickup Control
The papers set in the deck is held up by the lifter, and is kept to a specific paper pickup position.
When the Start key is pressed on the host, the Deck Pickup Motor (M103/203/ 303) turns the Deck Pickup Roller to pick up paper.
Only one sheet of paper is fed by the Deck Pickup/Feed Roller and the Deck Separation Roller.
After the paper is detected by the Deck Pull-out Sensor (S104/S204/S304), the Deck Pickup Roller Solenoid (SOL101/SOL201/
SOL301) turns on to separate the Deck Pickup Roller from the paper surface. (exclude coated thin paper)
hen, the paper butts against the Deck Pull-out Roller to form a loop. This corrects paper skew.
The Deck Pull-out Roller is driven by the Deck Pull-out Motor (M104/M204/M304) to feed paper to the host machine.
NOTE:
Pickup control is performed in the same manner for all decks.
Deck Pull-out Roller
Deck Separation Roller
Deck Pickup/Feed Roller
Deck Pickup Roller
Deck Pickup Solenoid
(SOL101/ SOL201/ SOL301)
Deck Pull-out Sensor (S104/ S204/ S304)
Deck Pickup Sensor (S103/ S203/ S303)
M104
M204
M304
M103
M203
M303
NOTE:
Service Mode
• Setting of Deck Pickup Roller engaged/disengaged(MD, Upper)
COPIER> OPTION> FEED-SW> MD-PSP1
Middle deck and Lower deck uses the following service modes.
(MD-PSP2, MD-PSP3)
• Setting of Deck Pickup Roller engaged/disengaged(Sec MD, Upper)
COPIER> OPTION> FEED-SW> MD2-PSP1
Middle deck and Lower deck uses the following service modes.
(MD2-PSP2, MD2-PSP3)
<Use case>
• When Pickup Roller trace occurs on the 2nd sheets and later
■ Air Assist Control
To facilitate separation of coated paper, this equipment executes air-assisted control.
The Flotation Fan 1 (FAN101, FAN201, FAN301) and the Flotation Fan 2 (FAN102, FAN202, FAN302) blows air against the
paper so that preventing double feeding.
To facilitate separation of paper in a high-humidity environment, the Air Heater Unit (AHT101, AHT202, AHT301) is available.
The Flotation Fan 1 (FAN101, FAN201, FAN301) with an air heater blows hot wind against paper to reduce the humidity, thus
facilitating separation of paper.
2. Technology
23
