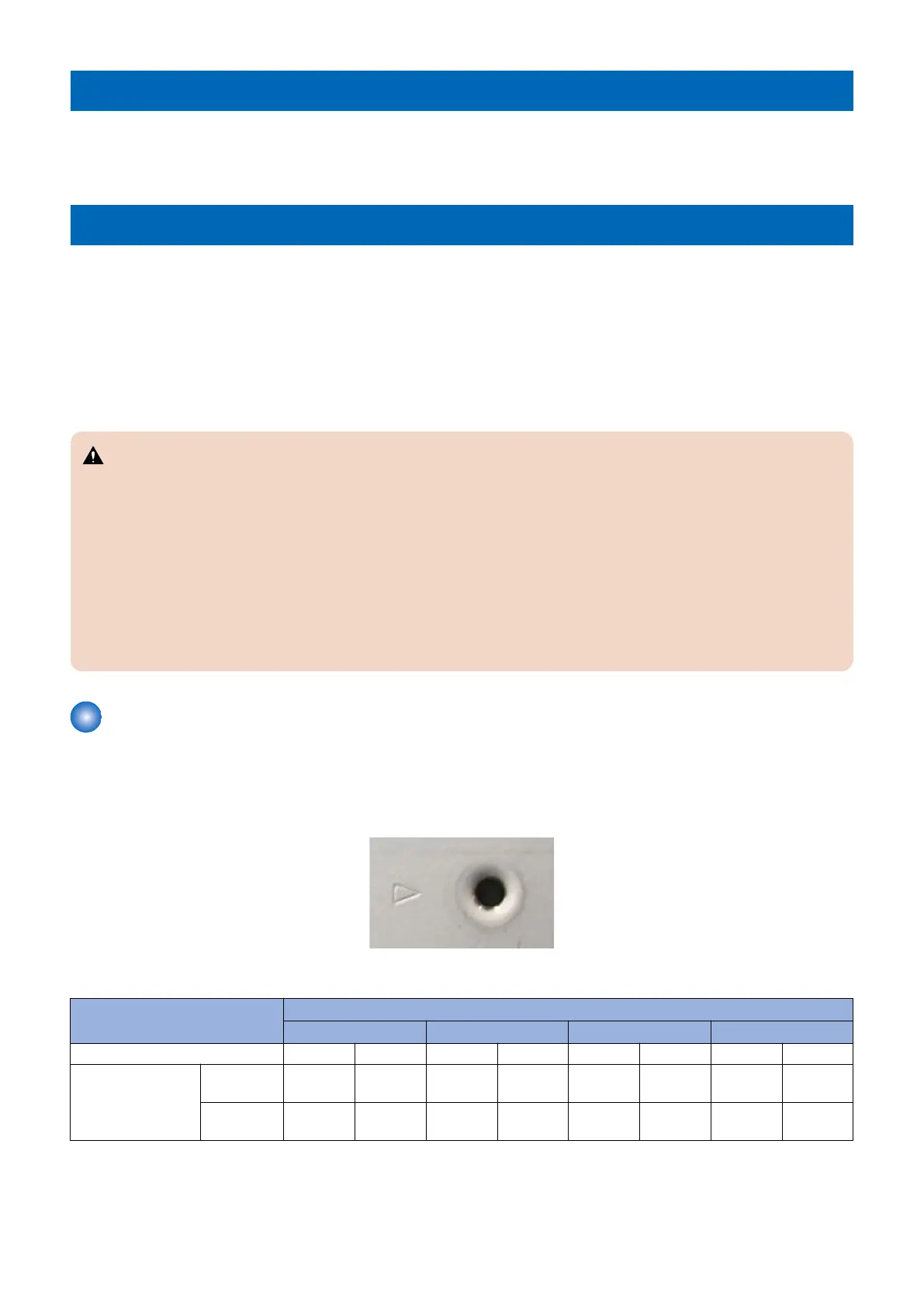

Points to Note at Cleaning
When performing cleaning using organic solvent such as alcohol, be sure to check that the component of solvent is vaporized
completely before assembling.
Notes on Assembly/Disassembly
Follow the items below to assemble/disassemble the device.
1. Disconnect the power plug to avoid any potential dangers during assembling/disassembling works.
2. If not specially instructed, reverse the order of disassembly to reinstall.
3. Ensure to use the right screw type (length, diameter, etc.) at the right position when assembling.
4. To keep electric conduction, binding screws with washers are used to attach the grounding wire and the varistor. Ensure to
use the right screw type when assembling.
5. Unless it is specially needed, do not operate the device with some parts removed.
6. Never remove the paint-locked screws when disassembling.
CAUTION:
English
CAUTION
DOUBLE POLE/NEUTRAL FUSING
The fuse may be in the neutral, and that the mains shall be disconnected to de-energize the phase conductors.
German
VORSICHT
ZWEIPOLIGE BZW. NEUTRALLEITER-SICHERUNG
Die Sicherung kann sich im Nullleiter befinden und das Hauptnetz muss abgetrennt werden, um die Phasenleiter
stromlos zu machen.
Points to Note when Tightening a Screw
When a thin plates is used in some parts for the light weighting purpose, warn the following.
In the case of a screw hole with a triangle mark near it as shown in the figure below, strongly tightening the screw may damage
or deform the screw hole.
In the case of a screw hole with a triangle mark, take care not to apply too much force when tightening the screw.
The recommended torque value is shown below as a reference value.
Type of Screws
RS tight W Sems Binding TP
Fastened member Metal Resin Metal Resin Metal Resin Metal Resin
Tightening torque
(N*m)
M4 Approx.
1.6
Approx.
1.6
Approx.
1.6
Approx.
0.8
Approx.
1.6
Approx.
0.8
Approx.
1.6
Approx.
0.8
M3 Approx.
0.8
Approx.
0.8
Approx.
0.6
Approx.
0.6
Approx.
0.6
Approx.
0.6
Approx.
0.6
Approx.
0.6
* For PCB, refer to the tightening torque value of resin (fastened member).
