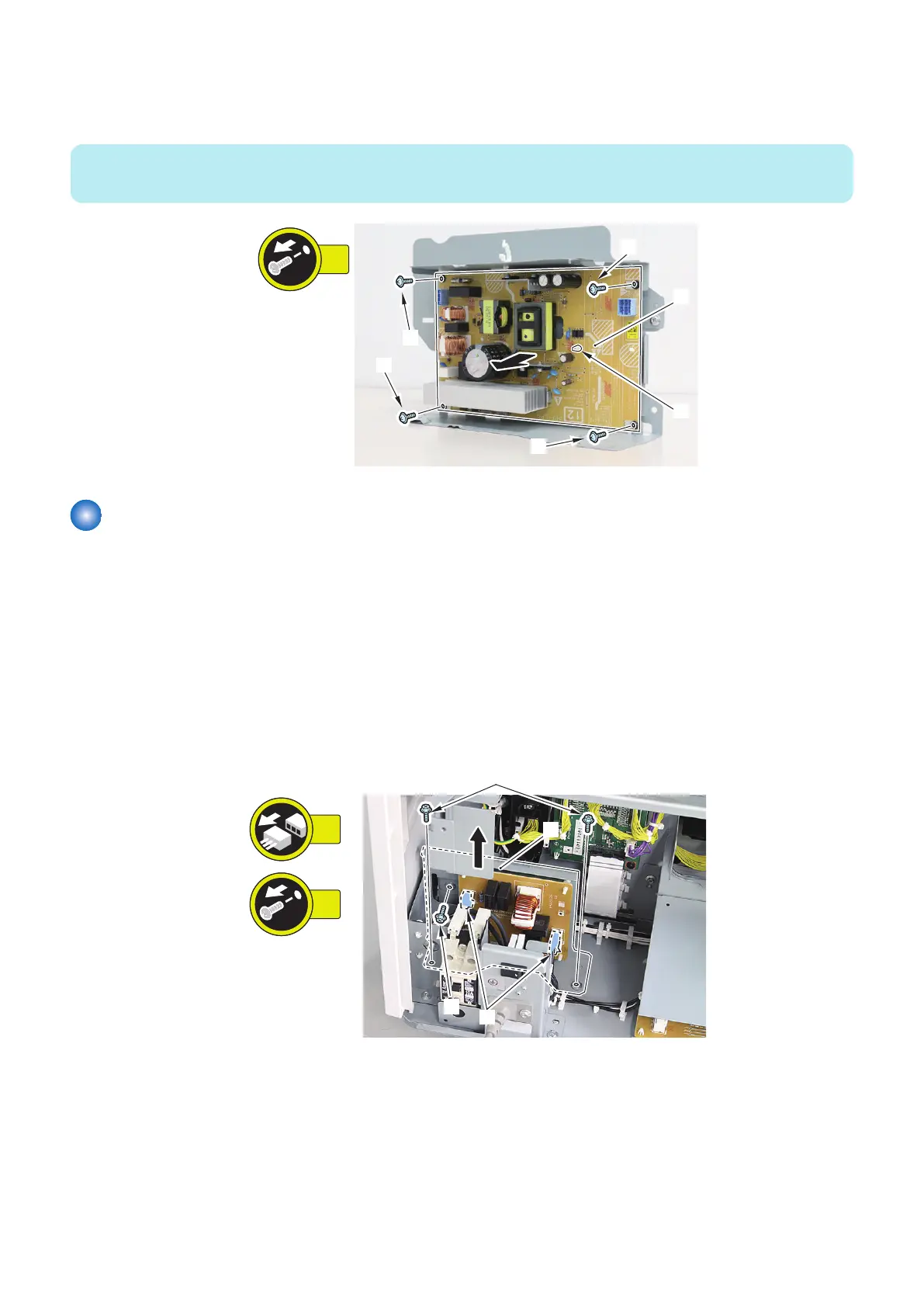

Canon E1 - Removing the Noise Filter PCB (PCB003)

4. Remove the DC Power supply PCB 2 [1].
• 4 Screws [2]
• 1 Locking Support [3]
NOTE:
The shape of the Cover is different, but the procedure is the same.
[1]
[3]
[2]
[2]
[2]
[2]
4x
Removing the Noise Filter PCB (PCB003)
■ Preparation
1. Remove the Deck Rear Middle Cover.“Removing the Deck Rear Middle Cover” on page 79
2. Remove the Deck Rear Lower Cover.“Removing the Deck Rear Lower Cover” on page 79
■ Procedure
1. Remove the Noise Filter Unit [1].
• 2 Connectors [2]
• 3 Screws [3]
2x
3x
[2]
[1]
[3]
[3]
