Canon E1 - Removing the LED PCB 2(PCB403)

■ Procedure

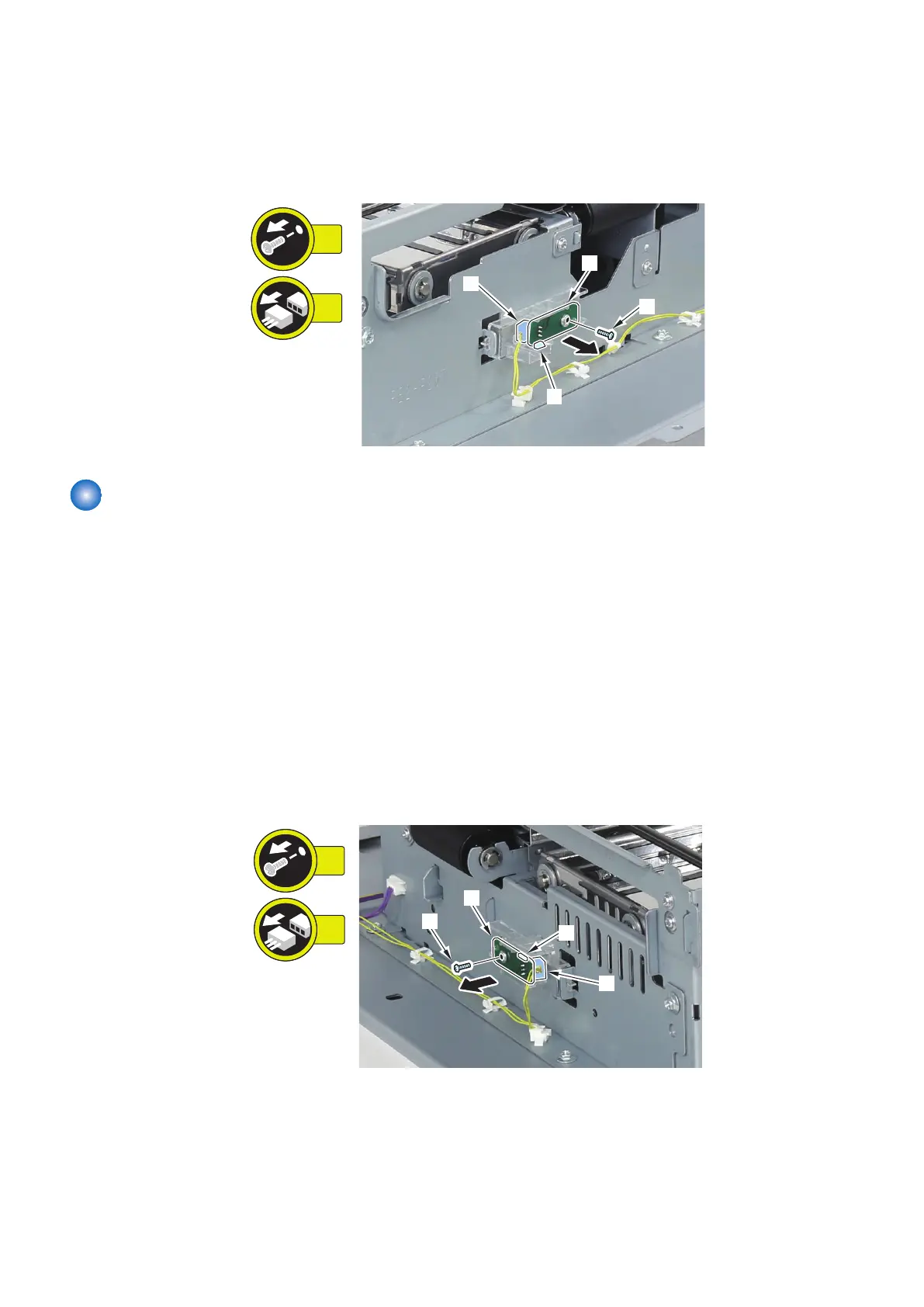

1. Remove the LED PCB 1 [1].
• 1 Screw [2]
• 1 Connector [3]
• 1 Hook [4]
1x
1x
[4]
[2]
[3]
[1]
Removing the LED PCB 2(PCB403)
■ Preparation
1. Remove the Right Connection Unit. “Removing the Right Connection Unit” on page 91
2. Remove the Deck Rear Middle Cover.“Removing the Deck Rear Middle Cover” on page 79
3. Remove the Through Path Unit. “Removing the Through Path Unit” on page 93
4. Remove the Through Path outlet Unit.“Removing the Through Path Outlet Unit” on page 98
■ Procedure
1. Remove the LED PCB 2 [1].
• 1 Screw [2]
• 1 Connector [3]
• 1 Hook [4]
1x
1x
[4]
[2]
[3]
[1]
