Canon E1 - Removing the through Path Inlet Unit

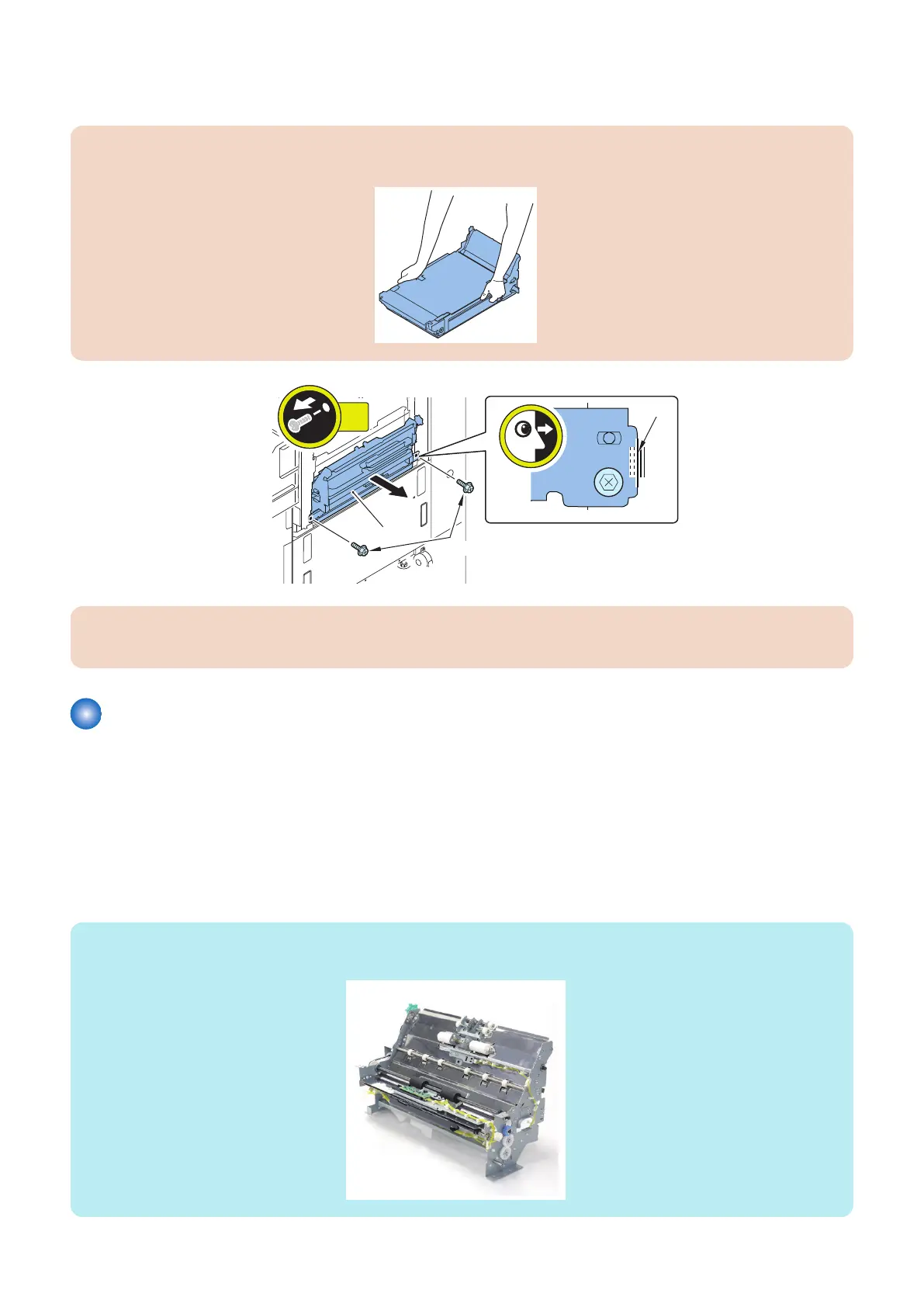

9. Remove the Through Pass Unit [1].
• 2 Screws [2]
CAUTION:
Hold the specified parts as shown.
2x
[1]
[2]
[A]
CAUTION:
When installing the Through Pass Unit, align the rear plate with the center line [A] of the scale.
Removing the Through Path Inlet Unit
■ Preparation
1. Remove the Right Connection Unit. “Removing the Right Connection Unit” on page 91
2. Remove the Deck Rear Middle Cover.“Removing the Deck Rear Middle Cover” on page 79
3. Remove the Through Path Unit. “Removing the Through Path Unit” on page 93
■ Procedure
NOTE:
An image of removing of Through Path Inlet Unit
4. Parts Replacement and Cleaning
96
