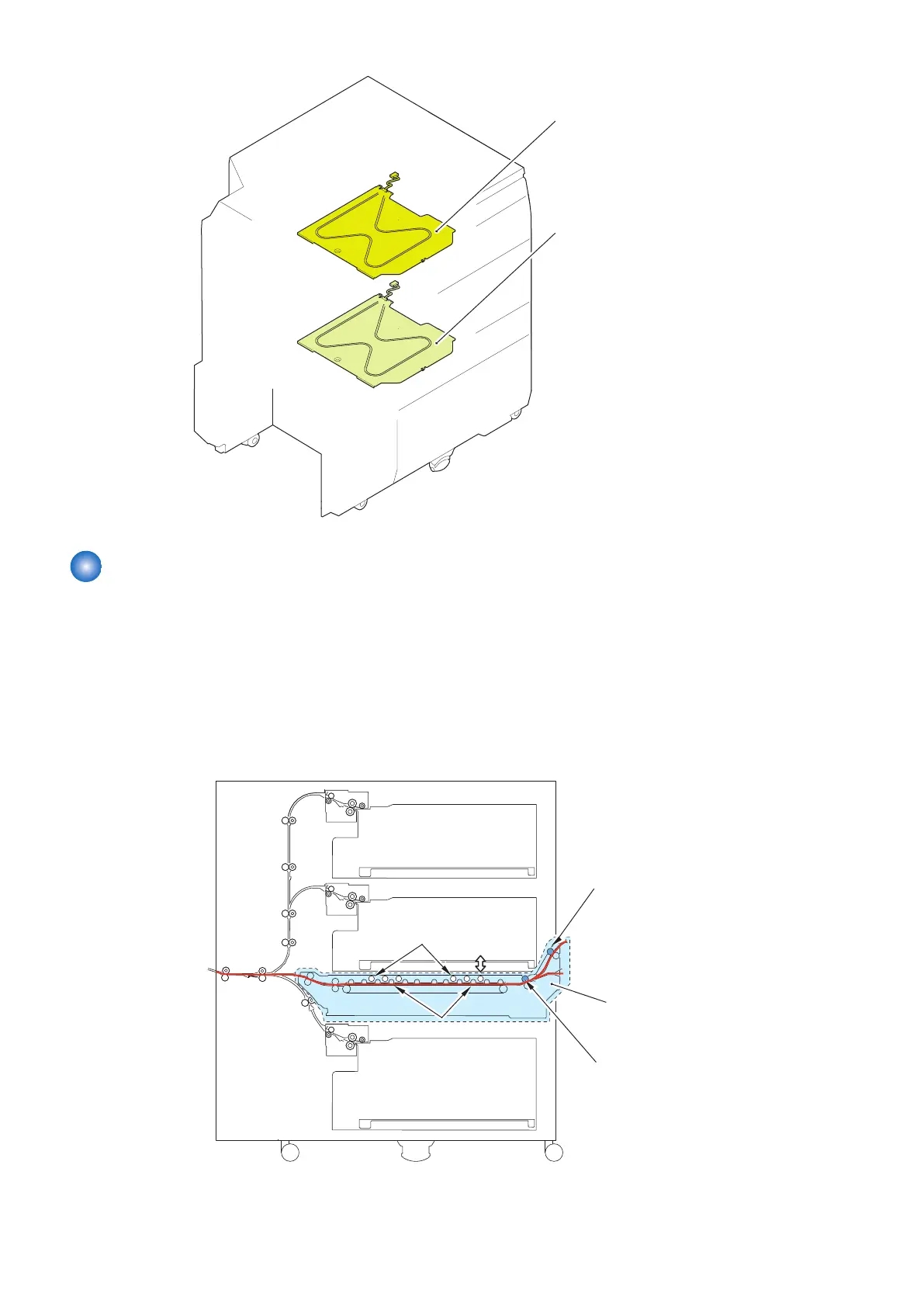

Cassette Heater (Middle Deck)
CHT002
Cassette Heater (Lower Deck)
CHT003
Through Path Block (Option)
■ Through Path Feed Control
The Multi-drawer Paper Deck has options-the Secondary multi-drawer Paper Deck, the Stack Bypass, the POD Deck Lite C, and
the POD Deck Lite XL. When either option is mounted, the Through Path Unit must also be installed as the path to feed paper
picked up in the Stack Bypass or the connect Deck to the host machine.
• Paper in the Stack Bypass is picked up by the Multi Tray Inlet Roller and fed to the host machine.
• Paper in the connect Deck is picked up by the Connect Deck Inlet Roller and fed to the host machine.
• When the 351 to 400 g/m
2
heavy paper is carried, the Through Path Feed Wheel (Metal) is lowered to press the paper
automatically to enhance the carrying capacity of the heavy paper.
Wheel (Metal)
Wheel (Resin)
Multi Tray Inlet Roller
Connect Deck Inlet Roller
Through Path Unit
