Canon E1 - Fan

No. Part Name No. Part Name
S59 Rear Alignment Plate HP Sensor SOL202 Middle Deck Open/Close Solenoid
S60 Through Path Outlet Sensor 1 SOL301 Lower Deck Pickup Solenoid
S61 Through Path Disengagement HP Sensor 2 SOL302 Lower Deck Open/Close Solenoid
S62 Through Path Disengagement HP Sensor 1 SW001 Deck Left Front Cover Safety Switch
S64 Through Path Outlet Sensor 2 SW002 Cassette Heater Switch
S65 Connect Deck Inlet Sensor SW102 Upper Deck Lifter Lower Limit Switch
SOL007 Escape Flapper Solenoid SW202 Middle Deck Lifter Lower Limit Switch
SOL101 Upper Deck Pickup Solenoid SW302 Lower Deck Lifter Lower Limit Switch
SOL102 Upper Deck Open/Close Solenoid SW408 Through Path Safety Switch
SOL201 Middle Deck Pickup Solenoid
Fan

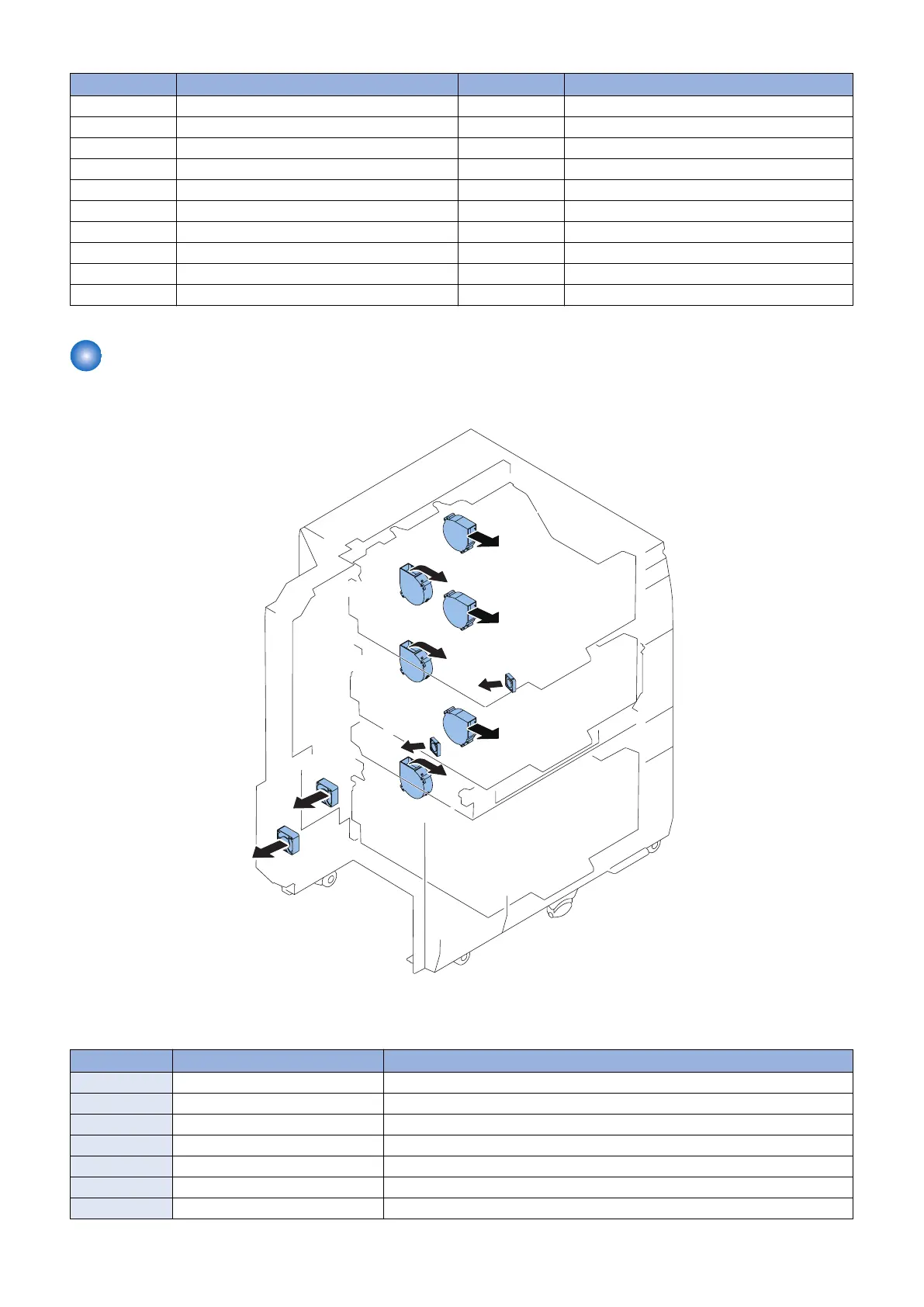

■ Location of Fans
FAN102
FAN202
FAN302
FAN101
FAN301
FAN201
FAN001
FAN002
FAN401
FAN402
■ Function of Fans
No. Part Name Function
FAN001 Power Supply Cooling Fan 1 Cool the DC Power Supply PCB 1
FAN002 Power Supply Cooling Fan 2 Cool the DC Power Supply PCB 2
FAN101 Upper Deck Flotation Fan 1 Improve separating performance of the paper
FAN102 Upper Deck Flotation Fan 2 Improve separating performance of the paper
FAN201 Middle Deck Flotation Fan 1 Improve separating performance of the paper
FAN202 Middle Deck Flotation Fan 2 Improve separating performance of the paper
FAN301 Lower Deck Flotation Fan 1 Improve separating performance of the paper
2. Technology
44
