Canon E1 - Removing the Deck Lifter Motor (M101;201;301)

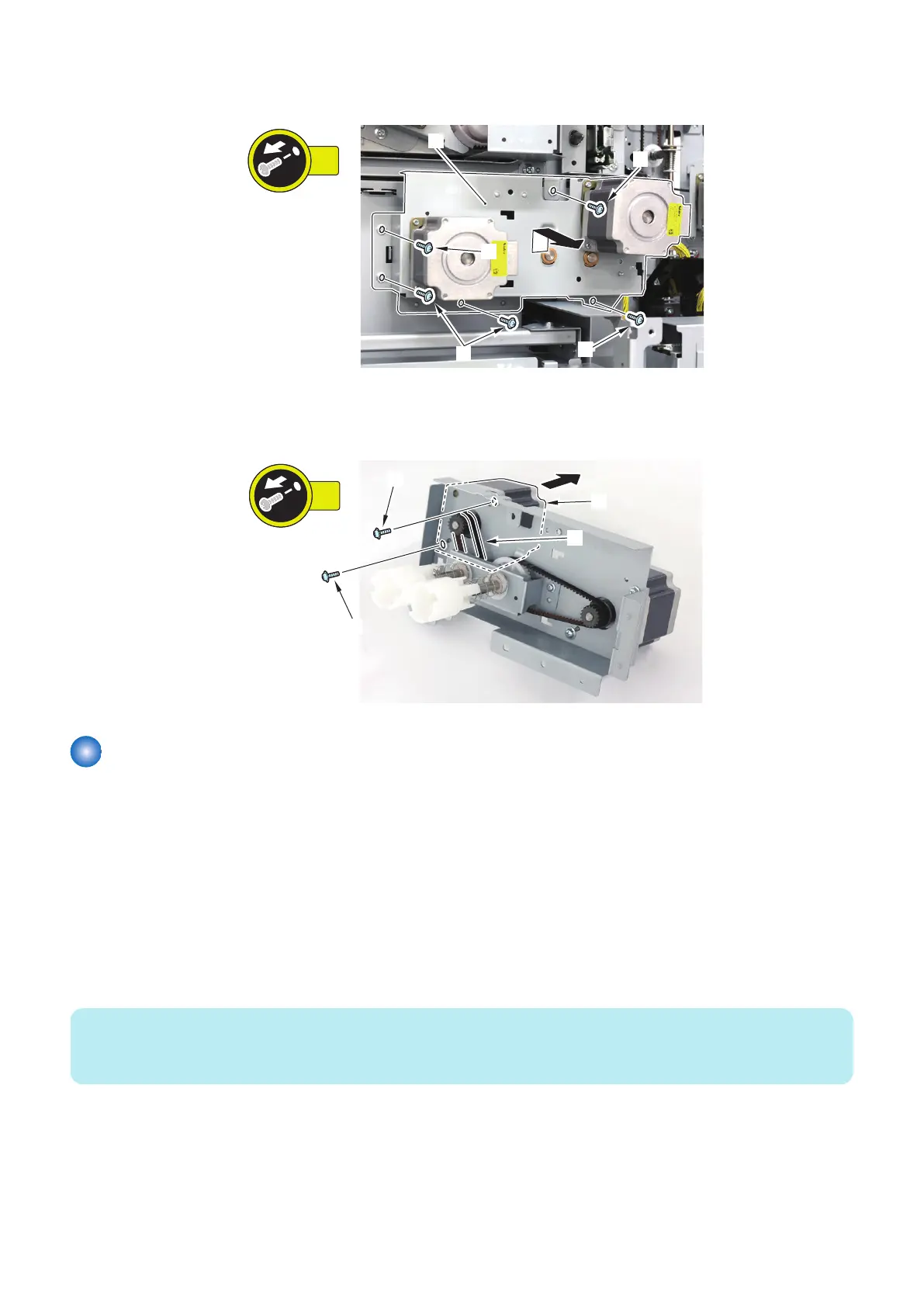

2. Remove the Deck Drive Motor Unit [1].
• 5 Screws [2]
5x
[1]
[2]
[2]
[2]
[2]
3. Remove the Deck Pull-out Motor [1].
• 2 Screws [2]
• 1 Timing Belt [3]
2x
[1]
[2]
[2]
[3]
Removing the Deck Lifter Motor (M101/201/301)
■ Preparation
1. Release the lock to open the target Deck.“Releasing the Deck” on page 77
2. Remove all paper from the Deck.
3. Close the Deck.
4. Remove the Rear Cover of the target Deck.“Removing the Deck Rear Upper Cover” on page 79, “Removing the Deck
Rear Middle Cover” on page 79, “Removing the Deck Rear Lower Cover” on page 79
■ Procedure
NOTE:
The removal procedure of the Deck Lifter Motor from the Middle Deck is described below. The procedure of the Upper and Lower
Decks is the same.
4. Parts Replacement and Cleaning
109
