Canon E1 - Removing the Deck Relay PCB (PCB104;204;304); Removing the Deck Swing PCB (PCB105;205;305)

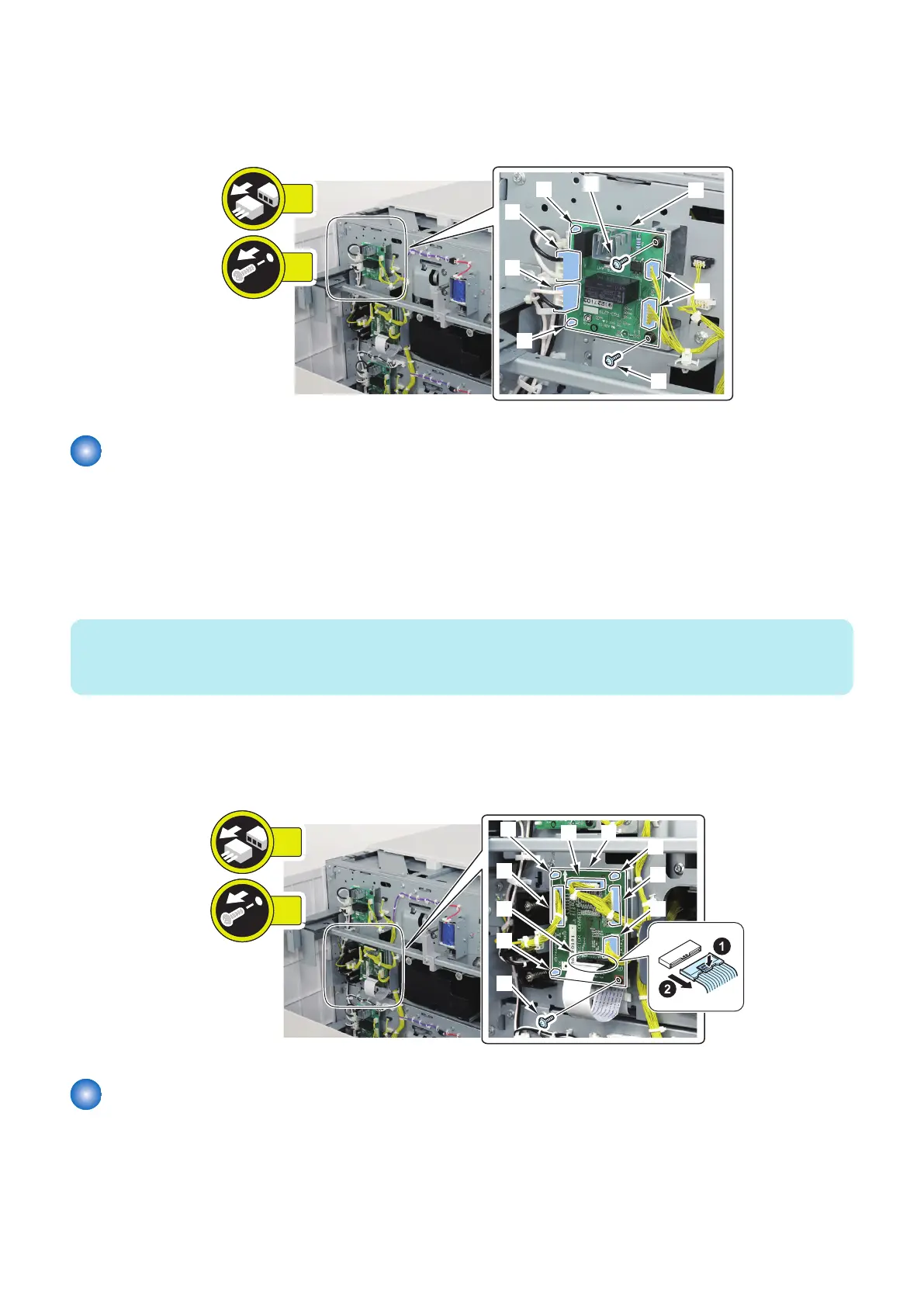

1. Remove the Deck Air Heater PCB [1].
• 4 Connectors [2]
• 2 Screws [3]
• 2 Locking Supports [4]
[1]
[2]
[2]
[2]
[4]
[4]
[3]
[3]
4x
2x
Removing the Deck Relay PCB (PCB104/204/304)
■ Preparation
1. Remove the Rear Cover of the target Deck.“Removing the Deck Rear Upper Cover” on page 79, “Removing the Deck
Rear Middle Cover” on page 79, “Removing the Deck Rear Lower Cover” on page 79
■ Procedure
NOTE:
The removal procedure of the Deck Relay PCB from the Upper Deck is described below. The procedure of the Middle and Lower
Decks is the same.
1. Remove the Deck Relay PCB [1].
• 5 Connectors [2]
• 1 Screw [3]
• 3 Locking Supports [4]
5x
1x
[1]
[3]
[2]
[4]
[4]
[4]
[2]
[2]
[2]
[2]
Removing the Deck Swing PCB (PCB105/205/305)
■ Preparation
1. Release the lock to open the target Deck.“Releasing the Deck” on page 77
2. Remove the Deck Unit. “Removing the Deck Unit” on page 88
