Canon E1 - Removing the DC Power Supply PCB 1 (PCB005)

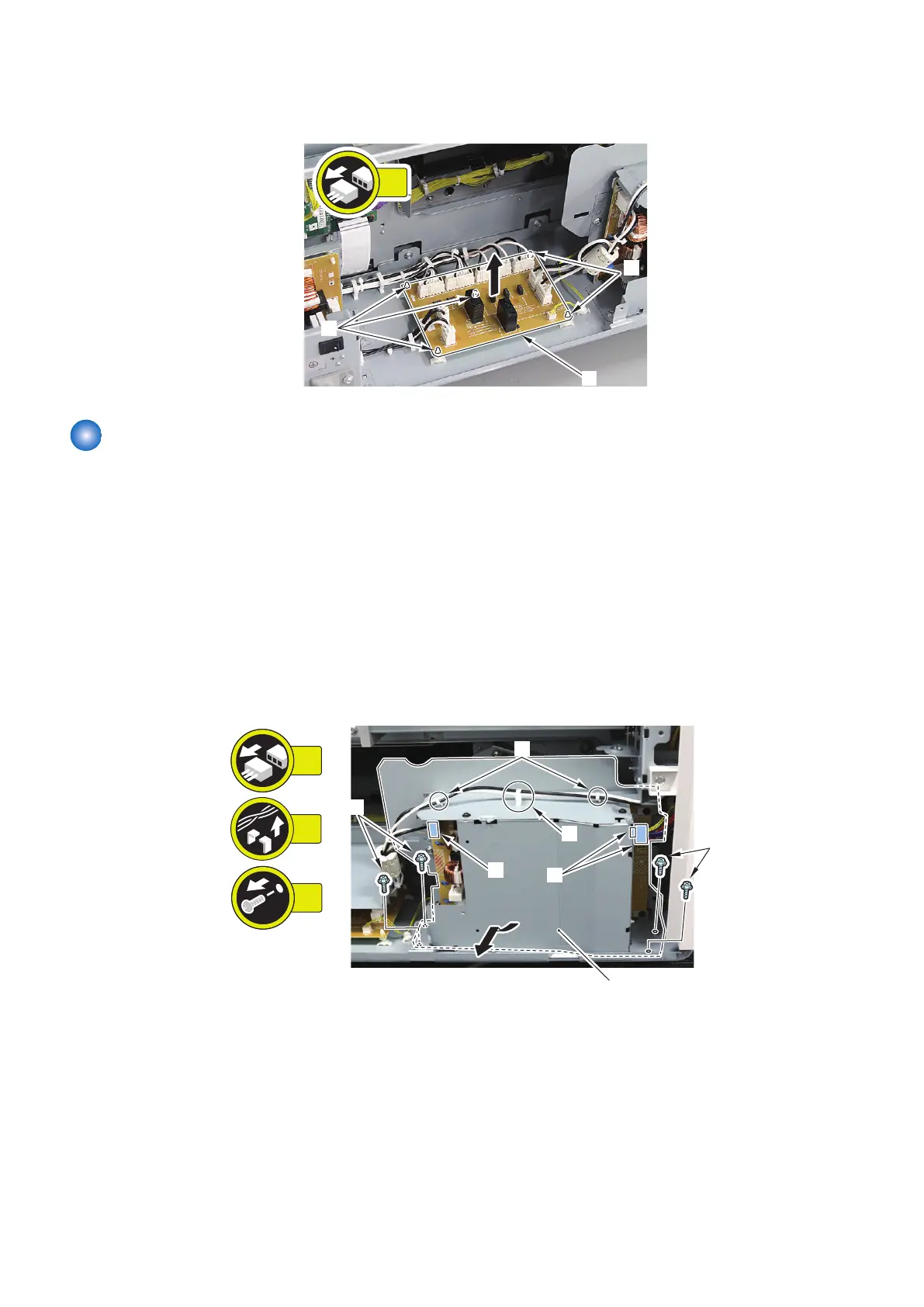

2. Remove the AC Distributor PCB [1].
• 10 Connectors
• 5 Locking Supports [2]
10x
[2]
[2]
[1]
Removing the DC Power Supply PCB 1 (PCB005)
■ Preparation
1. Remove the Deck Rear Middle Cover.“Removing the Deck Rear Middle Cover” on page 79
2. Remove the Deck Rear Lower Cover.“Removing the Deck Rear Lower Cover” on page 79
■ Procedure
1. Remove the Power Supply Unit 1 [1].
• 3 Connectors [2]
• 1 Wire Saddle [3]
• 2 Reuse Bands [4]
• 4 Screws [5]
[3]
[1]
[5]
[5]
[2]
[2]
[4]
4x
3x
3x
4. Parts Replacement and Cleaning
134
