Canon E1 - Main Units; Removing the Pickup Unit

Main Units

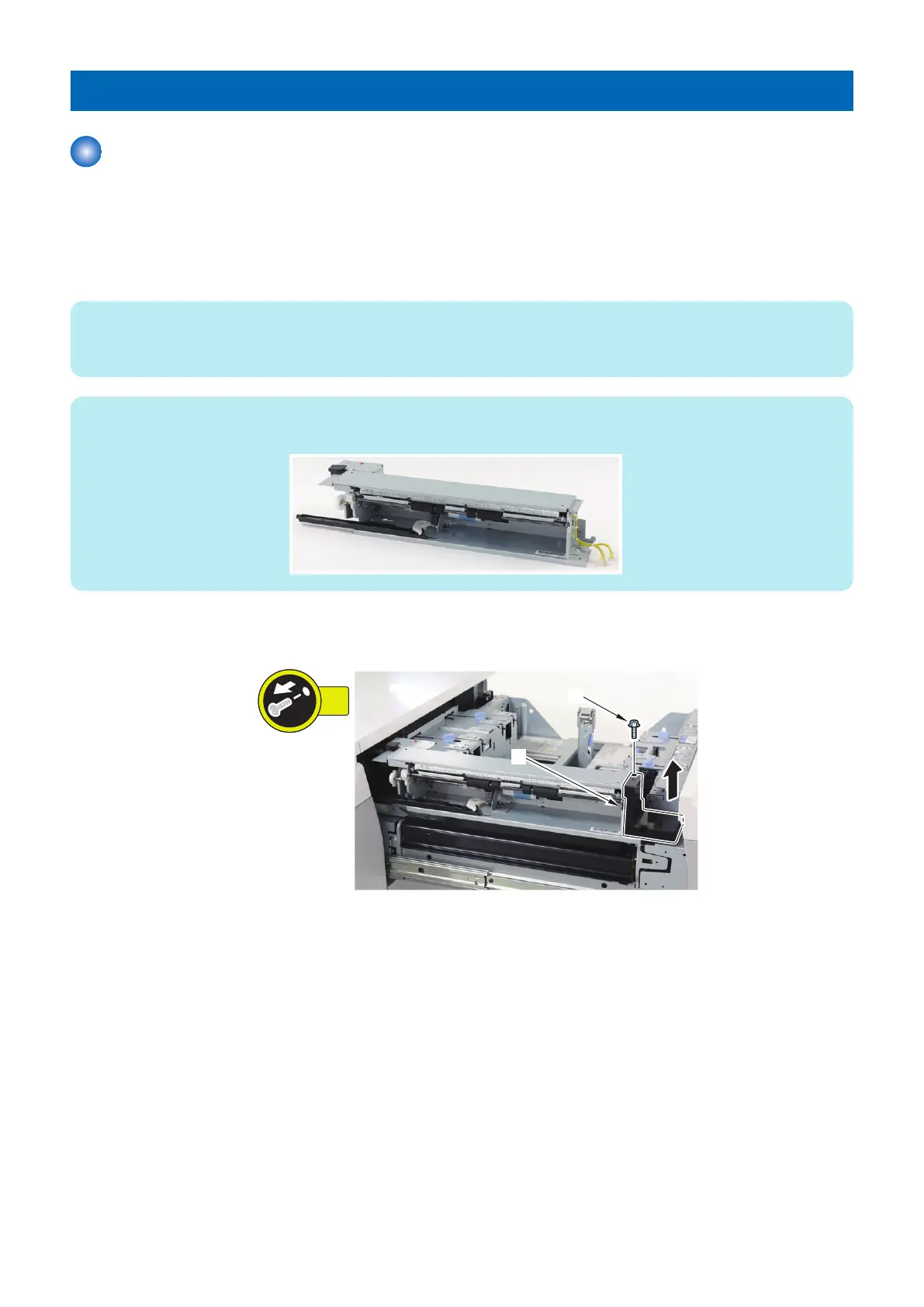

Removing the Pickup Unit
■ Preparation
1. Release the lock to open the target Deck. “Releasing the Deck” on page 77
■ Procedure
NOTE:
The removal procedure of the Pickup Unit from the upper deck is described below. The procedure of the middle and lower decks
is the same.
NOTE:
An image of removing of Pickup Unit
1. Remove the Connector Cover [1].
• 1 Screw [2]
[1]
[2]
1x
