No. Part Name No. Part Name
M103 Upper Deck Pickup Motor M409 Rear Alignment Plate Motor
M104 Upper Deck Pull-out Motor SOL007 Escape Flapper Solenoid
M201 Middle Deck Lifter Motor SOL101 Upper Deck Pickup Solenoid
M202 Middle Deck Swing Motor SOL102 Upper Deck Open/Close Solenoid
M203 Middle Deck Pickup Motor SOL201 Middle Deck Pickup Solenoid
M204 Middle Deck Pull-out Motor SOL202 Middle Deck Open/Close Solenoid
M301 Lower Deck Lifter Motor SOL301 Lower Deck Pickup Solenoid
M302 Lower Deck Swing Motor SOL302 Lower Deck Open/Close Solenoid

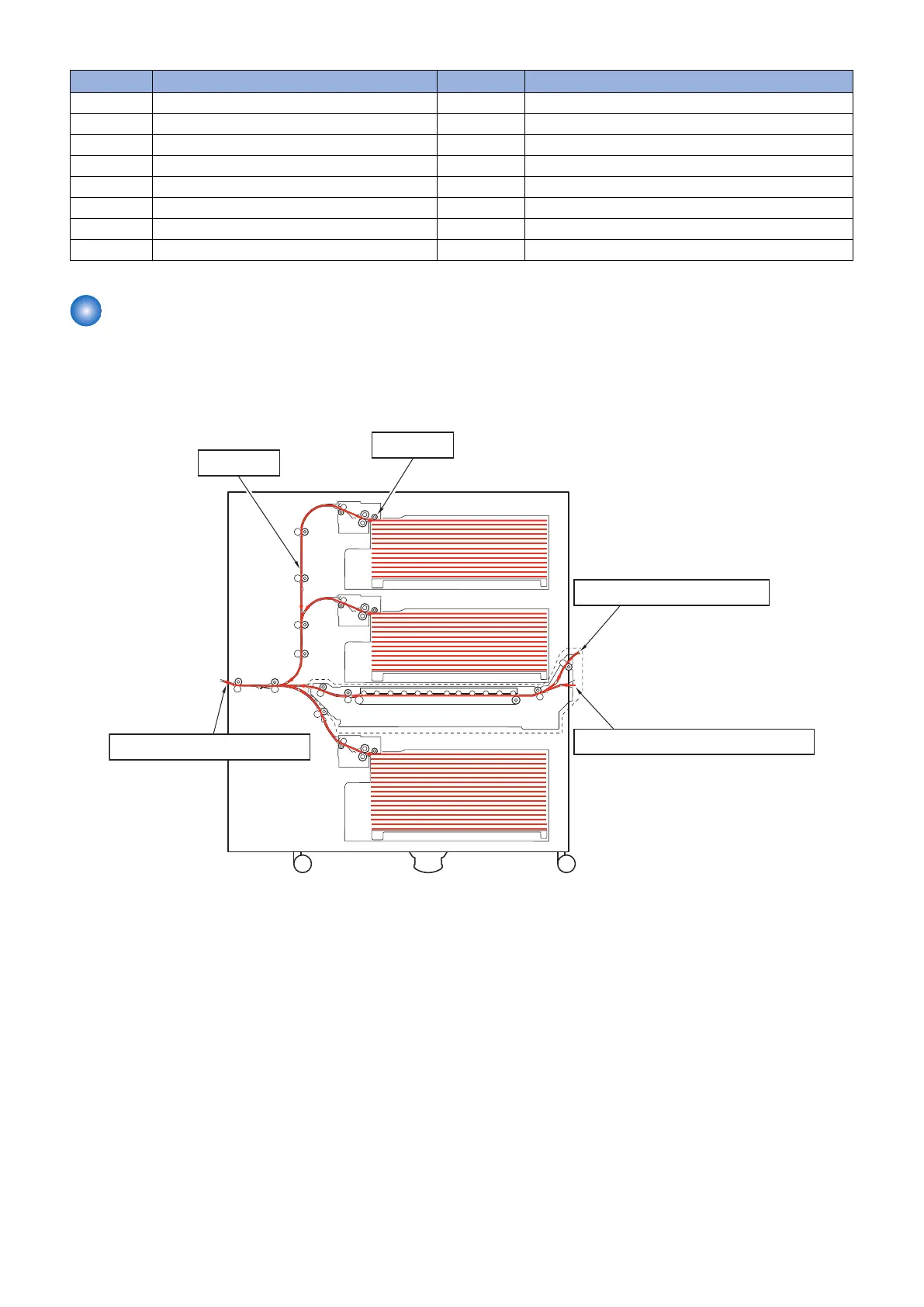

Basic Operation Outline
This equipment feeds paper to the Host Machine.
The unit configuration and pickup operation of the upper, middle, and lower decks are the same.
The paper picked up from each deck is fed to the host machine via the vertical and horizontal paths.
Paper picked up from the Stack Bypass or the connect deck is fed via the Through Path Unit to the Host Machine.
Paper pickup
Paper feed
Paper delivery to the host machine
Feeding from the
Stack Bypass
Feeding from the
connected Paper Deck
