Canon E1 - Solenoids; Parts Replacement and Cleaning

No. Part Name Main Unit Reference
M302 Lower Deck Swing Motor Deck Unit “Removing the Deck Swing Motor (M102/202/302)” on
page 111
M303 Lower Deck Pickup Motor - “Removing the Deck Pickup Motor (M103/203/303)” on
page 107
M304 Lower Deck Pull-out Motor - “Removing the Deck Pull-out Motor (M104/204/304)” on
page 108
M401 Through Path Inlet Motor 2 Through Path Unit -
M402 Through Path Feed Motor Through Path Unit “Removing the Through Path Feed Motor (M402)” on
page 115
M403 Through Path Outlet Motor 1 Through Path Unit -
M404 Through Path Outlet Motor 2 Through Path Unit -
M405 Through path Disengagement Motor 1 Through Path Unit -
M406 Through path Disengagement Motor 2 Through Path Unit -
M407 Through Path Inlet Motor 1 Through Path Unit -
M408 Front Alignment Plate Motor Through Path Unit “Removing the Front Alignment Plate Motor (M408)” on
page 116
M409 Rear Alignment Plate Motor Through Path Unit “Removing the Rear Alignment Plate Motor (M409)” on
page 117

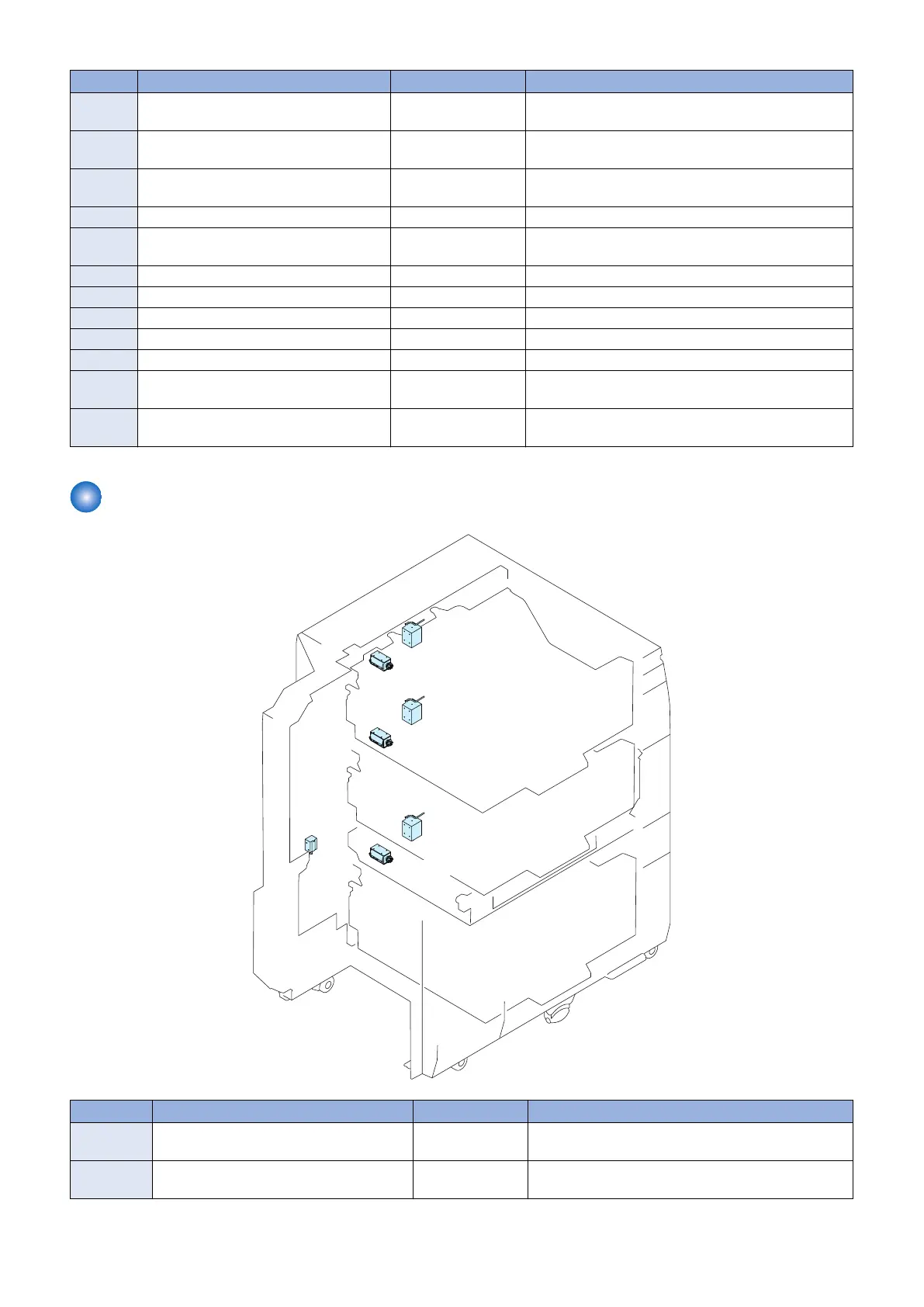

Solenoids
SOL102
SOL202
SOL302
SOL101
SOL201
SOL301
SOL007
No. Part Name Main Unit Reference
SOL007 Escape Flapper Solenoid Feed Unit “Removing the Escape Flapper Solenoid (SOL007)” on
page 122
SOL101 Upper Deck Pickup Solenoid Pickup Unit “Removing the Deck Pickup Solenoid
(SOL101/201/301)” on page 120
4. Parts Replacement and Cleaning
71
