Canon E1 - Cross Section

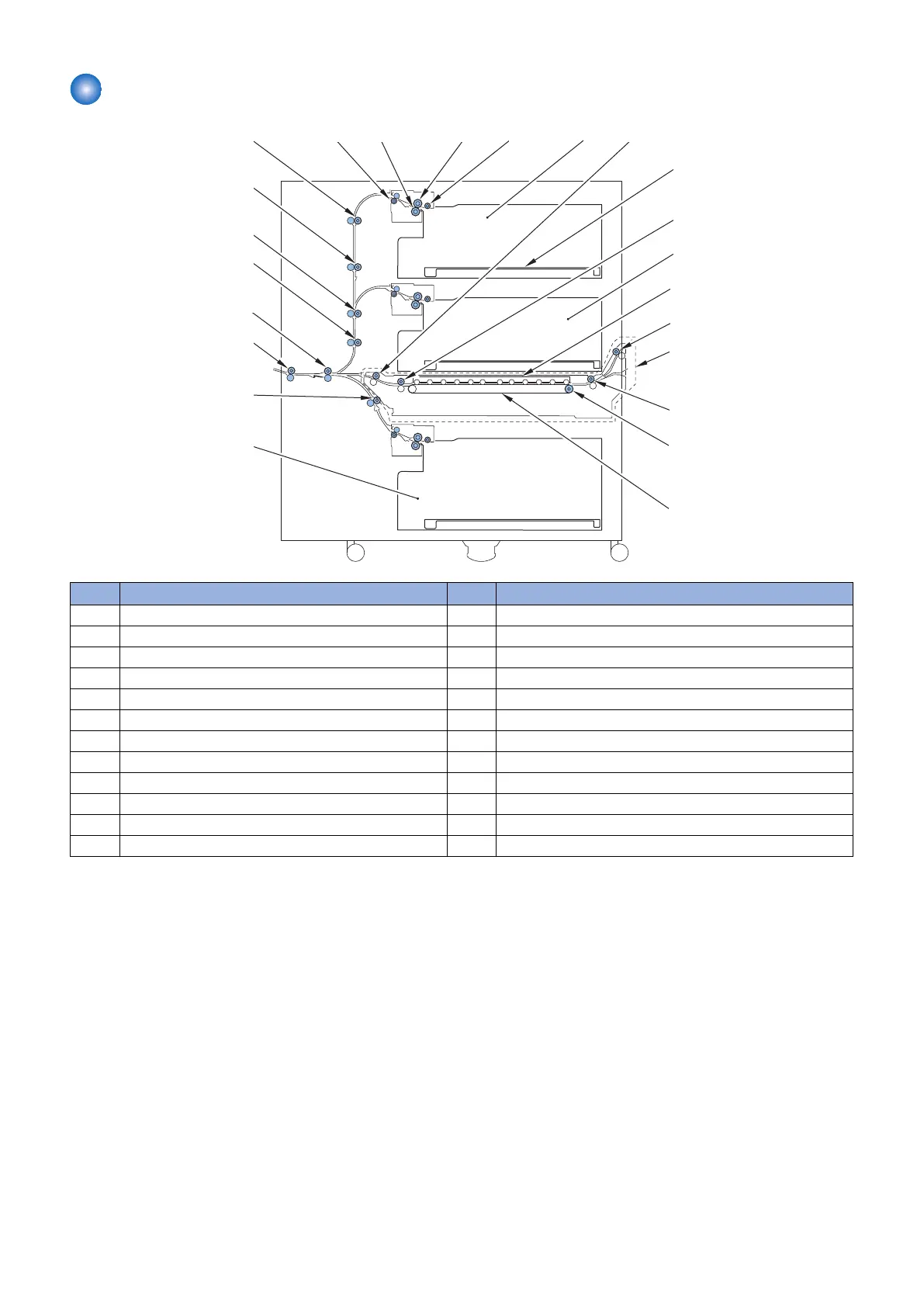

Cross Section
[5]
[2]
[3]
[4]
[1]
[7]
[18]
[19]
[20]
[21]
[22]
[23]
[6]
[8]
[9]
[10]
[11]
[12]
[13]
[14]
[15]
[16]
[17]
No. Part Name No. Part Name
[1] Upper/Middle/Lower Deck Pull-out Roller [13] Connect Deck Inlet Roller
[2] Upper/Middle/Lower Deck Separation Roller [14] Feed Belt Drive Roller
[3] Upper/Middle/Lower Deck Pickup/Feed Roller [15] Feed Belt
[4] Upper/Middle/Lower Deck Pickup Roller [16] Lower Deck
[5] Upper Deck [17] Lower Path Feed Roller
[6] Through Path Outlet Roller 2 [18] Horizontal Path Feed Roller 2
[7] Upper/Middle/Lower Lifter [19] Horizontal Path Feed Roller 1
[8] Through Path Outlet Roller 1 [20] Vertical Path Lower Feed Roller 2
[9] Middle Deck [21] Vertical Path Lower Feed Roller 1
[10] Front Alignment Plate/Rear Alignment Plate [22] Vertical Path Upper Feed Roller 2
[11] Multi Tray Inlet Roller [23] Vertical Path Upper Feed Roller 1
[12] Through Path Unit (Option)
1. Product Overview
10
