No. Part Name Main Unit Reference
FAN302 Lower Deck Flotation Fan 2 Deck Unit “Removing the Deck Flotation Fan 2 (FAN102/202/302)” on
page 127
FAN401 Through Path Cooling Fan 1 Through Path Unit “Removing the Through Path Cooling Fan 1 (FAN401)” on
page 128
FAN402 Through Path Cooling Fan 2 Through Path Unit “Removing the Through Path Cooling Fan 2 (FAN402)” on
page 130

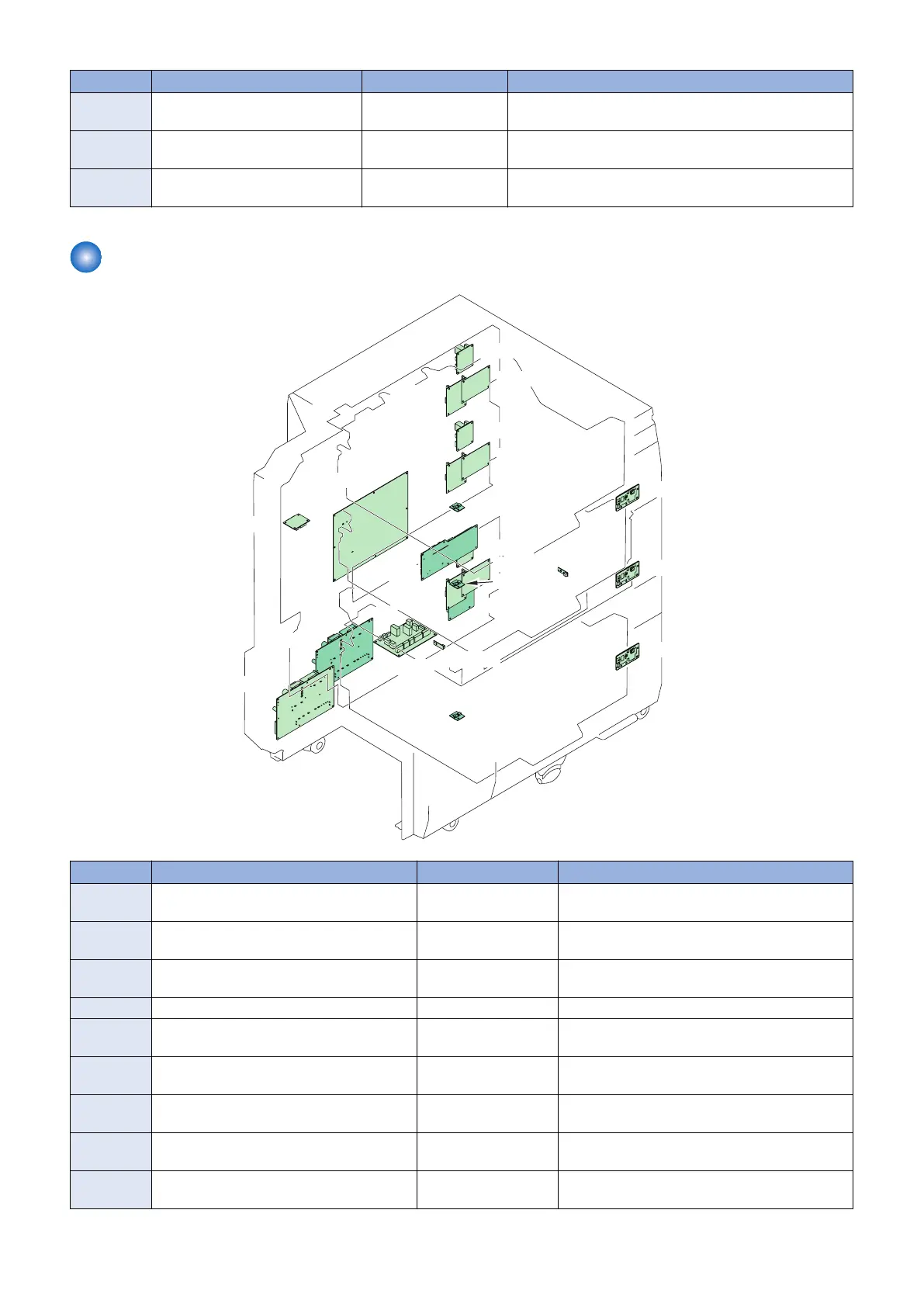

PCBs
PCB002
PCB101
PCB006
PCB003
PCB004
PCB005
PCB102
PCB301
PCB302
PCB202
PCB201
PCB303
PCB203
PCB103
PCB104
PCB304
PCB204
PCB001
PCB105
PCB305
PCB205
PCB403
PCB402
PCB401
No. Part Name Main Unit Reference
PCB001 Deck Controller PCB - “Removing the Deck Controller PCB (PCB001)” on
page 132
PCB002 AC Distributor PCB - “Removing the AC Distributor PCB (PCB002)” on
page 133
PCB003 Noise Filter PCB - “Removing the Noise Filter PCB (PCB003)” on
page 137
PCB004 CAN Transceiver PCB - -
PCB005 DC Power supply PCB 1 - “Removing the DC Power Supply PCB 1
(PCB005)” on page 134
PCB006 DC Power supply PCB 2 - “Removing the DC Power Supply PCB 2
(PCB006)” on page 135
PCB101 Upper Deck Size Detection PCB Deck Unit “Removing the Deck Size Detection PCB
(PCB101/201/301)” on page 138
PCB102 Upper Deck Open Switch PCB - “Removing the Deck Open Switch PCB
(PCB102/202/302)” on page 142
PCB103 Upper Deck Air Heater PCB - “Removing the Deck Air Heater PCB
(PCB103/203/303)” on page 142
4. Parts Replacement and Cleaning
73
