Canon E1 - Removing the DC Power Supply PCB 2 (PCB006)

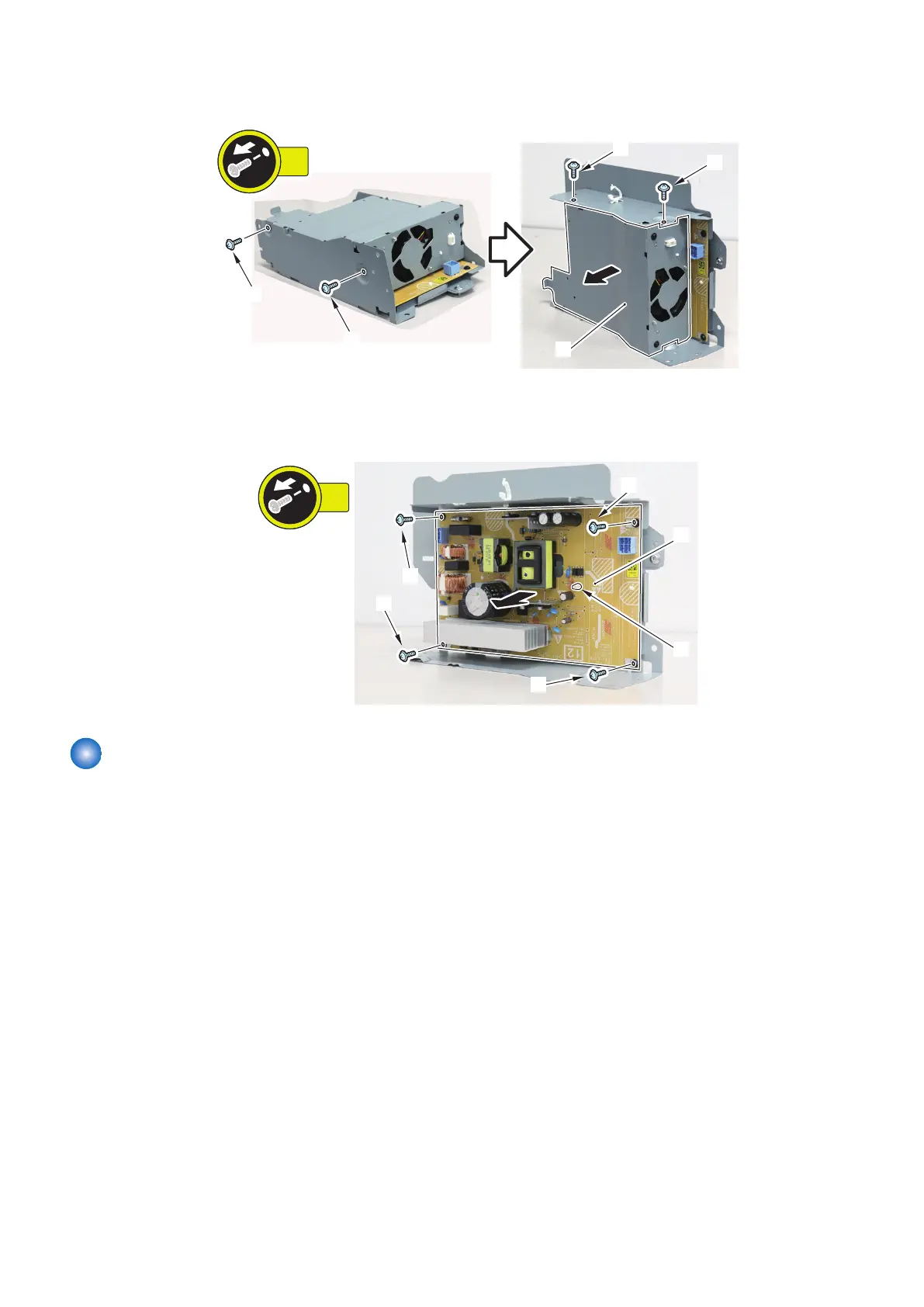

2. Remove the Power Supply PCB Cover [1].
• 4 Screws [2]
[2]
[2]
[1]
[2]
[2]
4x
3. Remove the DC Power Supply PCB 1 [1].
• 4 Screws [2]
• 1 Locking Support [3]
[1]
[3]
[2]
[2]
[2]
[2]
4x
Removing the DC Power Supply PCB 2 (PCB006)
■ Preparation
1. Remove the Deck Rear Upper Cover.“Removing the Deck Rear Upper Cover” on page 79
2. Remove the Deck Rear Middle Cover. “Removing the Deck Rear Middle Cover” on page 79
3. Remove the Deck Rear Lower Cover. “Removing the Deck Rear Lower Cover” on page 79
4. Remove the Deck Left Rear Cover.“Removing the Deck Left Rear Cover” on page 80
