■ Procedure

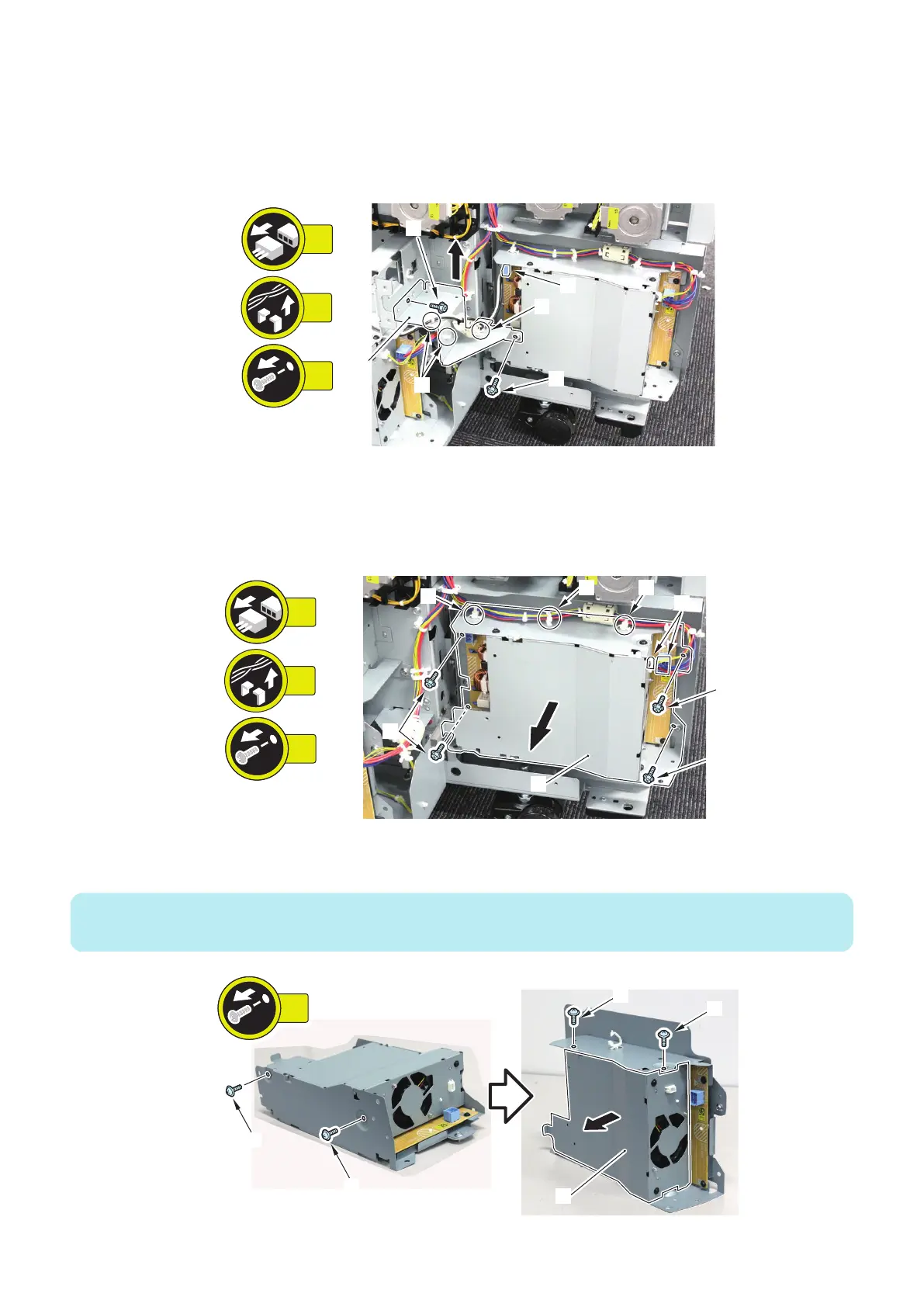

1. Remove the Support Plate [1].
• 1 Connector [2]
• 3 Reuse Bands [3]
• 2 Screws [4]
[1]
[2]
[4]
[4]
[3]
[3]
2x
3x
1x
2. Remove the Power Supply Unit 2 [1].
• 2 Connectors [2]
• 1 Wire Saddle [3]
• 2 Reuse Bands [4]
• 4 Screws [5]
[3]
[1]
[5]
[2]
[4]
[4]
[5]
[5]
4x
3x
2x
3. Remove the Power Supply PCB Cover [1].
• 4 Screws [2]
NOTE:
The shape of the Cover is different, but the procedure is the same.
[2]
[2]
[1]
[2]
[2]
4x
4. Parts Replacement and Cleaning
