Canon E1 - Removing the Deck Flotation Fan 2 (FAN102;202;302)

■ Procedure

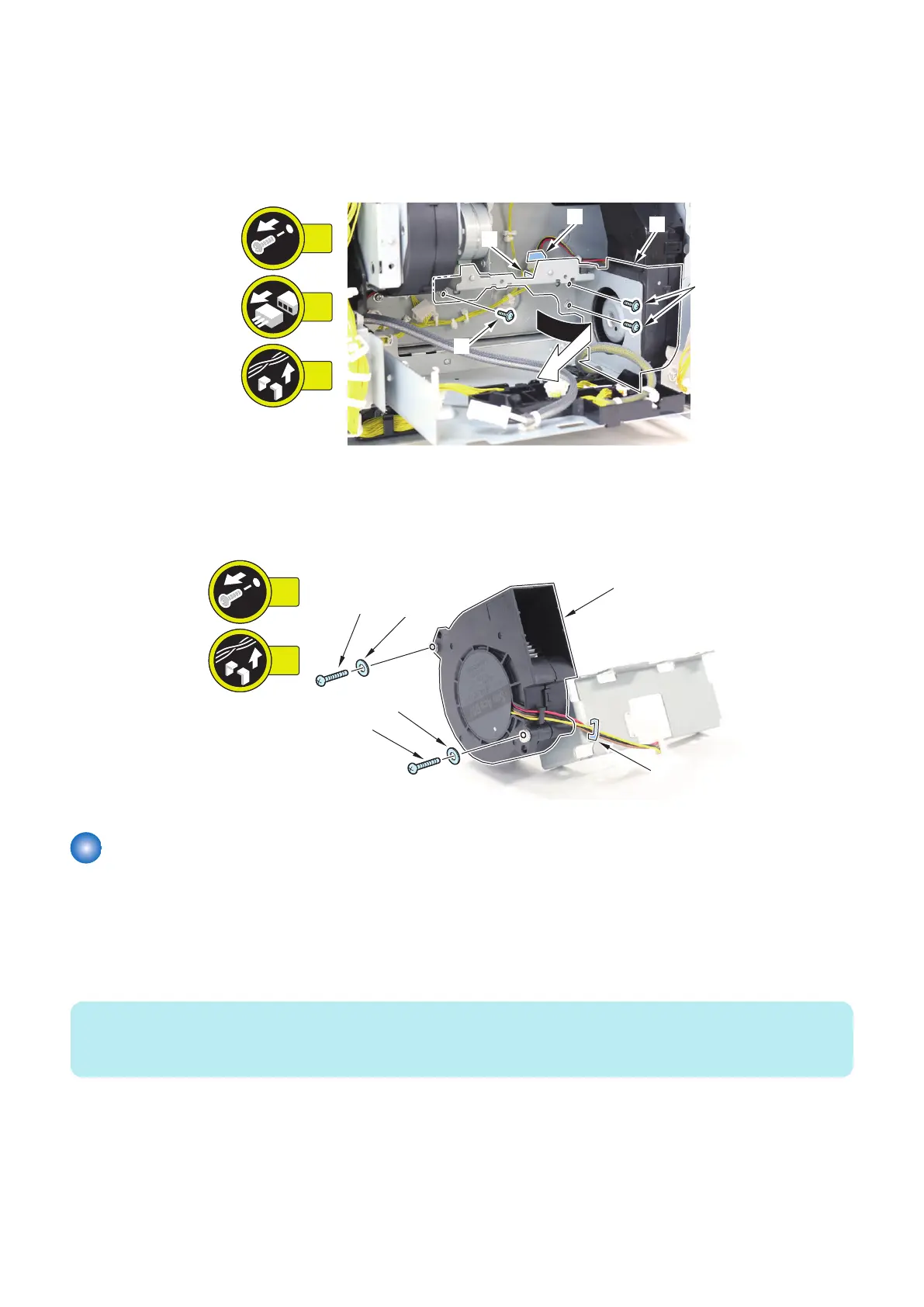

1. Remove the Deck Flotation Fan Unit [1].
• 3 Screws [2]
• 1 Connector [3]
• 1 Wire Saddle [4]
[1]
3x
1x
1x
[2]
[2]
[3]
[4]
2. Remove the Deck Flotation Fan 1 [1].
• 2 Screws [2]
• 2 Spring Washers [3]
• 1 Wire Saddle [4]
2x
1x
[1]
[2]
[3]
[2]
[3]
[4]
Removing the Deck Flotation Fan 2 (FAN102/202/302)
■ Preparation
1. Release the lock to open the target Deck.“Releasing the Deck” on page 77
2. Remove the Right Cover of the target Deck.“Removing the Deck Right Upper Cover” on page 83, “Removing the
Deck Right Middle Cover” on page 82, “Removing the Deck Right Lower Cover” on page 83
NOTE:
When installing the Secondary Multi-drawer Paper Deck, the Stack Bypass or the POD Deck Lite C/XL, remove the Rear Cover
of the target Deck.
3. Remove the Deck.“Removing the Deck Unit” on page 88
4. Remove the Deck Swing Motor Unit.“Removing the Deck Swing Motor (M102/202/302)” on page 111
