Canon E1 - Removing the through Path Outlet Unit

NOTE:

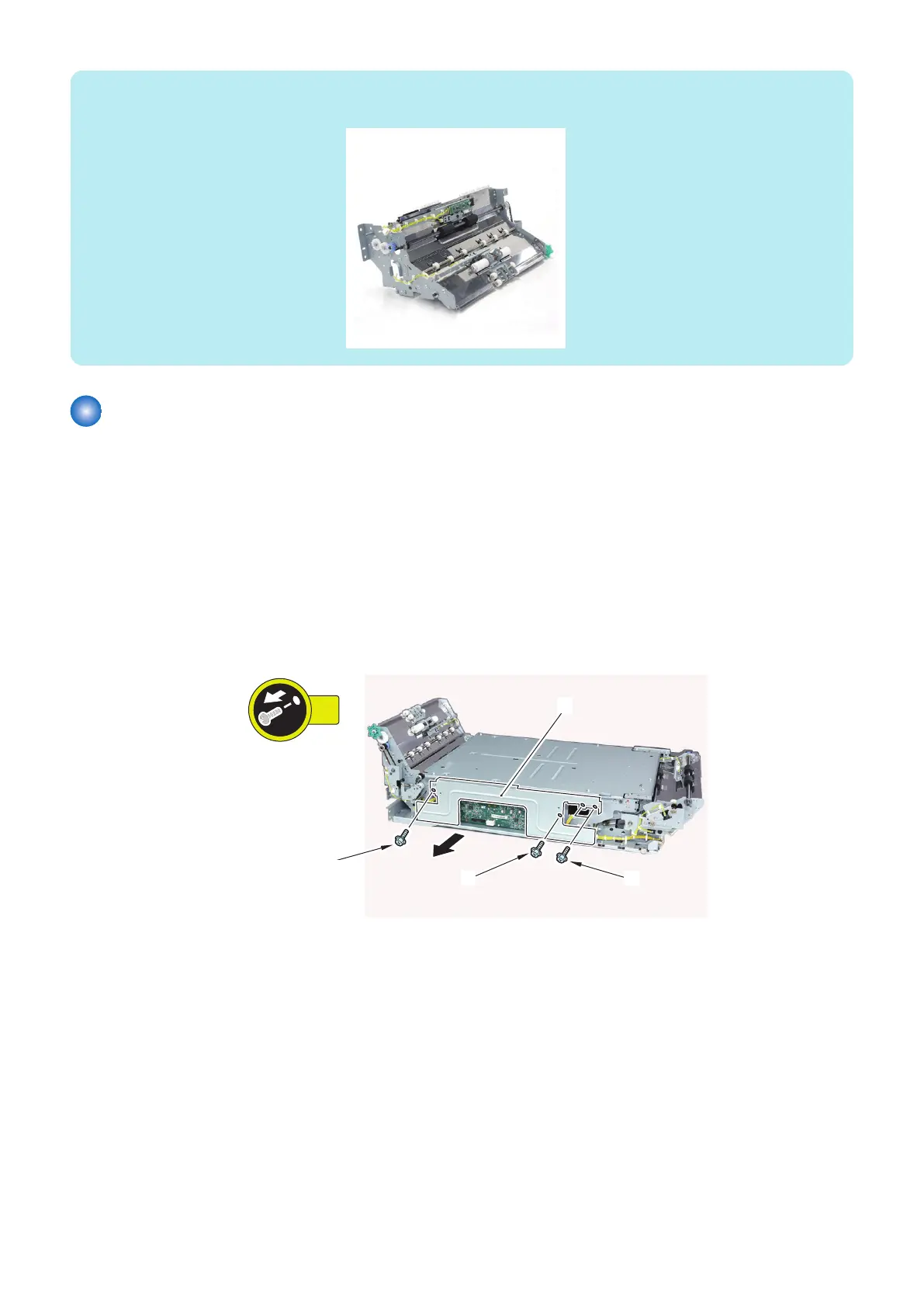

Place the Through Path Inlet Unit as shown in the figure.
Removing the Through Path Outlet Unit
■ Preparation
1. Remove the Right Connection Unit. “Removing the Right Connection Unit” on page 91
2. Remove the Deck Rear Middle Cover.“Removing the Deck Rear Middle Cover” on page 79
3. Remove the Through Path Unit. “Removing the Through Path Unit” on page 93
■ Procedure
1. Remove the PCB Cover [1].
• 4 Screws [2]
[1]
[2]
[2]
4x
[2]
4. Parts Replacement and Cleaning
98
