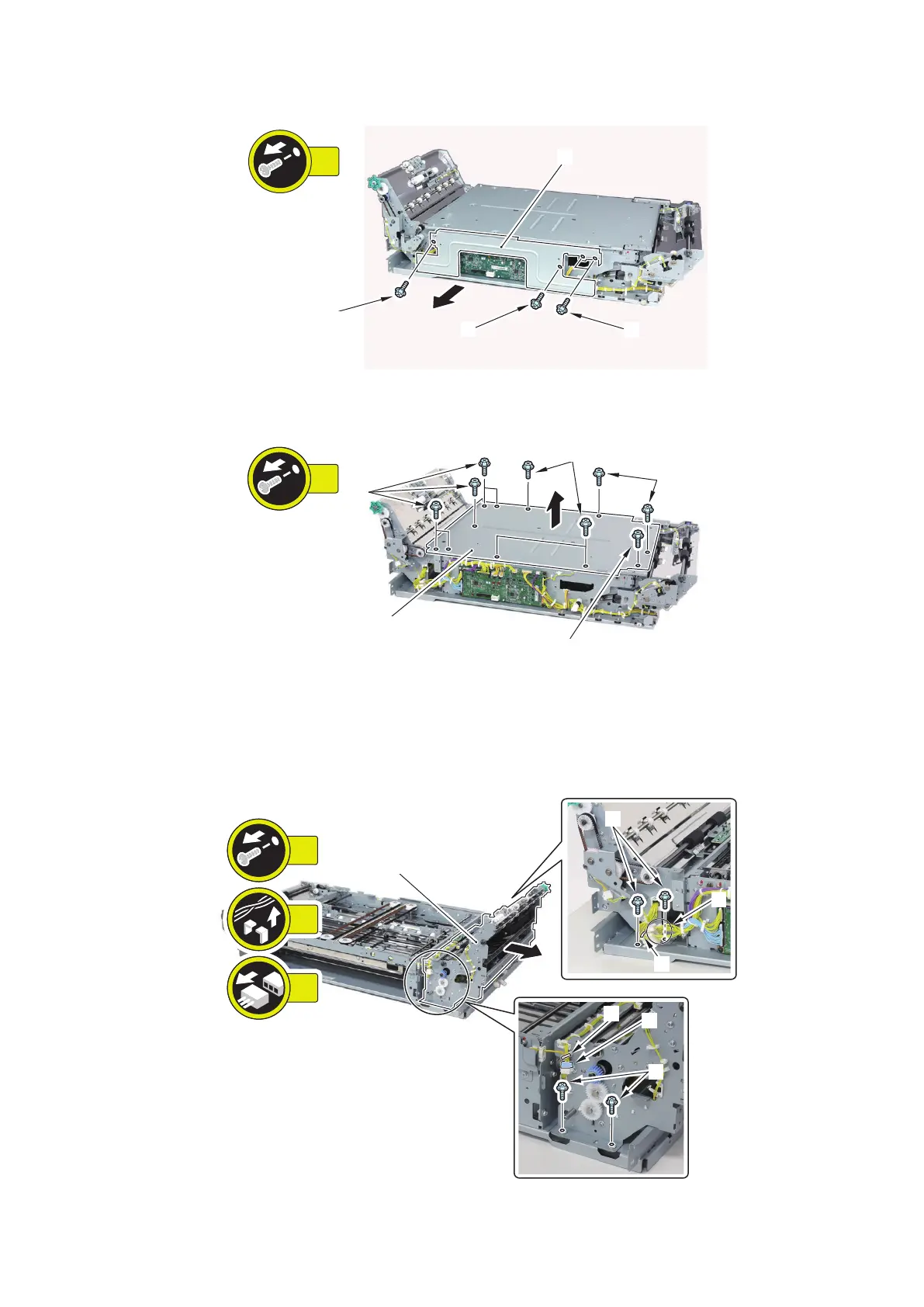

1. Remove the PCB Cover [1].
• 4 Screws [2]
[1]
[2]
[2]
4x
[2]
2. Remove the Top Cover [1].
• 11 Screws [2]
[1]
11x
[2]
[2]
[2]
[2]
3. Remove the Through Path Inlet Unit [1].
• 4 Screws [2]
• 2 Wire Saddles [3]
• 5 Connectors [4]
[1]
4x
2x
5x
[2]
[3]
[4]
[3]
[4]
[2]
4. Parts Replacement and Cleaning
