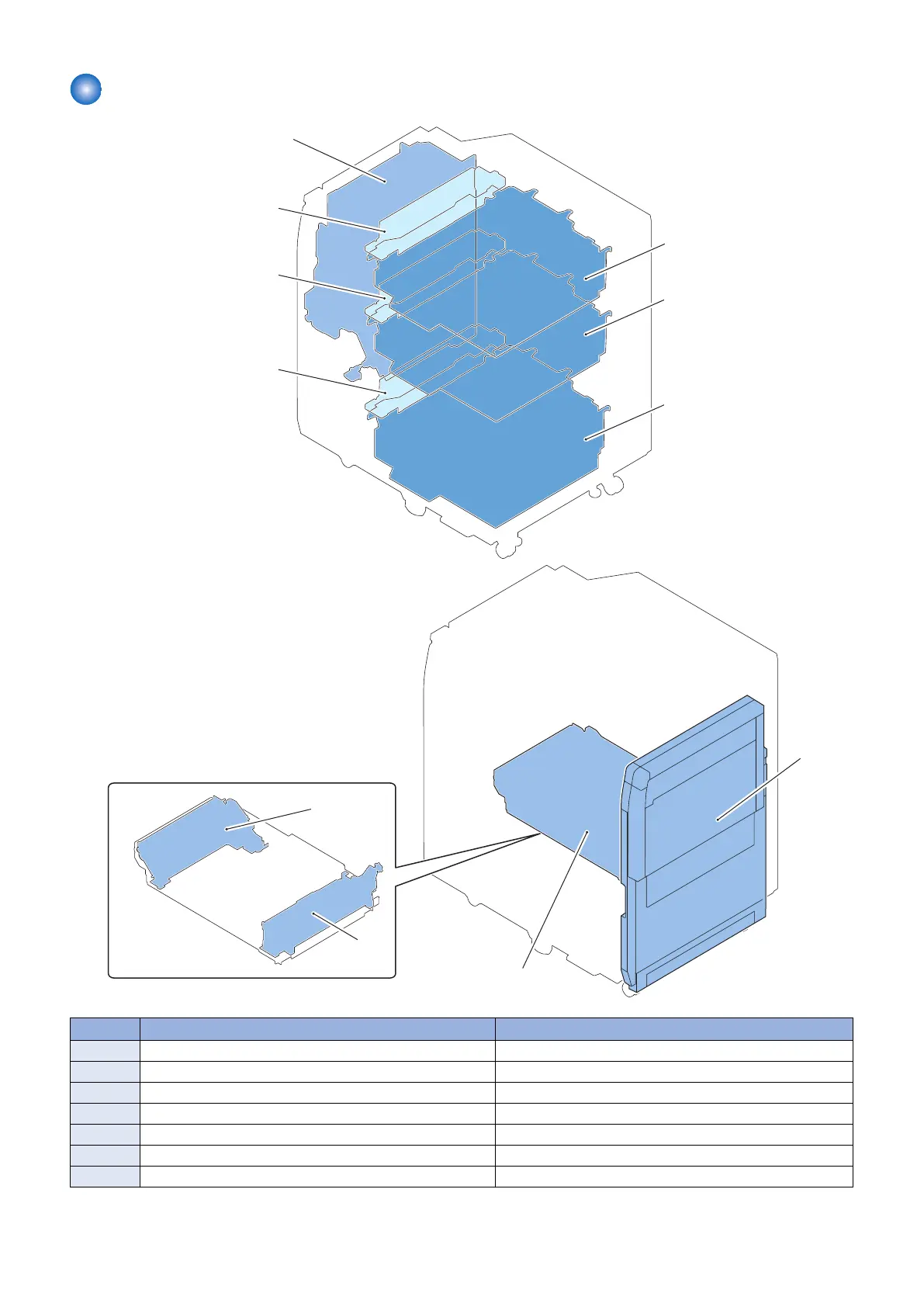

Main Units
[1]
[3]
[3]
[3]
[2]
[2]
[2]
[5]
[4]
[6]
[7]
No. Part Name Reference
[1] Feed Unit -
[2] Deck Unit “Removing the Deck Unit” on page 88
[3] Pickup Unit “Removing the Pickup Unit” on page 87
[4] Right Connection Unit (Option) “Removing the Right Connection Unit” on page 91
[5] Through Path Unit (Option) “Removing the Through Path Unit” on page 93
[6] Through Path Inlet Unit “Removing the Through Path Inlet Unit” on page 96
[7] Through Path Outlet Unit “Removing the Through Path Outlet Unit” on page 98
