Canon E1 - Removing the Deck Pull-Out Roller

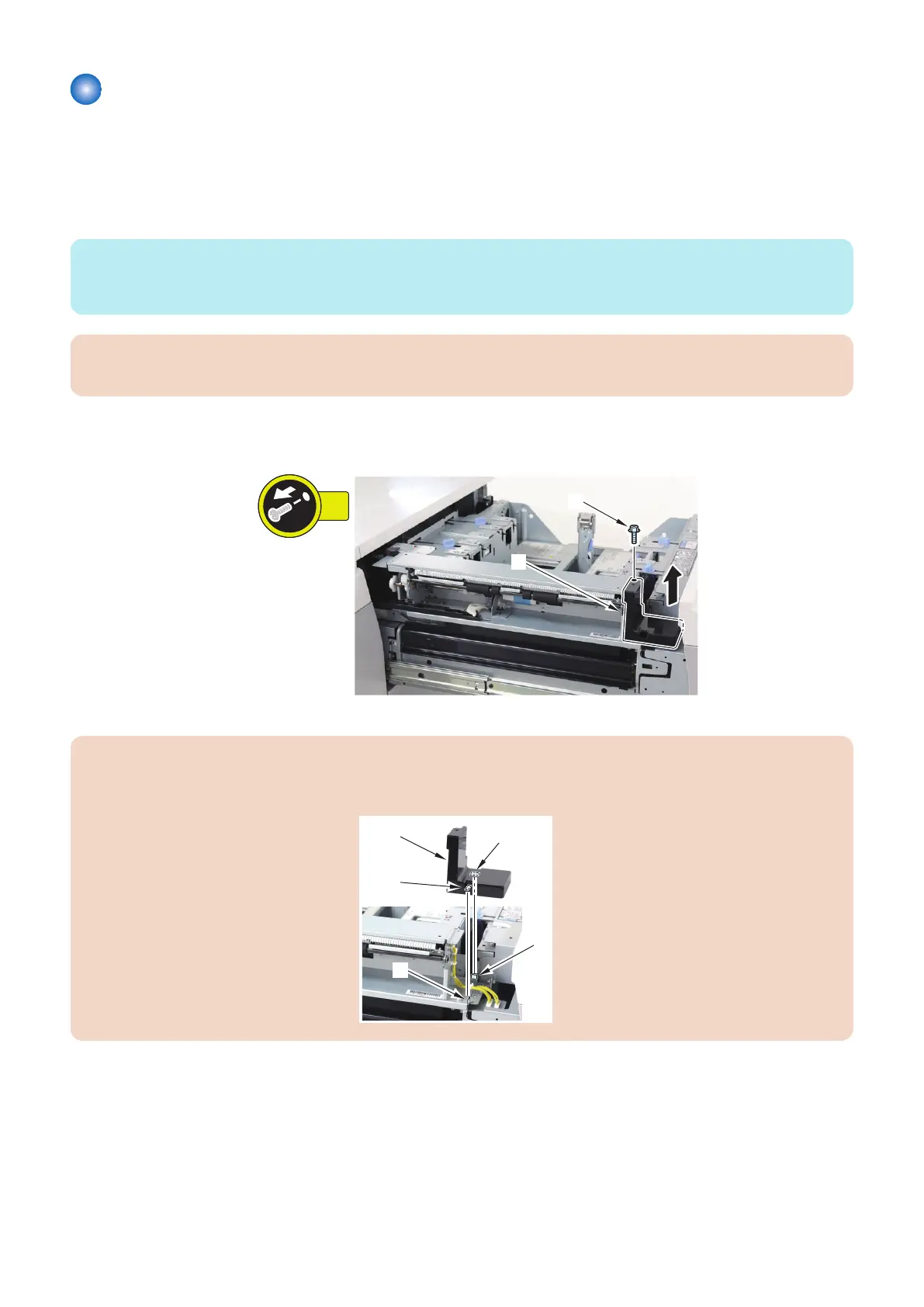

Removing the Deck Pull-out Roller
■ Preparation
1. Release the lock to open the target Deck. “Releasing the Deck” on page 77
■ Procedure
NOTE:
The removal procedure of the Deck Pull-out Roller from the upper deck is described below. The procedure of the middle and lower
decks is the same.
CAUTION:
Be sure not to touch the surface of the roller at disassembling/assembling.
1. Remove the Connector Cover [1].
• 1 Screw [2]
[1]
[2]
1x
CAUTION:
When installing the Connector Cover [1], align the 2 holes [2] of the Connector Cover with the 2 protrusions [3] of the Pickup
Unit.
[1] [2]
[2]
[3]
[3]
4. Parts Replacement and Cleaning
163
