Canon E1 - Page 129

■ Procedure

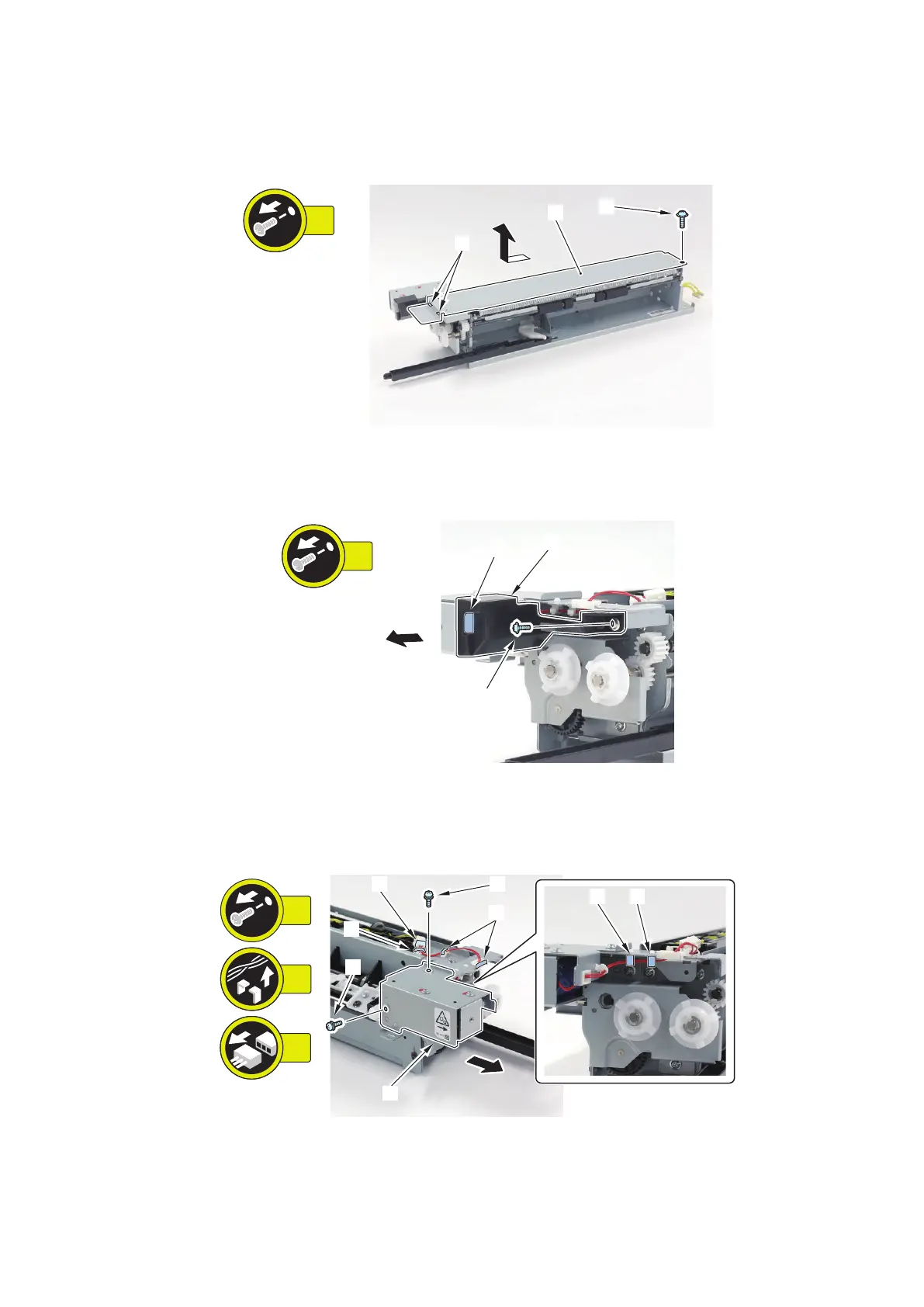

1. Remove the Pickup Unit Cover [1].
• 1 Screw [2]
• 2 Hooks [3]
1x
[1]
[2]
[3]
2. Remove the Cable Cover [1].
• 1 Screw [2]
• 1 Boss [3]
1x
[1]
[2]
[3]
3. Remove the Deck Pickup Solenoid Unit [1].
• 2 Screws [2]
• 5 Wire Saddles [3]
• 1 Connector [4]
2x
[1]
[2]
[2]
[3]
[4]
[3]
[3]
[3]
5x
1x
4. Check the scale [1] of the Deck Pickup Solenoid and take note of the installation position.
