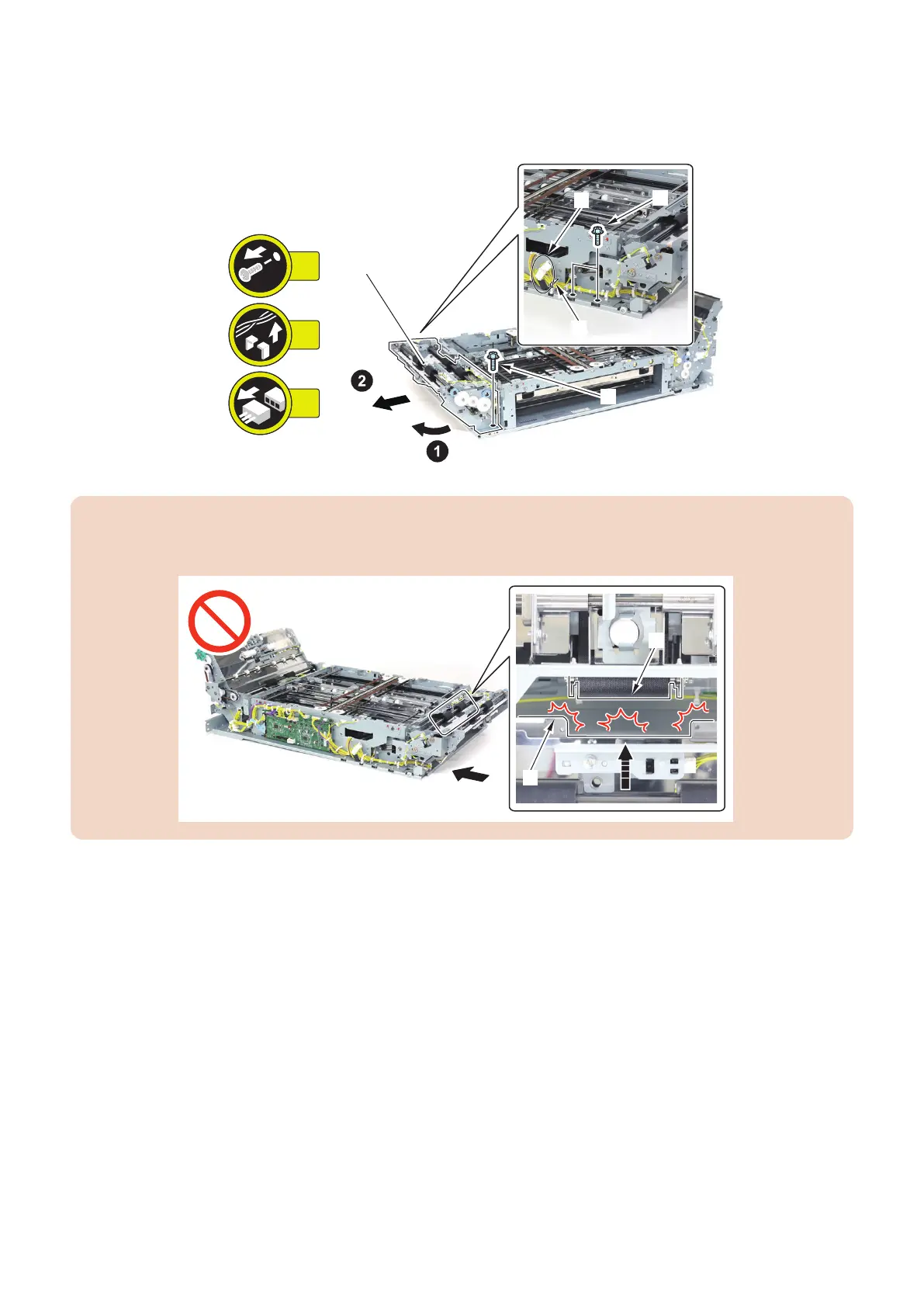

5. Remove the Through Path Outlet Unit [1].
• 3 Screws [2]
• 1 Wire Saddle [3]
• 4 Connectors [4]
3x
[1]
[2]
[3]
[2]
[4]
1x
4x
CAUTION:
When installing the Through Path Outlet Unit, do not hit the Paper Guide [A] of the Through Path Outlet Unit with the Feed
Belt [B] of the Through Path Unit.
[A]
[B]
